Quadrant 1/8 STEEL PLATE - Replaces Southbend 1195164
Quadrant 1/8 STEEL PLATE - Replaces Southbend 1195164
- Height (in.): 4.3125
- Material: 1/8 STEEL PLATE
- Width (in.): 3
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
This Quadrant replaces Southbend 1195164. Matching the original part number is the surest way to keep the assembly working as designed.
It also cross-references 2 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.

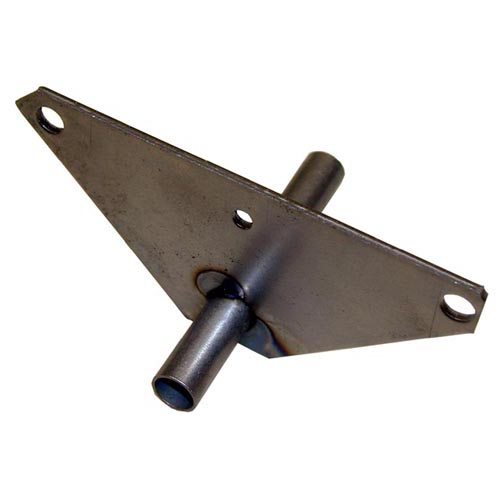

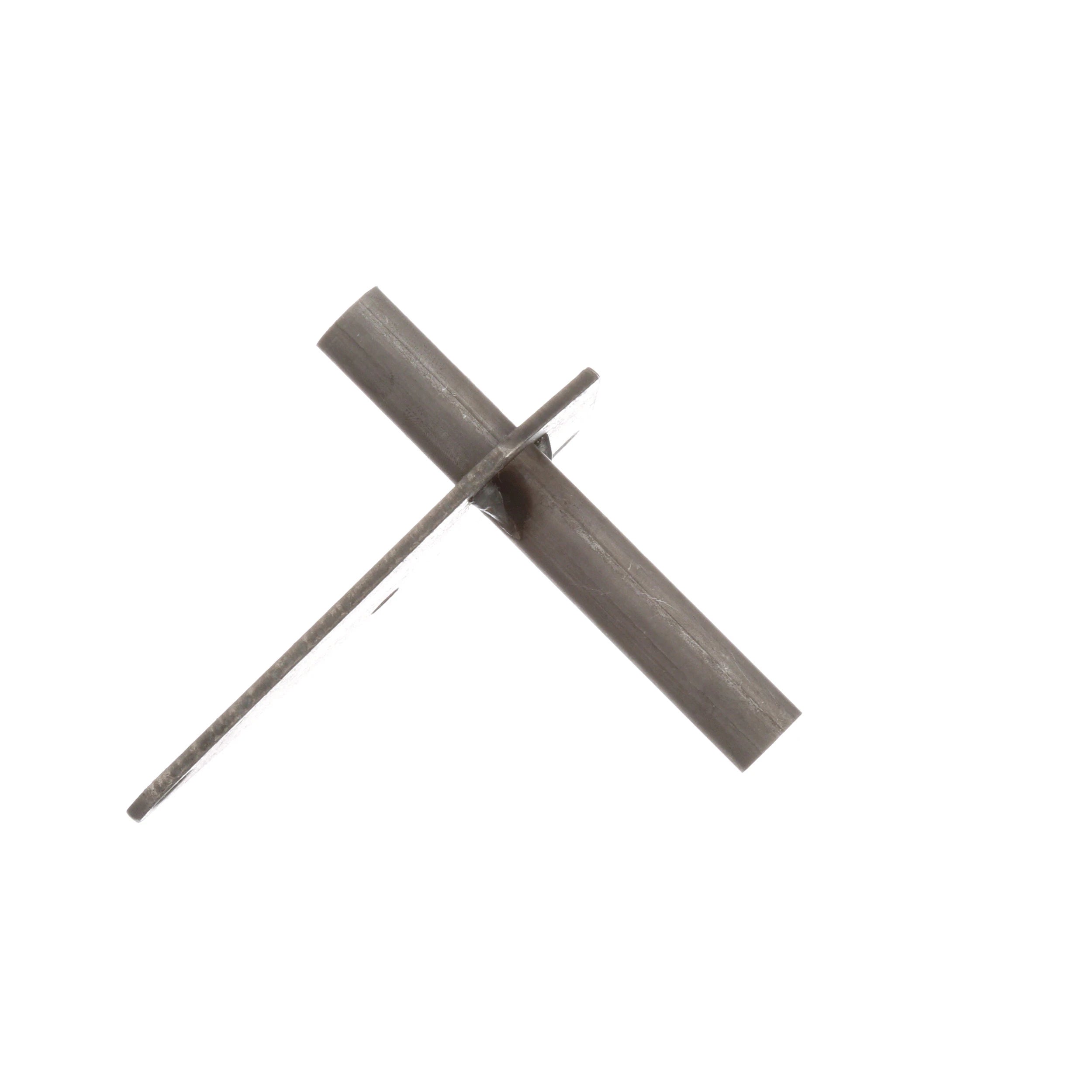

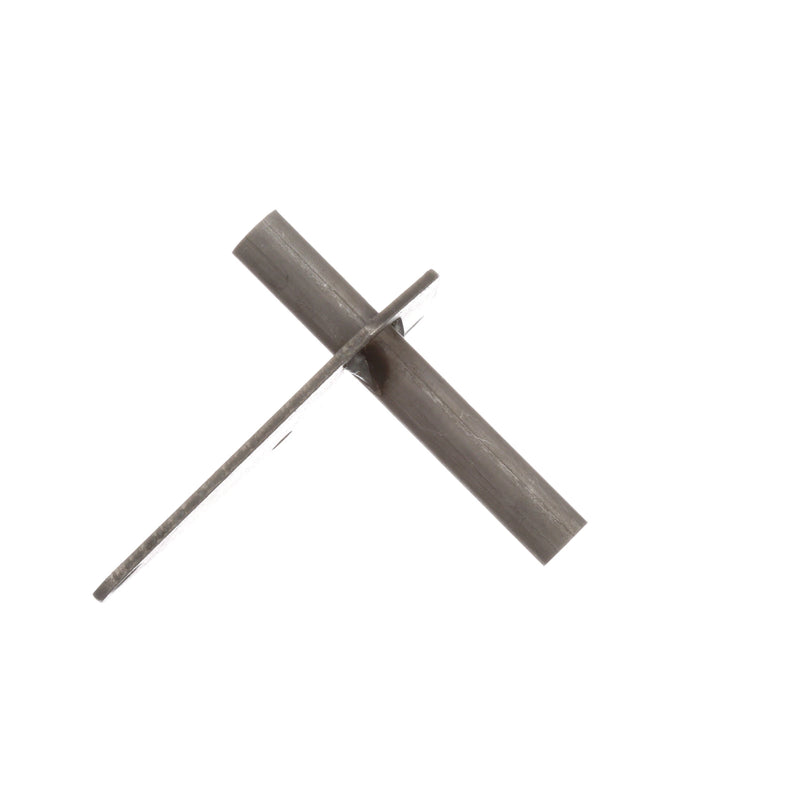

Quadrant Assembly, 4-5/16" Hole Ctrs, 1/2" OD Tube 1-1/4" Out One Side And 2-1/4" Out The Other Side, 1/8" Steel Plate Overall Tube Length = 3 5/8" Tube 1/2" OD, .425" ID Southbend Oven Series: 324,336,348,360,424,436,448,460.
Specifications
| Height (in) | 4.3125 |
| Material | 1/8 STEEL PLATE |
| Width (in) | 3 |
Cross-reference
- Southbend: 1180859, 1195164
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
