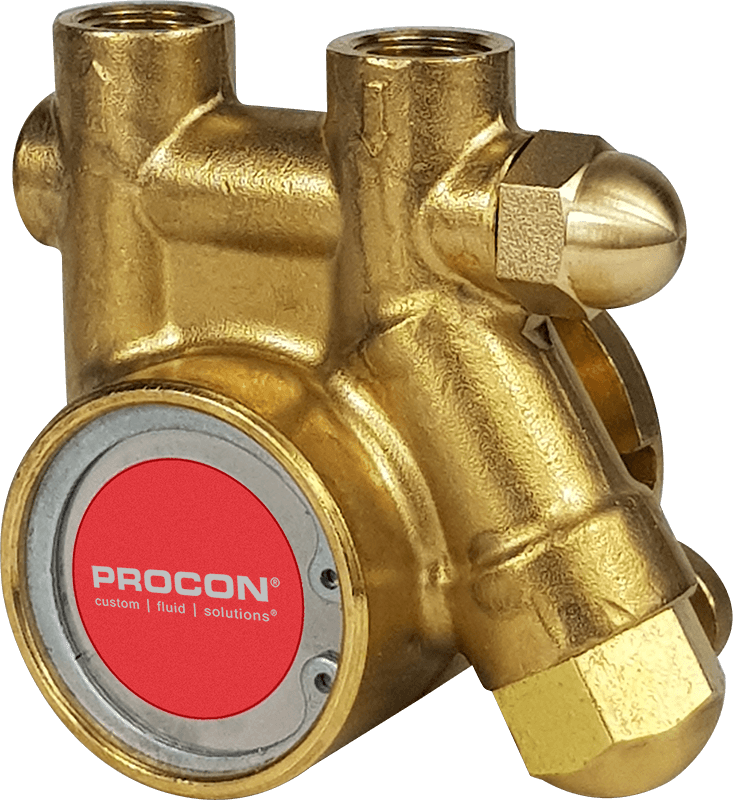

Procon® 101E100F11BA Series 1 Rotary Vane Fluid Pump w/ Strainer - 100GPH (300LPH), EPDM/Nitrile, Standard-Non External adjust
$8499
Procon® 101E100F11BA Series 1 Rotary Vane Fluid Pump w/ Strainer - 100GPH (300LPH), EPDM/Nitrile, Standard-Non External adjust
On Sale
Procon® 101E100F11BA Series 1 Rotary Vane Fluid Pump w/ Strainer - 100GPH (300LPH), EPDM/Nitrile, Standard-Non External adjust
In stock
$8499$118.04Save $33.05
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve Standard-Non External adjust configuration
- Integral Strainer for debris removal from pumping fluid
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with EPDM/Nitrile Elastomers
- Flowrate of 100GPH (300LPH)*
- Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
- Maximum Mechanical Horsepower required 0.42hp (313W)¹
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Procon® 101E100F11BA Series 1 pump, offering a 100 GPH flow rate and equipped with a strainer, ensures efficient and clean fluid transfer. Its high-quality construction makes it a reliable choice for demanding applications.
| Technical Information | Details |
|---|---|
| Material | Brass |
| Port Hole | NPT 3/8" |
| Integrated Strainer | Yes |
| Mounting Type | Bolt-On |
| Drive Configuration | Single Flat |
| Flowrate (GPH) | 100GPH |
| Flowrate (LPH) | 300LPH |
| Elastomer | EPDM/Nitrile |
| Seal Type | Non Balances Ceramic/Carbon |
| Rotation | Clockwise |
| Internal Component Material | Carbon |
| Valve Type | Solid- Ultem |
| Valve Configuration | Standard-Non External adjust |
| Product Weight | 2.7lb (1.23Kg) |
| Maximum Mechanical Power Requirement | 0.42hp (313W) |
| Maximum Operating Pressure | 150psi |
| Relief Valve Set Pressure Range | 151 to 250psi (10 to 17.5 BAR) |
| Max Static Pressure PSI | 100psi |
| Min Operation Fluid Temperature | -4°F |
| Max Operation Fluid Temperature | 160°F |
| Max Fluid Viscosity | 100cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250psi |
| Min Speed | 1000RPM |
| Max Speed | 2400RPM |
| Dry Suction Lift | 3.3ft |
| Wet Suction Lift | 6.6ft |
| Fluid Acidity | 6pH |
| Maximum Total Dissolved Solids (TDS) | 5000ppm |
