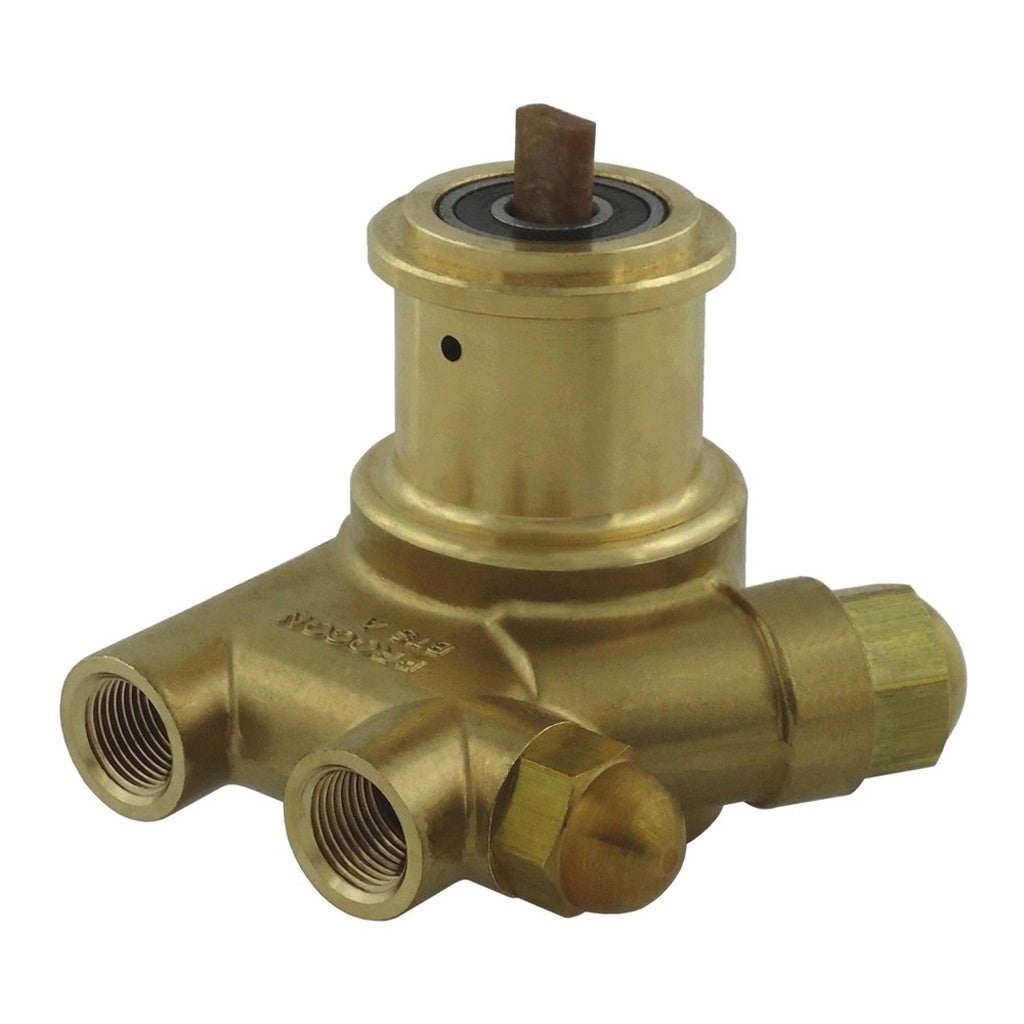

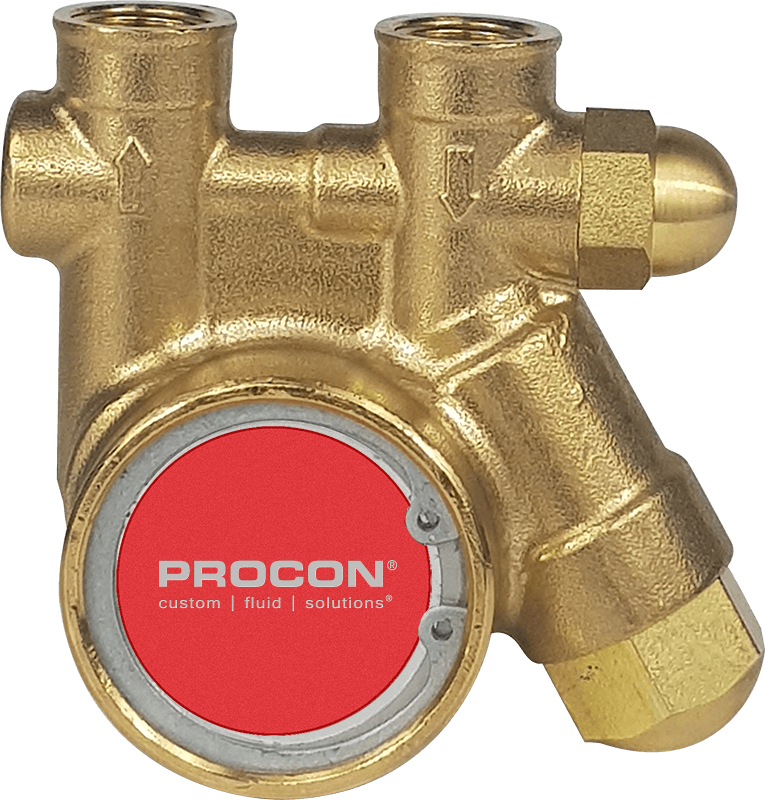

Procon® 101C100F11BC Series 1 Rotary Vane Fluid Pump w/ Strainer - 100GPH (300LPH), EPDM/Nitrile, Standard-Non External adjust

More from: Procon
In stock
Item: 09H02176
(0)
Regular price $94.43
Found a lower price? Request Price Match

Quick Overview

  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Standard-Non External adjust configuration
  • Integral Strainer for debris removal from pumping fluid
  • Brass Housing Material
  • NPT 3/8" Inlet and Outlet Connections
  • Constructed with EPDM/Nitrile Elastomers
  • Flowrate of 100GPH (300LPH)*
  • Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
  • Maximum Mechanical Horsepower required 0.42hp (313W)¹

* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz

¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)

Product Overview


The Series 1 Procon® 101C100F11BC pump delivers 100 GPH and comes with a strainer, providing clean and efficient fluid transfer. Its compact and robust design ensures reliability in systems where maintaining fluid purity is essential.

Technical Information Details
Material Brass
Port Hole NPT 3/8"
Integrated Strainer Yes
Mounting Type Clamp-On
Drive Configuration Slotted With Plastic Coupling 1143-2
Flowrate (GPH) 100GPH
Flowrate (LPH) 300LPH
Elastomer EPDM/Nitrile
Seal Type Non Balances Ceramic/Carbon
Rotation Clockwise
Internal Component Material Carbon
Valve Type Solid- Ultem
Valve Configuration Standard-Non External adjust
Product Weight 2.43lb (1.1Kg)
Operating Range Details
Maximum Mechanical Power Requirement 0.42hp (313W)
Maximum Operating Pressure 60psi
Relief Valve Set Pressure Range 60 to 99psi (4 to 7 BAR)
Max Static Pressure PSI 100psi
Min Operation Fluid Temperature -4°F
Max Operation Fluid Temperature 160°F
Max Fluid Viscosity 100cP
Max Sound Level 60dB(a)
Max Discharge Pressure 250psi
Min Speed 1000RPM
Max Speed 2400RPM
Dry Suction Lift 3.3ft
Wet Suction Lift 6.6ft
Fluid Acidity 6pH
Maximum Total Dissolved Solids (TDS) 5000ppm
