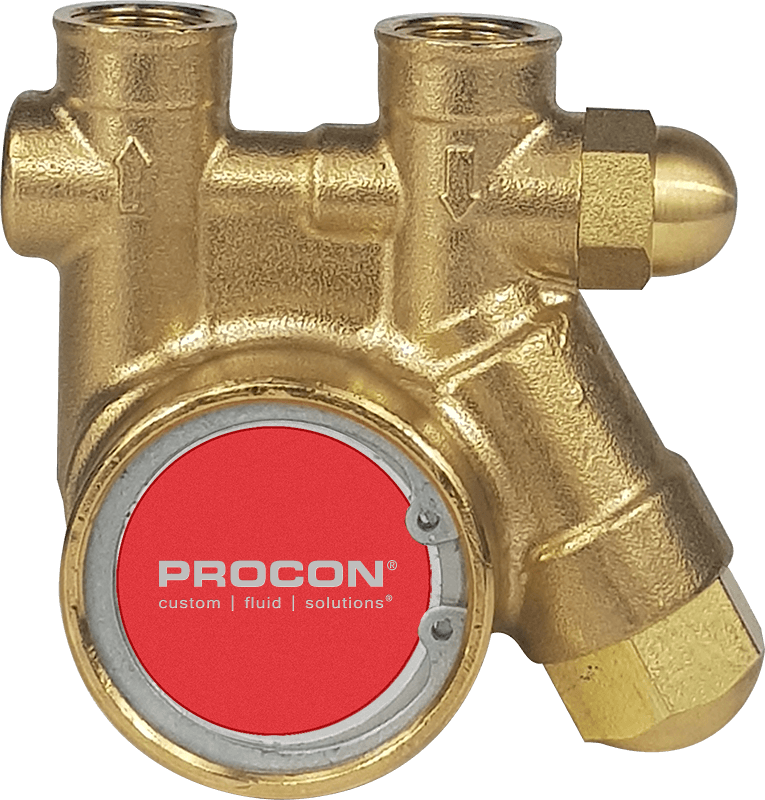

100 GPH Clamp-On Procon 101B100F11BC Series 1 Rotary Vane Pump - Brass with Integrated Strainer
$10499
100 GPH Clamp-On Procon 101B100F11BC Series 1 Rotary Vane Pump - Brass with Integrated Strainer
On Sale
100 GPH Clamp-On Procon 101B100F11BC Series 1 Rotary Vane Pump - Brass with Integrated Strainer
In stock
$10499$129.99Save $25
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Industrial Flow Capacity: The Procon 100 GPH pump provides consistent, pulse-free fluid delivery, making it the primary choice for commercial soda carbonators and espresso equipment.
- Integrated Strainer Protection: Features a built-in mesh strainer that captures particulates, preventing premature wear on the internal carbon rotary vanes.
- Universal Clamp-On Design: Engineered for easy installation, this Series 1 rotary vane pump utilizes a standard clamp-on mount compatible with most fractional horsepower motors.
- High-Pressure Performance: Designed for high-pressure beverage dispensing, capable of a 250 PSI max discharge and optimized for soda system maintenance.
- Precision Engineering: Built with EPDM/Nitrile elastomers and a solid Ultem valve, ensuring a leak-proof seal and food-grade compliance for potable water applications.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Procon 101B100F11BC Series 1 is a high-performance rotary vane displacement pump engineered for consistent fluid delivery in commercial carbonators, espresso machines, and water filtration systems. Delivering a steady 100 GPH (300 LPH), this brass-bodied pump features an integrated stainless steel strainer to protect the internal carbon vanes from sediment. Designed with a slotted drive and bronze coupling, this clamp-on style pump provides reliable clockwise rotation and a solid Ultem valve configuration for long-term industrial use.
- Flow Rate: 100 GPH (300 LPH) at 1725 RPM
- Connection Ports: 3/8" NPT Inlet and Outlet
- Mounting Type: Standard Clamp-On (Series 1)
- Drive Configuration: Slotted shaft with 1143 Bronze Coupling
- Internal Materials: High-density Carbon Vanes with Ceramic/Carbon Seals
- Elastomers: EPDM/Nitrile for broad chemical and temperature compatibility
- Pressure Range: 60–99 PSI Relief Valve Setting (250 PSI Max Discharge)
- Operating Temperature: -4°F to 160°F (-20°C to 71°C)
Technician's Note: This is a "wet-start" pump; the internal carbon vanes and ceramic seals rely on the fluid for lubrication and will sustain permanent damage if run dry for even a few seconds. Before commissioning, ensure the 100-mesh integrated strainer is clear and the pump head is primed. If you hear a "metallic chattering" during operation, it usually indicates cavitation caused by a restricted inlet or a clogged filter upstream.
