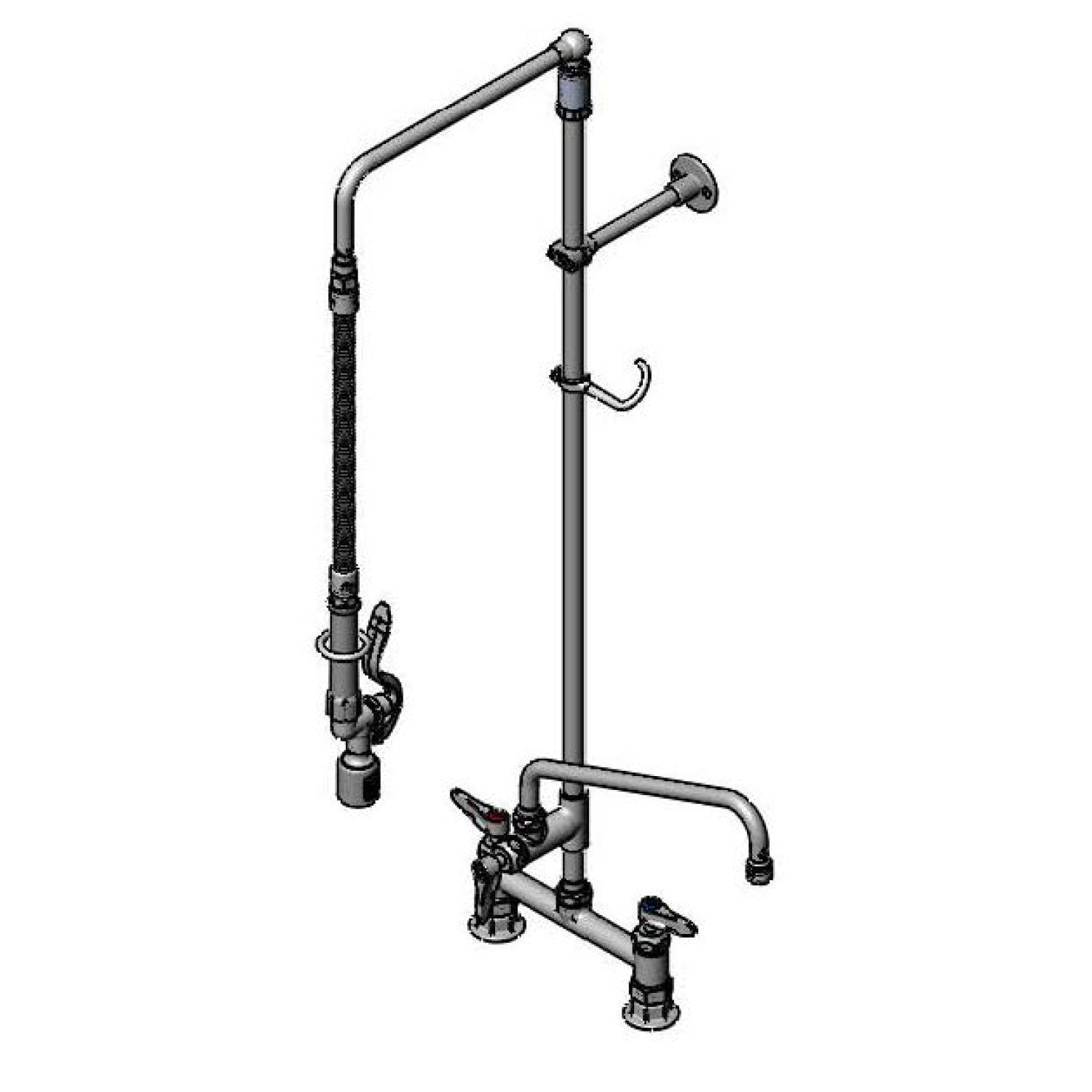

T&S Pre-Rinse Unit: 8" Deck Mount Base, Ceramas, 12" Overhead Swivel Arm, B-0107 Spray Valve
Regular price
$562.37
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
- 1.07 GPM spray valve
- 1/2" NPT female eccentric inlets with 2" flanges
- 12" swing nozzle with stream regulator outlet, Series 1
- 20" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 6" adjustable wall bracket
- 8" deck mount polished chrome plated brass body
- Add-on faucet with polished chrome plated brass body
- Adjustable centers from 7 3/4" to 8 1/4"
- EasyInstall 32" riser with overhead swivel arm
- Lever handles with color coded indexes
- Material: Polished chrome plated brass body, riser, overhead swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
Product Description
⌄8" deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge with check valve and lever handle, 12" swing nozzle with stream regulator outlet, 32" riser, overhead swivel arm, 20" flexible stainless steel hose, heat resistant handle, 1.07 GPM spray valve, ceramic cartridges with check valves, lever handles, 1/2" NPT female inlets,6" adjustable wall bracket and spray valve holder. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 & NSF 372. 2019 DOE PRSV - Class II compliant.
- Body: 8 in Centers (203.2 mm)
- Body Mount: Deck
- Cartridge-Spindle: Ceramic
- Feature: 6 in Wall Bracket (152.4 mm)
- Feature: Check Valve
- Handle: Lever
- Inlet: 1/2 in NPT Female
- Inlet: Adjustable Centers
- Material: Brass Construction
- Nozzle: 12 in (304.8 mm)
- Nozzle: Add-On Nozzle
- Nozzle: Nozzle
- Nozzle: Swivel
- Nozzle Flow: 5.35 GPM (20.25 L/min)
- Nozzle Outlet Type: Laminar Flow Device
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Spray Valve: B-0107-J (1.07 GPM) (4.05 L/min)
- Spray Valve Flow: 1.07 GPM (4.05 L/min)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
Show More
