Home » T&S Pre-Rinse, Balancer, Single Hole Base, Angled Low-Flow Spray Valve, and (2) Wall Brackets
T&S Brass

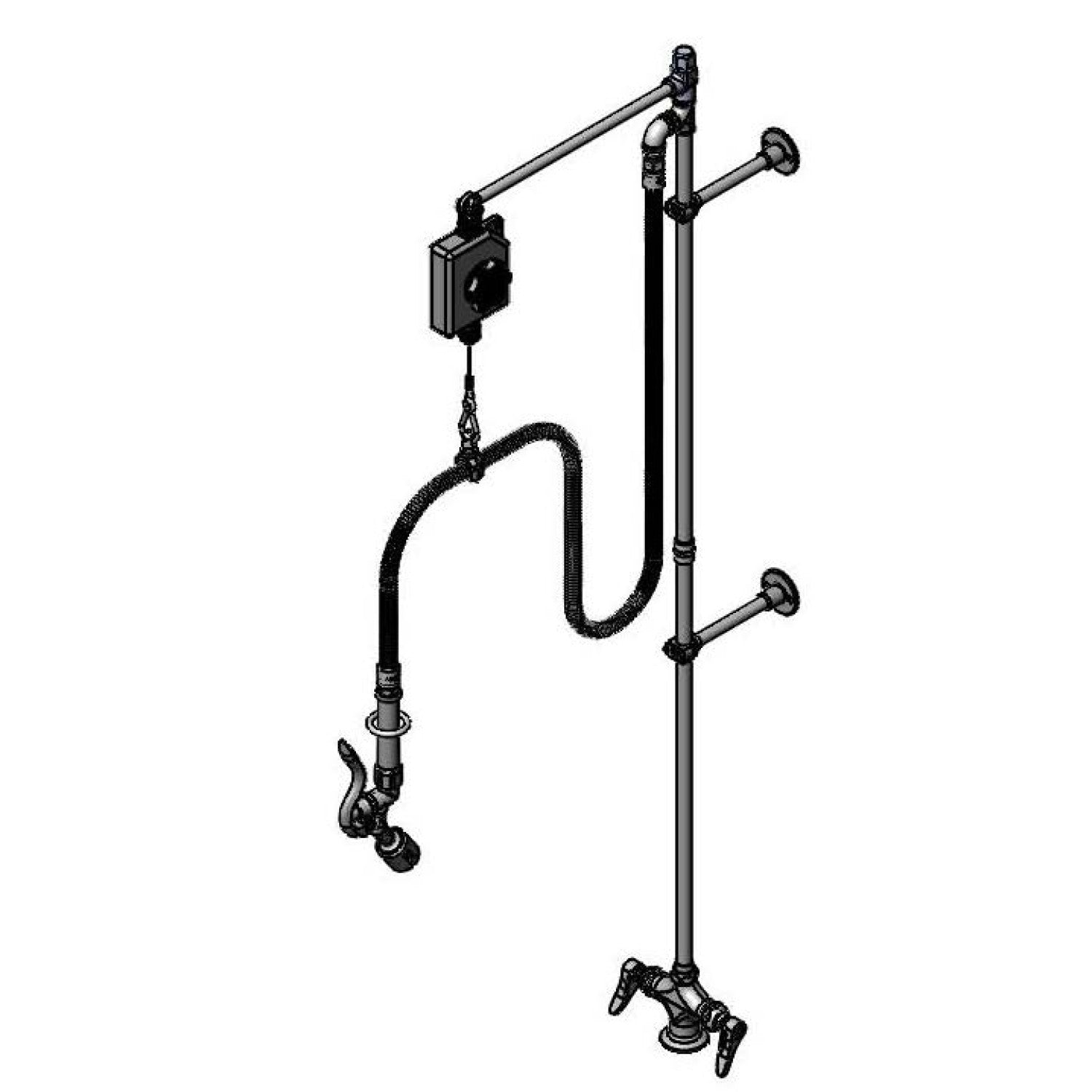

T&S Pre-Rinse, Balancer, Single Hole Base, Angled Low-Flow Spray Valve, and (2) Wall Brackets

In stock
Item: B-0126
$672.10
| or |
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back. Create a Free HowdyPro account
Express Options Available at Checkout
Express Checkout Logos
Sales Support Image

Call for Help & Best Pricing!

Speak with a real person based in San Antonio, TX!

888-964-4239 Live Chat

Quick Overview

  • 0.65 GPM low flow angled spray valve
  • 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
  • 6" adjustable wall bracket
  • 68" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
  • Lever handles w/ color coded indexes
  • Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
  • Overhead swivel extension arm with adjustable tension balancer
  • Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
  • Single hole deck mount mixing faucet with polished chrome plated brass body
  • Swivel elbow assembly
  • Two 24" risers (one EasyInstall, one rigid) w/ pipe coupling
NSF Certified

Product Description

⌄

Single hole deck mount mixing faucet with polished chrome plated brass body, 24" risers, 3/8" NPT pipe coupling, 68" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow angled spray valve,compression cartridges with spring checks, lever handles, 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections, overhead swivel extension arm with balancer,6" adjustable wall bracket. Certified to ASME A112.18.1/CSA B125, NSF 61-Section 9, and NSF 372. 2019 DOE PRSV Class I compliant.

  • Body: Single Hole
  • Body Mount: Deck
  • Cartridge-Spindle: 1/4 Turn Compression
  • Feature: 6 in Wall Bracket (152.4 mm)
  • Feature: Angled Sprayer
  • Feature: Spring Check
  • Handle: Lever
  • Inlet: 5/8 in Copper Tubing or 1/2 in NPSM Male
  • Material: Brass Construction
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
  • Spray Valve Flow: 0.65 GPM (2.46 L/min)
  • Temperature Max: 140°F (60℃)
  • Temperature Min: 40°F (4.44℃)
