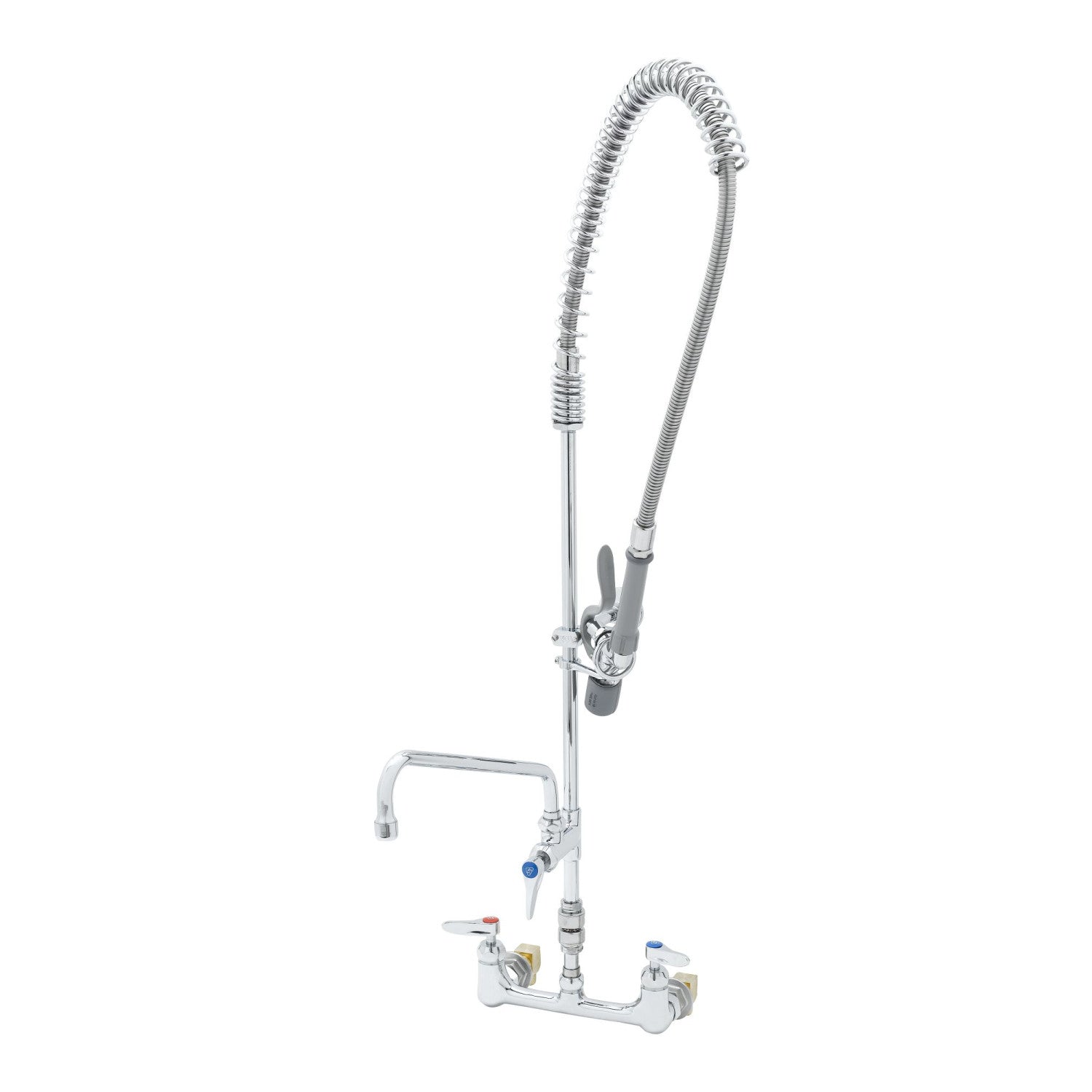

T&S Pre-Rinse, 8" Wall Mount Base, VB, Wall Bracket, 44" Flex Hose, Low-Flow Spray Valve, Ceramas & 12" Add-On Faucet

In stock
Item: B-2278-A12CRCEL
Regular price $718.02
| or |
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back. Create a Free HowdyPro account
Free $20 Gift Card w/ orders over $99

Express Options Available at Checkout
Express Checkout Logos
Sales Support Image

Call for Help & Best Pricing!

Speak with a real person based in San Antonio, TX!

888-964-4239 Live Chat

Quick Overview

  • 0.65 GPM low flow spray valve
  • 1/2" NPT female eccentric inlets with 2" flanges
  • 1/2" NPT supply nipple kit
  • 12" swing nozzle with stream regulator outlet, Series 1
  • 18" rigid riser
  • 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
  • 6" adjustable wall bracket
  • 8" wall mount mixing faucet with polished chrome plated brass body
  • Add-on faucet with polished chrome plated brass body
  • Adjustable centers from 7 3/4" to 8 1/4"
  • EasyInstall continuous pressure vacuum breaker for quick installation
  • Lever handles with color coded indexes
  • Material: Polished chrome plated brass body, tubular nozzle, add-on faucet body, riser & spray valve body, chrome plated vacuum breaker, stainless steel hose, and chrome plated metal handles
  • Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
NSF Certified

Product Description

8" wall mount mixing faucet with polished chrome plated brass body, continuous pressure vacuum breaker, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow spray valve, ceramic cartridges with check valves, lever handles, 1/2" NPT female inlets, 1/2" NPT supply nipple kit,6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and CSA B64.8. 2019 DOE PRSV -Class I compliant.

  • Body: 8 in Centers (203.2 mm)
  • Body Mount: Wall
  • Cartridge-Spindle: Ceramic
  • Features: 6 in Wall Bracket (152.4 mm), Check Valve, Continuous Pressure VB
  • Handle: Lever
  • Inlet: 1/2 in NPT Female, 1/2 in NPT Male, Adjustable Centers, Inlet Elbow
  • Material: Brass Construction
  • Nozzle: 12 in (304.8 mm), Add-On Nozzle, Nozzle, Swivel
  • Nozzle Flow: 5.35 GPM (20.25 L/min)
  • Nozzle Outlet Type: Laminar Flow Device
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
  • Spray Valve Flow: 0.65 GPM (2.46 L/min)
  • Temperature Max: 140°F (60℃)
  • Temperature Min: 40°F (4.44℃)
  • 0.65 GPM low flow angled spray valve
  • 1/2" NPT female eccentric inlets with 2" flanges
  • 6" adjustable wall brackets
  • 68" flexible stainless steel hose with heat resistant gray handle and hold down ring
  • 8" wall mount mixing faucet with polished chrome plated brass body
  • Adjustable centers from 7 3/4" to 8 1/4"
  • Lever handles with color coded indexes
  • Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
  • Overhead swivel extension arm with adjustable tension balancer
  • Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
  • Swivel elbow assembly
  • Two 24" risers (one EasyInstall, one rigid) with pipe coupling
Show More
