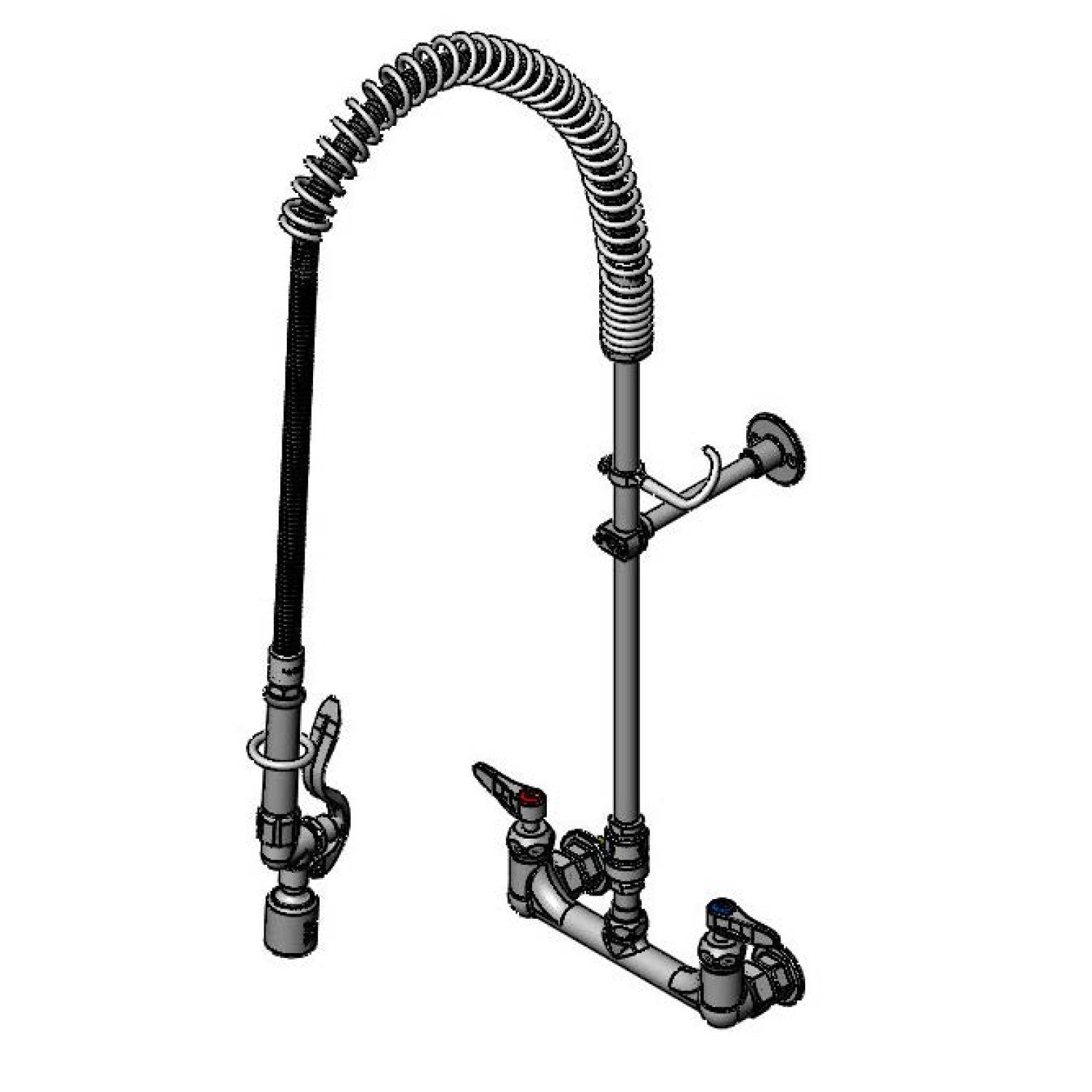

T&S Pre-Rinse, 8" Wall Mount Base, VB, Wall Bracket, 44" Flex Hose, Low-Flow Spray Valve, Cerama Cartridges, Short Els
Regular price
$564.57
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
- 0.65 GPM low flow spray valve
- 1/2" NPT female inlets with 2" adjustable flanges
- 1/2" NPT supply nipple kit
- 18" rigid riser
- 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 6" adjustable wall bracket
- 8" wall mount mixing faucet with polished chrome plated brass body
- Adjustable centers from 7 3/4" to 8 1/4"
- EasyInstall continuous pressure vacuum breaker for quick installation
- Lever handles with color coded indexes
- Material: Polished chrome plated brass body, riser & spray valve body, chrome plated vacuum breaker, stainless steel hose, and chrome plated metal handles
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
Product Description
⌄8" wall mount mixing faucet with polished chrome plated brass body, continuous pressure vacuum breaker, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow spray valve, ceramic cartridges with check valves, lever handles, 1/2" NPT female inlets, 1/2" NPT supply nipple kit, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1,NSF 61-Section 9, NSF 372 and CSA B64.8. 2019 DOE PRSV - Class I compliant.
- Body: 8 in Centers (203.2 mm)
- Body Mount: Wall
- Cartridge-Spindle: Ceramic
- Feature: 6 in Wall Bracket (152.4 mm)
- Feature: Check Valve
- Feature: Continuous Pressure VB
- Handle: Lever
- Inlet: 1/2 in NPT Female
- Inlet: 1/2 in NPT Male
- Inlet: Adjustable Centers
- Inlet: Inlet Elbow
- Material: Brass Construction
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
- Spray Valve Flow: 0.65 GPM (2.46 L/min)
- Temperature Max: 140°F (60℃)
- Temperature Min: 40°F (4.44℃)
Show More
