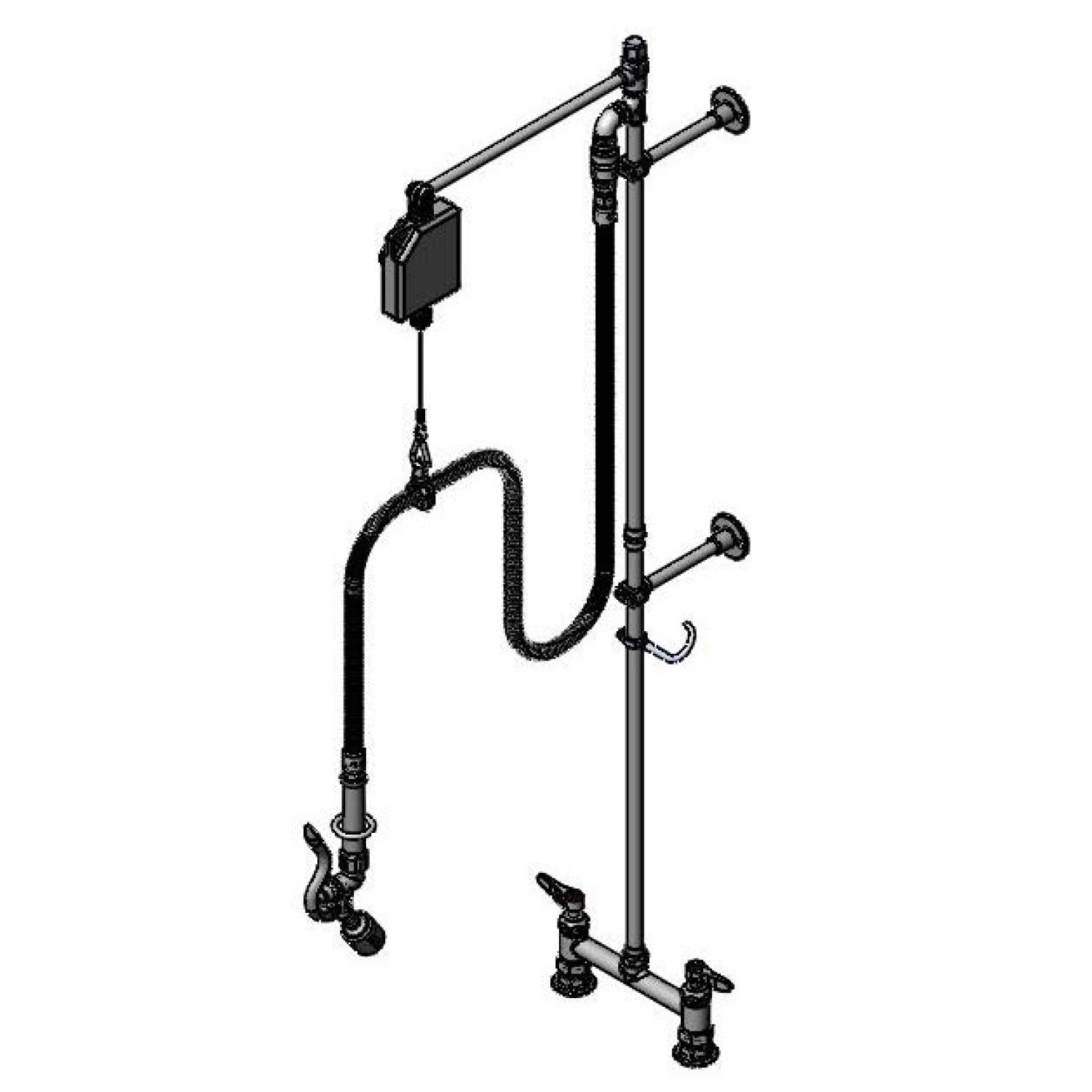

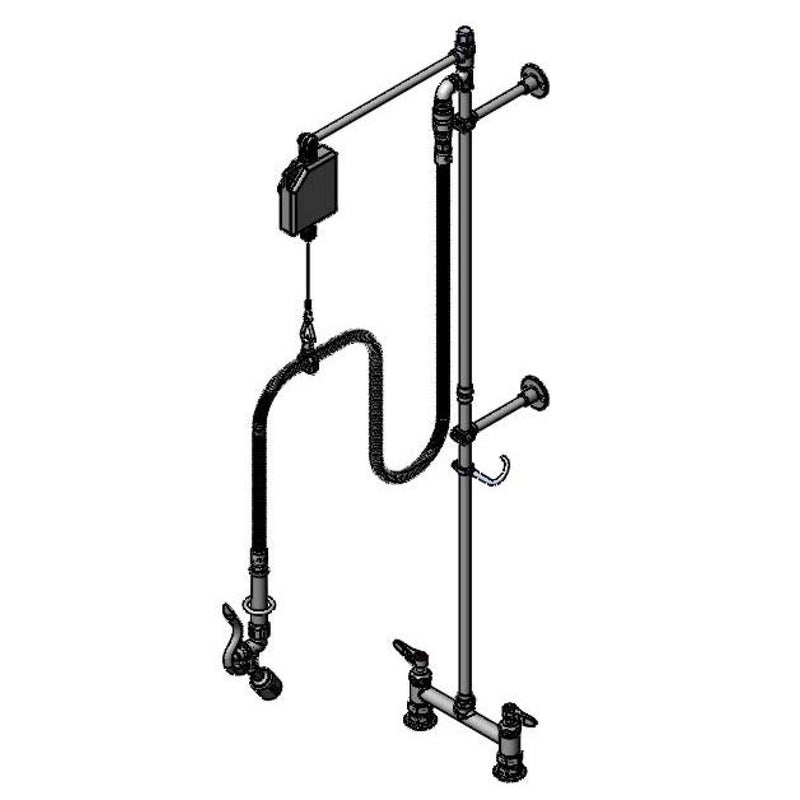

T&S Pre-Rinse: 8" Deck Mount Base, Ceramas, Swing Arm & Balancer, B-0107-C Spray Valve, 68" Flex Hose & Wall Supports
Regular price
$742.77
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
- 0.65 GPM angled low flow spray valve
- 1/2" NPT supply nipple inlets
- 24" rigid riser w/ pipe coupling
- 3/8" NPT vacuum breaker
- 6" adjustable wall brackets (2)
- 68" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 8" deck mount mixing faucet with polished chrome plated brass body
- EasyInstall riser for quick installation
- Lever handles w/ color coded indexes
- Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
- Overhead swivel extension arm with adjustable tension balancer
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Swivel elbow assembly
Product Description
⌄8" deck mount mixing faucet with polished chrome plated brass body, 24" risers, 3/8" NPT pipe coupling, swivel elbow, 68" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow angled spray valve, ceramic cartridges with check valves, lever handles, 3/8" NPT vacuum breaker, 1/2" NPT supply nipple inlets,overhead swivel extension arm with balancer and 6" adjustable wall brackets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and CSA B64.8. 2019 DOE PRSV- Class I compliant.
- Body: 8 in Centers (203.2 mm)
- Body Mount: Deck
- Cartridge-Spindle: Ceramic
- Feature: 6 in Wall Bracket (152.4 mm)
- Feature: Angled Sprayer
- Feature: Check Valve
- Feature: Continuous Pressure VB
- Handle: Lever
- Inlet: 1/2 in NPT Female
- Inlet: 1/2 in NPT Male
- Inlet: Adjustable Centers
- Material: Brass Construction
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
- Spray Valve Flow: 0.65 GPM (2.46 L/min)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
