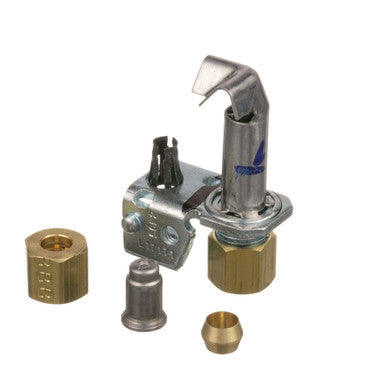

Natural Gas/LP Gas Pilot Assembly for Imperial, American Range – Replaces Imperial 1120-1
Natural Gas/LP Gas Pilot Assembly for Imperial, American Range – Replaces Imperial 1120-1
- Part type: Pilot Burner
- Fits: Imperial, American Range
- Listed fitment: 23 listed models
- Replaces: Imperial 1120-1
- Gas Type: Natural gas/LP
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
23 models· 2 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Natural Gas/LP Gas Pilot Assembly is a Mavrik aftermarket replacement part for Imperial, American Range equipment, built to meet the original equipment specification. It is listed to fit 23 models across 2 manufacturers. Replaces Imperial 1120-1 and 7 other OEM part numbers.
Manufacturer detail
NAT/LP pilot, factory #5SL2, tube size 3/16"/1/4" CCT, Flame pattern left picture wrong on pages 31, 475, and 645 of 2010-2011 hot side catalog. Pilot does not include electrode and wire, but otherwise looks the same. If electrode & wire is needed, order pilot assy Dynamic Cooking Systems broiler cheesemelter, salamander. Imperial broiler SERIES: ICMA cheesemelter, ISB salamander. Oven SERIES: IHR (Range W/STANDARD Oven).
Specifications
| Gas Type | Natural gas/LP |
|---|---|
| Length (in) | 1.25 |
| Width (in) | 1 |
| Height (in) | 2 |
| Sold As | Each |
Fits these models
- American Range: AGBU, ARCM, ARSM, ARSM-24, ARSM-36
- Imperial: ICMA-24, ICMA-36, ICMA-48, ICMA-60, ICMA-72, ICMA-84, IHR Diamond, IHR-6-C, IHR-G24-2-C, IR SERIES, IR-24, IR-36 and 6 more
Replaces these part numbers
- American Range: A11112, A11124
- Dynamic Cooking Systems: 13001-3, 13001-4
- Imperial: 1145, 1146, 1291, 1120-1
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 23 models across 2 manufacturers — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
