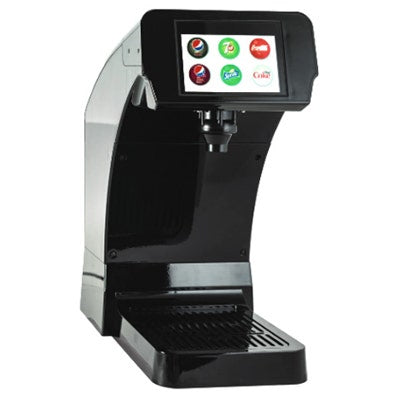

Mustang Counter-Top Soda Dispenser - Wunder-Bar 5F/3A No Rear Screen
Mustang Counter-Top Soda Dispenser - Wunder-Bar 5F/3A No Rear Screen
- Counter-top mount with front touchscreen only, no rear screen, and a drain.
- Set up for 5 post-mix base beverages and 3 flavor concentrate additives (flavor shots).
- 8 in wide, 13.5 in deep, 16 in high.
- Standard flow rate of 2 oz per second; plumbed as a standard bar gun.
- Runs on 12 V, 8.5 A from the supplied power supply.
- SKU / MPN: WB-MU-03-02-5-3
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Pour five post-mix beverages and add three flavor shots from a touchscreen tower that takes up 8 inches of counter width.
The Wunder-Bar Mustang is a compact beverage tower that is plumbed like a standard bar gun, so it suits counters with little room to spare. This version bolts to the countertop, has the front touchscreen only (no rear screen) and includes a drain. It can run in Self-Serve or Crew-Serve mode.
Features
- Set up for 5 post-mix base beverages and 3 flavor concentrate additives (flavor shots). Wunder-Bar states the tower can dispense any combination of flavor shots, carbonated and non-carbonated beverages, up to 8 in total.
- Two further ports are included for carbonated water and still water.
- Front touchscreen with Self-Serve and Crew-Serve modes. In Crew-Serve mode staff pick a size and the tower pours the portion, with a top-off function.
- Standard flow rate of 2 oz per second.
- USB port for software updates, new logos, brand updates and flavor changes.
- Counter-top mount: five 1/4 in-20 studs fasten the tower through holes marked with the included drilling template.
- Optional recirculation capability.
- ADA compliant, according to the manufacturer.
Specifications
| Mount | Counter-top, front display only, with drain |
|---|---|
| Configuration | 5 post-mix base beverages, 3 flavor concentrate additives |
| Width | 8 in (20.3 cm) |
| Depth | 13.5 in |
| Height | 16 in |
| Flow rate | 2 oz per second (standard) |
| Electrical | 12 V, 8.5 A from the supplied power supply |
| Drain outlet | 0.75 in |
| Countertop thickness | 2 in maximum |
| Ambient temperature | 36°F to 104°F (2°C to 40°C), indoor use |
Compatibility
The Mustang is a dispensing tower, so it needs a beverage system behind it. Wunder-Bar lists these components for a complete Mustang system: a BIB rack, carbonator, CO2 regulator/pump, filtered water source, in-line flow regulator and a drop-in ice chest with cold plate. The water supply must deliver 25 to 95 PSI dynamic pressure, with 100 PSI maximum static pressure, and needs backflow prevention to local code. Use only the power supply shipped with the unit.
More from Wunder-Bar
Shop all Wunder-Bar →Recently viewed
Searches related to this
Frequently asked questions
What does 5F/3A mean on this Mustang?
Wunder-Bar configures each Mustang by the number of post-mix base beverages and the number of flavor concentrate additives. This unit is set up for 5 base beverages and 3 flavor shots, and base beverages can be carbonated or non-carbonated.
How does the counter-top Mustang mount to my counter?
It fastens with five 1/4 in-20 studs through holes marked with the included drilling template, and the counter also needs a drain hole and a tubing exit port. The maximum countertop thickness is 2 in.
What power does the Mustang need?
The tower runs on 12 V at 8.5 A from its supplied power supply. Wunder-Bar says to use only the power supply shipped with the unit.
What else do I need to run a Mustang?
Wunder-Bar lists these components for a complete Mustang system: BIB rack, carbonator, CO2 regulator/pump, filtered water source, in-line flow regulator and a drop-in ice chest with cold plate.
How is the Mustang cleaned day to day?
Each day, twist off the nozzle, soak it in cleaning solution for 2 minutes, scrub it with a clean brush and let it air dry, then wipe the outside of the tower with a cloth soaked in the solution. Wunder-Bar says not to use chlorinated cleaning products on the display panel.
