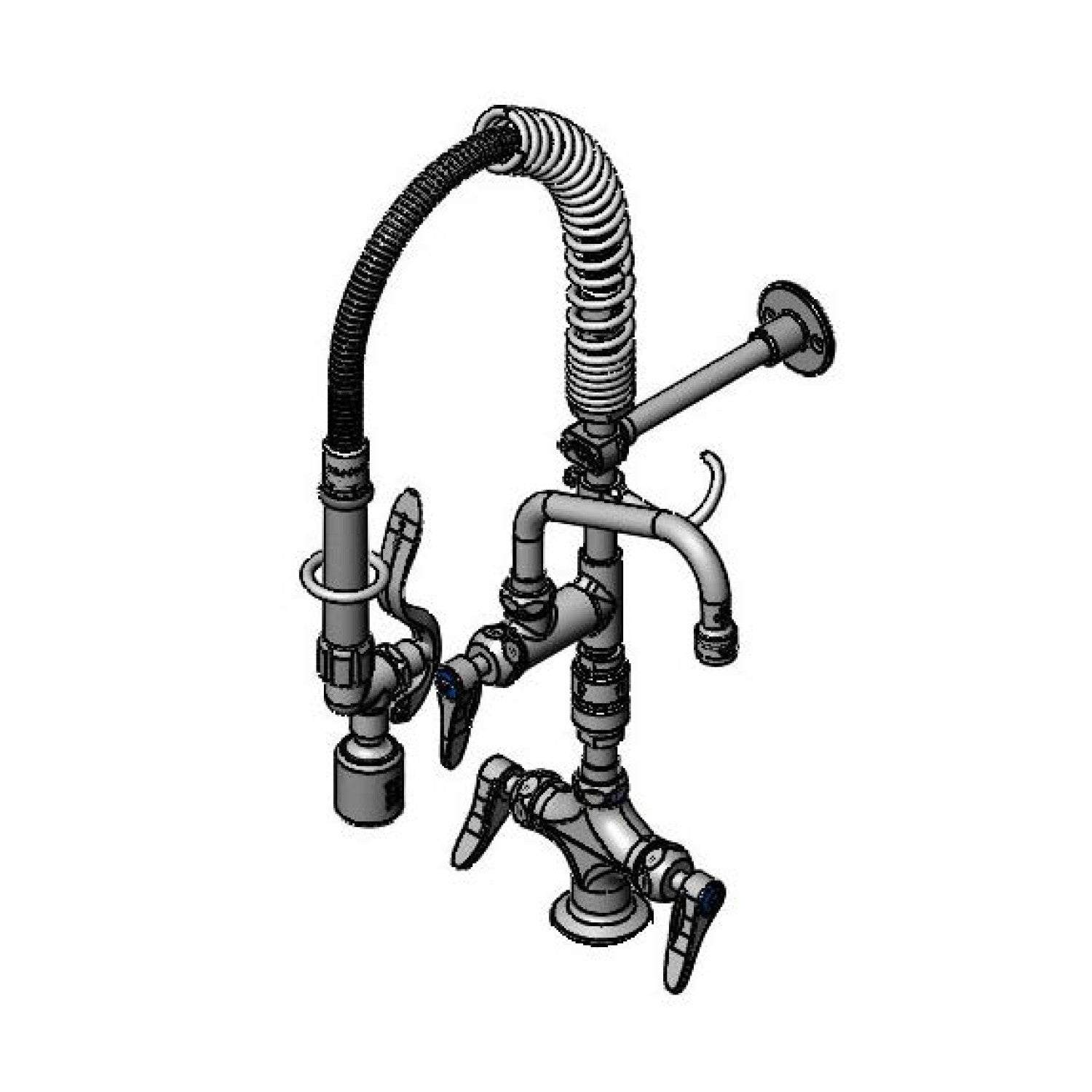

T&S Mini-PRU: Single Hole Deck Mount, B-0107-C, 6" ADF Nozzle, VB, Ceramas

Single hole deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 6" swing nozzle with stream regulator outlet, 5 3/16" riser, vacuum breaker, 24"flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow spray valve, ceramic cartridges with check valves, lever handles,18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" compression connections, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1,NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class I compliant.

• Body: Single Hole
• Body Mount: Deck
• Cartridge-Spindle: Ceramic
• Feature: 6 in Wall Bracket (152.4 mm)
• Feature: Check Valve
• Feature: Continuous Pressure VB
• Feature: Low Profile
• Handle: Lever
• Inlet: 5/8 in Copper Tubing or 1/2 in NPSM Male
• Material: Brass Construction
• Nozzle: 6 in (152.4 mm)
• Nozzle: Add-On Nozzle
• Nozzle: Nozzle
• Nozzle: Swivel
• Nozzle Flow: 4.51 GPM (17.07 L/min)
• Nozzle Outlet Type: Laminar Flow Device
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Spray Valve: B-0107-C (0.65 GPM) (2.46 L/min)
• Spray Valve Flow: 0.65 GPM (2.46 L/min)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
