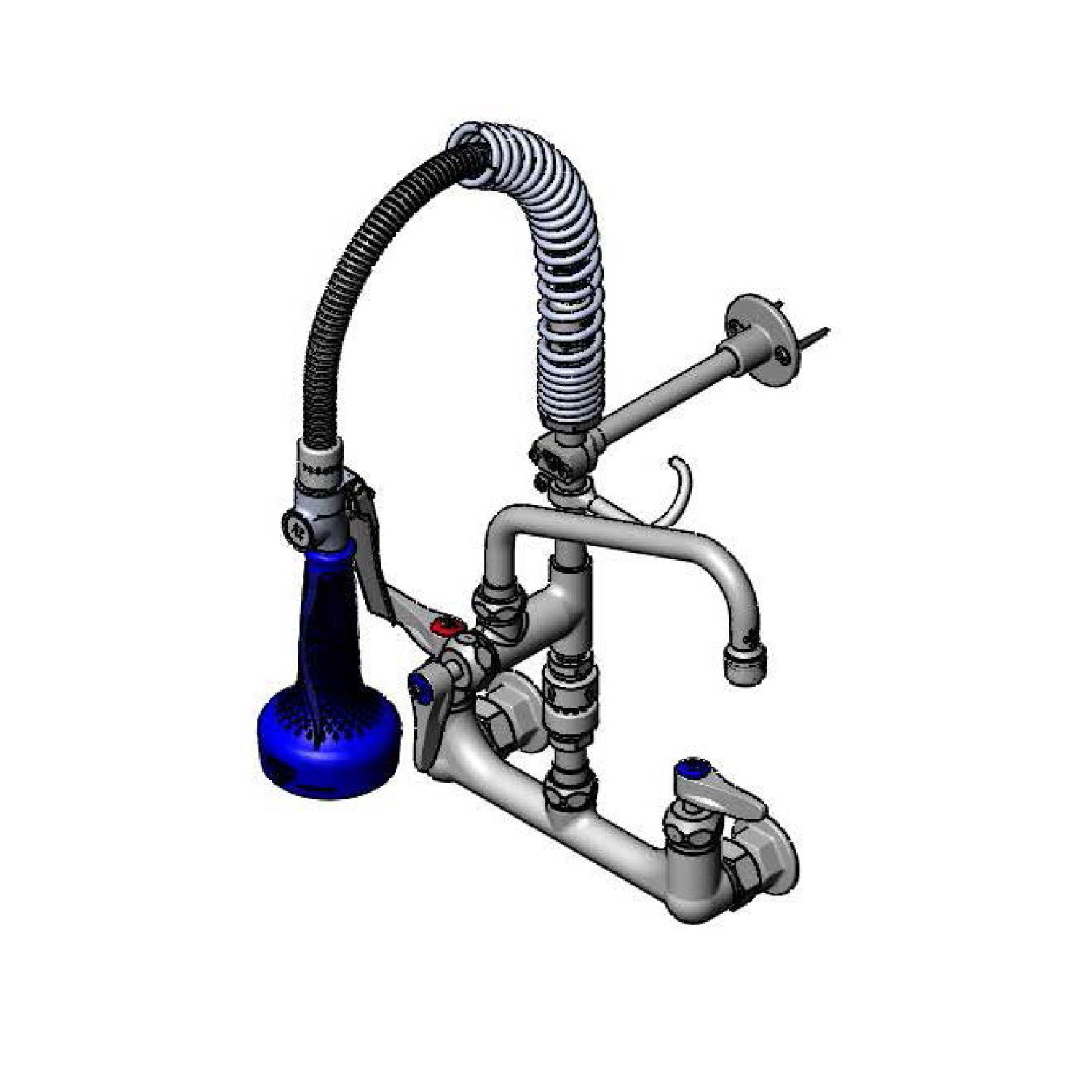

T&S Mini-PRU: 8" Wall Mount w/ B-0108-C, Vacuum Breaker, 8" ADF Nozzle & Ceramas
Regular price
$774.95
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
- 0.65 GPM low flow JeTSpray valve with insulated grip handle, stainless steel trigger, and trigger lock
- 1/2" NPT female eccentric inlets with 2" flanges
- 24" flexible stainless steel hose
- 5 3/16" rigid riser
- 6" adjustable wall bracket
- 8" swing nozzle with stream regulator outlet, Series 1
- 8" wall mount mixing faucet with polished chrome plated brass body
- Adjustable centers from 7 3/4" to 8 1/4"
- Continuous pressure vacuum breaker
- EasyInstall add-on faucet with polished chrome plated brass body
- Lever handles with color coded indexes
- Material: Polished chrome plated brass body, tubular spout, vacuum breaker, add-on faucet body, riser & spray valve, stainless steel hose, and chrome plated metal handles
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
Product Description
⌄8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge with check valve and lever handle, 8" swing nozzle with stream regulator outlet, 5 3/16" riser, vacuum breaker, 24" flexible stainless steel hose, 0.65 GPM low flow spray valve, ceramic cartridges with check valves, lever handles, 1/2" NPT female inlets, 6" adjustable wall bracket,spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and CSA B64.8. 2019 DOE PRSV - Class I compliant.
- Body: 8 in Centers (203.2 mm)
- Body Mount: Wall
- Cartridge-Spindle: Ceramic
- Feature: 6 in Wall Bracket (152.4 mm)
- Feature: Check Valve
- Feature: Continuous Pressure VB
- Feature: Low Profile
- Handle: Lever
- Inlet: 1/2 in NPT Female
- Inlet: Adjustable Centers
- Material: Brass Construction
- Nozzle: 8 in (203.2 mm)
- Nozzle: Add-On Nozzle
- Nozzle: Nozzle
- Nozzle: Swivel
- Nozzle Flow: 5.35 GPM (20.25 L/min)
- Nozzle Outlet Type: Laminar Flow Device
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Spray Valve: B-0108-C (0.65 GPM) (2.46 L/min)
- Spray Valve Flow: 0.65 GPM (2.46 L/min)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
