McCann's Small Carbonator ASSE 1022 Potted Probe 120V/60Hz
McCann's Small Carbonator ASSE 1022 Potted Probe 120V/60Hz
- Tank Capacity: 32 oz. with "Diamond Brite" finish and 5-year warranty.
- Backflow Compliant: ASSE 1022 specified backflow preventer for safety and compliance.
- Powerful Motor: 1/3 HP, 115VAC, 60Hz, 6.5 amps for reliable performance.
- High-Efficiency Pump: Brass water pump with integral strainer, 100 GPH at 250 PSI.
- Liquid Level Control: Solid-state 2-piece float/probe system for precision management.
- Quiet Operation: Rubber feet reduce vibration and noise.
- Easy Installation: 1/4" CO2 inlet, 3/8" water inlet, 3/8" soda outlet(s).
- Compact Footprint: Dimensions: 11" H x 9" W x 11.5" D | Shipping Weight: 25 lbs.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Soda water for a beverage dispensing system, from a compact carbonator with a 32 fl oz stainless steel tank and a 100 GPH pump. A backflow prevention device specified to ASSE 1022 is included.

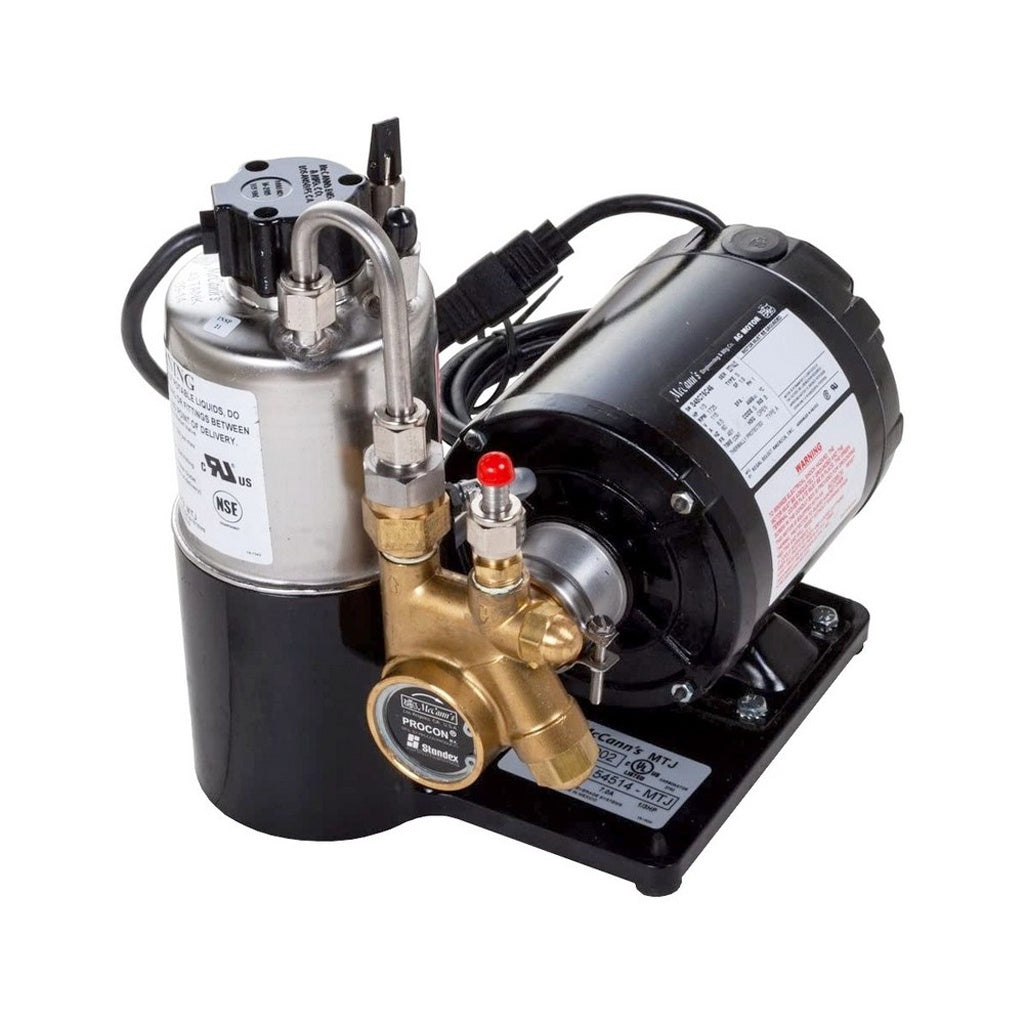

McCann's carbonators are a Multiplex Beverage product line. This small model comes as a complete unit: motor, brass rotary-vane pump, tank, level probe and base. It suits a new soda installation or the replacement of a worn-out small carbonator. This version has the fully potted probe the manufacturer announced in a January 2025 service bulletin, which waterproofs the probe electronics.
Features
- 32 fl oz (0.95 L) tank in the manufacturer's Diamond Brite stainless steel, which resists corrosion and is easy to clean.
- 100 GPH brass rotary-vane water pump with an internal 100-micron strainer and by-pass relief built in.
- Fully potted probe switch. The manufacturer says potting waterproofs the probe electronics, and that the probe is the most frequently replaced part on a carbonator.
- Injection molded base on vibration-isolating rubber feet, which keeps noise down.
- Anderson Brass backflow prevention device, specified to ASSE 1022, is included, so you do not have to source one separately.
- Certified compliance with California AB-1953 and Vermont Act 193, per the manufacturer's specification sheet.
Specifications
| Tank capacity | 32 fl oz (0.95 L) |
|---|---|
| Tank construction | Diamond Brite stainless steel |
| Soda outlets | 1 |
| Motor | 1/3 HP, 1725 RPM |
| Electrical (manufacturer's rating) | 115V, 60Hz, single phase, 6.5 amps |
| Pump | 100 GPH brass rotary-vane |
| Pressure relief valve | 180 PSI |
| CO2 inlet | 1/4" male flare |
| Water inlet | 3/8" male flare |
| Soda water outlet | 3/8" male flare |
| Base | Injection molded, rubber feet |
| Carton dimensions | 13 x 14.5 x 11 in (33 x 36.8 x 27.9 cm) |
| Approximate shipping weight | 25 lb (11.4 kg) |
Compatibility
Hook-ups are flare fittings: 1/4" male flare for CO2, 3/8" male flare for water in and 3/8" male flare for soda water out, with a single soda outlet. The manufacturer rates the motor at 115V, 60Hz, single phase, drawing 6.5 amps. The potted probe parts are backwards compatible; the manufacturer states they can be installed on previous-generation McCann's carbonators. A 220V 50/60Hz small carbonator is a separate model and is not this listing.
More from McCann's
Shop all McCann's →Recently viewed
Searches related to this
Frequently asked questions
What power supply does this carbonator need?
The manufacturer rates it at 115V, 60Hz, single phase. The 1/3 HP motor draws 6.5 amps.
What size are the water, CO2 and soda connections?
The CO2 inlet is 1/4 in male flare. The water inlet and the soda water outlet are both 3/8 in male flare, and there is one soda outlet.
How much capacity does it have?
The pump is rated at 100 GPH and the stainless steel tank holds 32 fl oz (0.95 L). The pressure relief valve is rated 180 PSI.
Does it come with a backflow preventer?
Yes. The manufacturer's specification sheet lists an Anderson Brass backflow prevention device, specified to ASSE 1022, as included.
Will the potted probe parts fit an older McCann's carbonator?
Yes. The manufacturer's January 2025 service bulletin states the potted probe parts are backwards compatible and can be installed on previous-generation carbonators.
