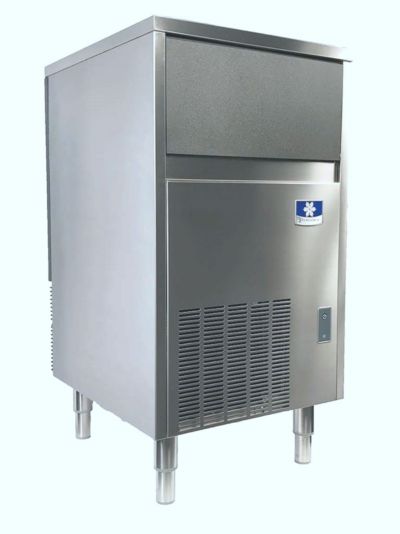

Manitowoc® Undercounter Ice Machine 100 lb/24 hr 115 VAC USP0100A-161

Ask a question Item # USP0100A-161 In stock

Manitowoc® Undercounter Ice Machine 100 lb/24 hr 115 VAC USP0100A-161

Ask a question Item # USP0100A-161
In stock
$3,37041 Web Price This is the manufacturer’s Minimum Advertised Price (MAP). Want a better price? Request a custom quote. Our team can unlock exclusive pricing, volume discounts, and project rates reserved for direct requests. Free and no obligation.
Sizing a system or quoting a job?Talk to an equipment specialist →
Ships LTL freight on a pallet
Typically 5-7 business days · Free freight to the 48 contiguous states
  • Up to 100 lb (45.4 kg) of square ice per 24 hours at 70°F air / 50°F water; 88 lb (40 kg) at 90°F / 70°F
  • Square size: 1" x 1", 22.5 g crystal clear square cube
  • Storage capacity: 38 lb (17.2 kg)
  • Air cooled, 115/60/1, max. fuse 15 amps
  • Dimensions: 19.68" (50 cm) W x 22.83" (58 cm) D x 37.5" (95.25 cm) H

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon-Fri 8:30-5 CT

Request a quote

Need multiple units, a freight quote, or pricing in writing before you order? Quotes back within 24 hours.

Request a quote

Overview

The Manitowoc USP0100A is an air-cooled Square Cube undercounter ice machine. Manitowoc rates it at 100 lb (45.4 kg) of square ice per 24 hours at 70°F air and 50°F water, and 88 lb (40 kg) at 90°F air and 70°F water. It runs on 115/60/1, with a maximum fuse size of 15 amps.

Specifications

Ice shape Square (1" x 1", 22.5 g crystal clear square cube)
24-hour production, 70°F air / 50°F water 100 lb (45.4 kg)
24-hour production, 90°F air / 70°F water 88 lb (40 kg)
Storage capacity 38 lb (17.2 kg)
Cooling Air cooled
Electrical 115/60/1
Maximum fuse size 15 amps
Energy use per 100 lb of ice 9.62 kWh
Potable water per 100 lb of ice 55.4 gal. (209.7 L)
Refrigerant R290
Heat rejection (BTU/hr) 2350 average, 3637 peak
Dimensions 19.68" (50 cm) W x 22.83" (58 cm) D x 37.5" (95.25 cm) H
Total ampacity Air-cooled: 10 amps
Compressor Nominal rating: 1/3 HP
Ambient air range 50°-110°F (10°-43°C)
Water temperature range 40°-90°F (4°-32°C)
Water pressure Min. 20 psi (137.9 kPA), Max. 80 psi (551.6 kPA)

Compatibility

Other models on the same Manitowoc spec sheet 7402B 06/22: USP0100.

Installation

  • Clearances: Sides: 2" (5.1 cm), back: 8" (20.3 cm), top: 2" (5.1 cm). Air in front, air out back, no side vents.
  • 3/8" (0.95 cm) N.P.T. Ice Making Water Inlet
  • 1/2" (1.27 cm) N.P.T. Ice Making Water Outlet
  • Factory pre-wired with a 6' (180 cm) power cord and NEMA 5-15P plug

Accessories Manitowoc lists

  • Ice scoop (standard equipment)
  • 6" bin legs, adjustable from 4-1/2" to 6" (standard equipment)

Warranty

3 years parts and labor (as printed on Manitowoc spec sheet 7402B 06/22).

Source: Manitowoc spec sheet 7402B 06/22. Specifications can change; check the data plate and the current Manitowoc documentation before installation.

Key features

  • Up to 100 lb (45.4 kg) of square ice per 24 hours at 70°F air / 50°F water; 88 lb (40 kg) at 90°F / 70°F
  • Square size: 1" x 1", 22.5 g crystal clear square cube
  • Storage capacity: 38 lb (17.2 kg)
  • Air cooled, 115/60/1, max. fuse 15 amps
  • Dimensions: 19.68" (50 cm) W x 22.83" (58 cm) D x 37.5" (95.25 cm) H

Searches related to this

$3,370.41

Frequently asked questions

How much ice does the Manitowoc USP0100A make per day?

The Manitowoc USP0100A makes up to 100 lb (45.4 kg) of square ice per 24 hours at 70°F air and 50°F water, per Manitowoc spec sheet 7402B 06/22. At 90°F air and 70°F water the rating is 88 lb (40 kg), so size for that figure if the room runs hot.

How much ice does the Manitowoc USP0100A hold?

The Manitowoc USP0100A holds 38 lb (17.2 kg) of ice, per Manitowoc spec sheet 7402B 06/22.

What electrical circuit does the Manitowoc USP0100A need?

The Manitowoc USP0100A runs on 115/60/1 with a maximum fuse size of 15 amps, per Manitowoc spec sheet 7402B 06/22.

What are the dimensions of the Manitowoc USP0100A?

The Manitowoc USP0100A measures 19.68" (50 cm) W x 22.83" (58 cm) D x 37.5" (95.25 cm) H, per Manitowoc spec sheet 7402B 06/22.

How much water and electricity does the Manitowoc USP0100A use?

Per Manitowoc spec sheet 7402B 06/22, the Manitowoc USP0100A uses 9.62 kWh of electricity and 55.4 gal. (209.7 L) of potable water per 100 lb of ice.

What refrigerant does the Manitowoc USP0100A use?

The Manitowoc USP0100A uses R290 refrigerant, per Manitowoc spec sheet 7402B 06/22.
