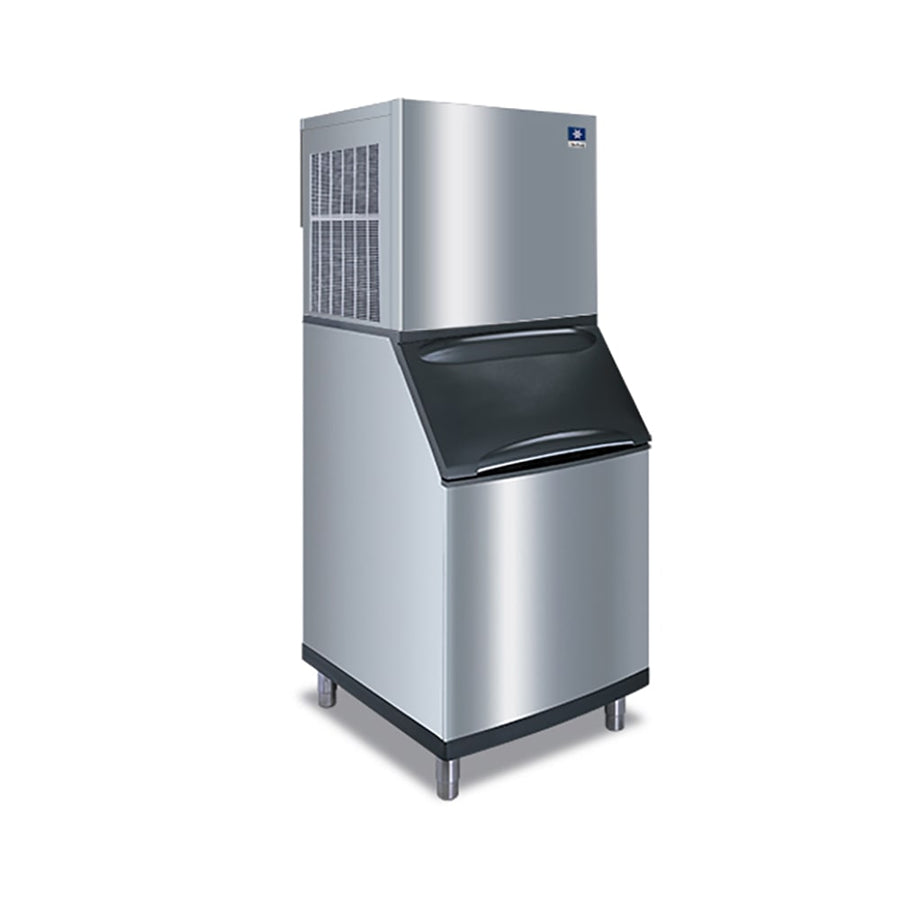

Manitowoc RNF1100A/D970/K00470 Commercial Ice Machine with Bin — 1078 lb/Day Nugget, Air Cooled, 882 lb Storage, 208/230V
Manitowoc RNF1100A/D970/K00470 Commercial Ice Machine with Bin — 1078 lb/Day Nugget, Air Cooled, 882 lb Storage, 208/230V
- Up to 1078 lb/24 hr nugget production
- 882 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 48 in W x 34 in D x 77.38 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc RNF1100A/D970/K00470 produces up to 1078 lb of nugget per 24 hours and stores it in a 882 lb insulated bin. It runs on air cooled condensing with R404A refrigerant on 208/230V power.
The nugget format gives you soft, chewable nugget ice that's popular for healthcare, smoothies, and beverage service.
At a glance: 48 in W, 34 in D, 77.38 in H, 208/230V/60Hz/1Ph, R404A refrigerant.
Key features
- Up to 1078 lb/24 hr nugget production
- 882 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 48 in W x 34 in D x 77.38 in H footprint
- 208/230V, 60Hz, 1Ph
- R404A refrigerant
- Certified: NSF, cULus Listed, cULus, AHRI
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 1078 lb |
| Bin storage capacity | 882 lb |
| Ice type / cube size | Nugget |
| Compressor | Air Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 48.0″ × 34.0″ × 77.38″ |
| Shipping weight | 459.0 lb |
| Electrical | 208/230 V · 60 Hz · 1 Ph |
| Water inlet | 0.38″ |
Documents & downloads
Certifications
Warranty
Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
