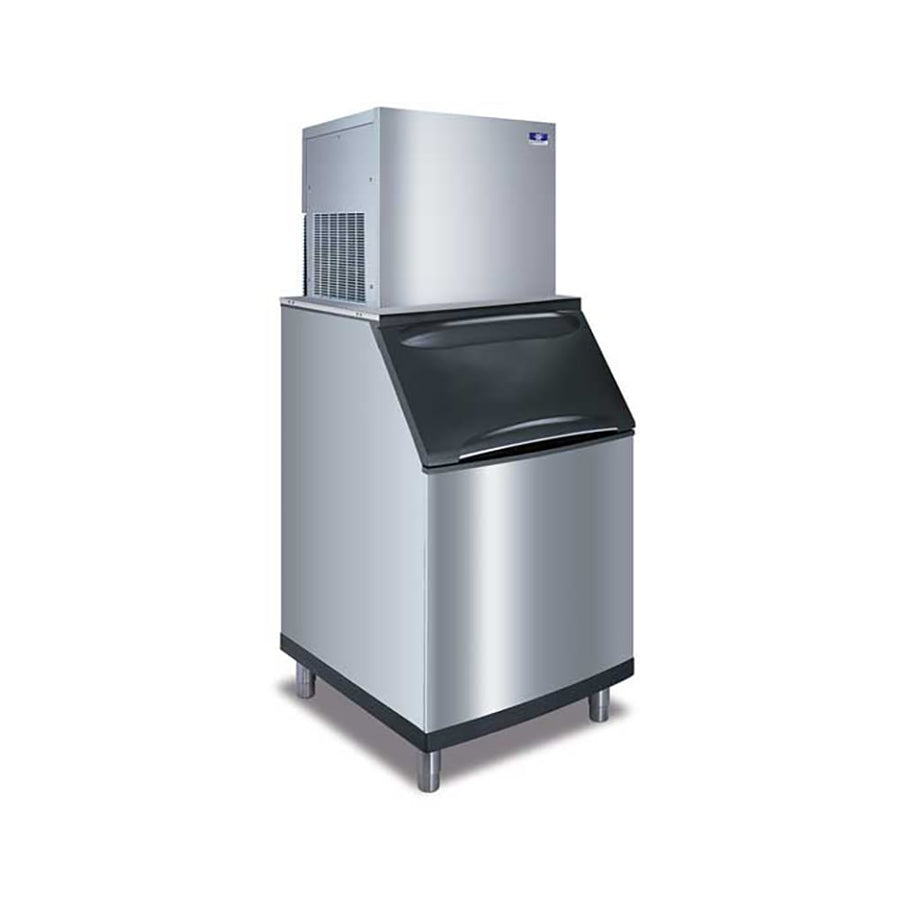

Manitowoc RFF1300A/D570 Commercial Ice Machine with Bin — 1264 lb/Day Flake, Air Cooled, 532 lb Storage, 208/230V
Manitowoc RFF1300A/D570 Commercial Ice Machine with Bin — 1264 lb/Day Flake, Air Cooled, 532 lb Storage, 208/230V
- Up to 1264 lb/24 hr flake production
- 532 lb insulated bin storage
- Air Cooled condensing
- Flake ice format
- 30 in W x 34 in D x 77.41 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc RFF1300A/D570 produces up to 1264 lb of flake per 24 hours and stores it in a 532 lb insulated bin. It runs on air cooled condensing with R404A refrigerant on 208/230V power.
The flake format gives you soft flake ice for food displays, blended drinks, and therapy/healthcare use.
At a glance: 30 in W, 34 in D, 77.41 in H, 208/230V/60Hz/1Ph, R404A refrigerant.
Key features
- Up to 1264 lb/24 hr flake production
- 532 lb insulated bin storage
- Air Cooled condensing
- Flake ice format
- 30 in W x 34 in D x 77.41 in H footprint
- 208/230V, 60Hz, 1Ph
- R404A refrigerant
- Certified: NSF, CE, AHRI, ETL
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 1264 lb |
| Bin storage capacity | 532 lb |
| Ice type / cube size | Flake |
| Compressor | Air Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 30.0″ × 34.0″ × 77.41″ |
| Shipping weight | 378.0 lb |
| Electrical | 208/230 V · 60 Hz · 1 Ph |
| Water inlet | 0.38″ |
Documents & downloads
Certifications
Warranty
Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
