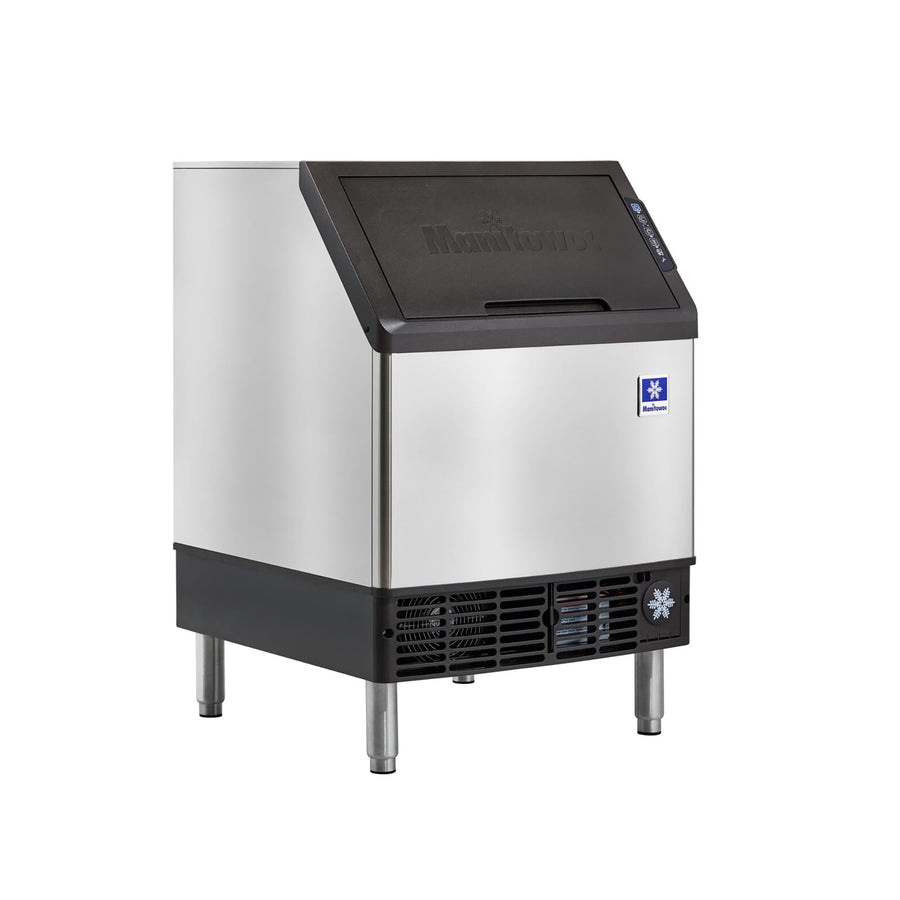

Manitowoc NEO® UYP0190A Commercial Ice Machine with Bin — 200 lb/Day Half Cube, Air Cooled, 90 lb Storage, 115V
Manitowoc NEO® UYP0190A Commercial Ice Machine with Bin — 200 lb/Day Half Cube, Air Cooled, 90 lb Storage, 115V
- Up to 200 lb/24 hr half cube production
- 90 lb insulated bin storage
- Air Cooled condensing
- Half Cube ice format
- 26 in W x 28.5 in D x 38.5 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc NEO® UYP0190A produces up to 200 lb of half cube per 24 hours and stores it in a 90 lb insulated bin. It runs on air cooled condensing with R290 (Hydrocarbon) refrigerant on 115V power.
The half cube format gives you fast-cooling half-dice cubes ideal for soft drinks, mixed beverages, and quick fills.
At a glance: 26 in W, 28.5 in D, 38.5 in H, 115V/60Hz/1Ph, R290 (Hydrocarbon) refrigerant.
Key features
- Up to 200 lb/24 hr half cube production
- 90 lb insulated bin storage
- Air Cooled condensing
- Half Cube ice format
- 26 in W x 28.5 in D x 38.5 in H footprint
- 115V, 60Hz, 1Ph
- R290 (Hydrocarbon) refrigerant
- Certified: ENERGY STAR, NSF, cULus, CE, AHRI
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 200 lb |
| Bin storage capacity | 90 lb |
| Ice type / cube size | Half Cube |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 26.0″ × 28.5″ × 38.5″ |
| Shipping weight | 160.0 lb |
| Electrical | 115 V · 60 Hz · 1 Ph |
| Water inlet | 0.38″ |
| Also known as | UYF0190A |
Documents & downloads
Certifications
Warranty
3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
Find authorized service →Get your unadvertised price
Manitowoc doesn’t allow us to publish our lowest price online. Request an unadvertised deal and we’ll send you the best price we’re allowed to quote — privately, with no obligation.
