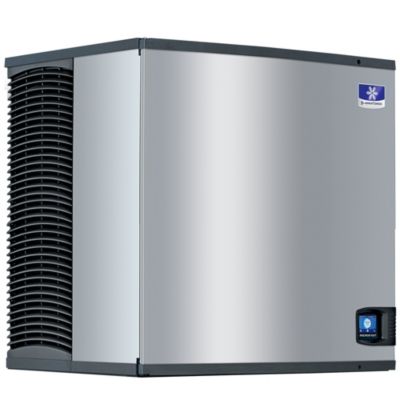

Manitowoc® Ice Machine 915 lb/24 hr 24 1/2" x 30" x 26 1/2" IYF0900A-263A
- Up to 915 lb (3 ph) of half dice cube ice per 24 hours at 70°F air / 50°F water; 700 lb (3 ph) at 90°F / 70°F
- Half dice cube size: 3/8" x 1 1/8" x 7/8" (.95 x 2.86 x 2.22 cm)
- Air cooled, 208-230/60/3, min. circuit 7.2 amps, max. fuse 15 amps
- Dimensions: 30.00" (76.20 cm) W x 24.50" (62.23 cm) D x 26.50" (67.31 cm) H
- Pairs with Manitowoc D-570 and D-970 bins
Request a quote
Need multiple units, a freight quote, or pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc IYF0900A is an air-cooled Indigo NXT modular cube ice machine head. Manitowoc rates it at 915 lb (3 ph) of half dice cube ice per 24 hours at 70°F air and 50°F water, and 700 lb (3 ph) at 90°F air and 70°F water. It runs on 208-230/60/3, with a minimum circuit ampacity of 7.2 amps and a maximum fuse size of 15 amps.
Specifications
| Ice shape | Half dice cube (3/8" x 1 1/8" x 7/8" (.95 x 2.86 x 2.22 cm)) |
|---|---|
| 24-hour production, 70°F air / 50°F water | 915 lb (3 ph) |
| 24-hour production, 90°F air / 70°F water | 700 lb (3 ph) |
| Cooling | Air cooled |
| Electrical | 208-230/60/3 |
| Minimum circuit ampacity | 7.2 amps (3 ph) |
| Maximum fuse size | 15 amps (3 ph) |
| Energy use per 100 lb of ice | 5.21 kWh |
| Potable water per 100 lb of ice | 19 Gal. (71.9 L) |
| Refrigerant | R-404A |
| Heat rejection (BTU/hr) | 12,700 (average), 14,800 (peak) |
| Dimensions | 30.00" (76.20 cm) W x 24.50" (62.23 cm) D x 26.50" (67.31 cm) H |
| Ambient air range | 40 to 110 F |
| Water temperature range | 40 to 90 F (4.4 to 32.2 C) |
| Water pressure | Min. 20 psi (137.9 kPA), Max. 80 psi (551.1 kPA) |
Compatibility
Manitowoc's spec sheet 6587E 08/2022 pairs the IYF0900A with the D-570 and D-970 bins.
Other models on the same Manitowoc spec sheet 6587E 08/2022: IDF-0900N, IYF-0900N, D-570, D-970 and JCF0900.
Installation
- Clearances: Top/sides: 8" (20.32 cm); Back is 5" (12.7 cm)
Accessories Manitowoc lists
- iAuCS (schedules and performs routine ice machine cleaning automatically)
- LuminIce II virus and bacteria inhibitor
- External scoop holder (NSF approved)
Source: Manitowoc spec sheet 6587E 08/2022. Specifications can change; check the data plate and the current Manitowoc documentation before installation.
Key features
- Up to 915 lb (3 ph) of half dice cube ice per 24 hours at 70°F air / 50°F water; 700 lb (3 ph) at 90°F / 70°F
- Half dice cube size: 3/8" x 1 1/8" x 7/8" (.95 x 2.86 x 2.22 cm)
- Air cooled, 208-230/60/3, min. circuit 7.2 amps, max. fuse 15 amps
- Dimensions: 30.00" (76.20 cm) W x 24.50" (62.23 cm) D x 26.50" (67.31 cm) H
- Pairs with Manitowoc D-570 and D-970 bins
Documents & downloads
Recently viewed
Searches related to this
Frequently asked questions
How much ice does the Manitowoc IYF0900A make per day?
The Manitowoc IYF0900A makes up to 915 lb (3 ph) of half dice cube ice per 24 hours at 70°F air and 50°F water, per Manitowoc spec sheet 6587E 08/2022. At 90°F air and 70°F water the rating is 700 lb (3 ph), so size for that figure if the room runs hot.
How do you clean the Manitowoc IYF0900A?
Manitowoc's spec sheet 6587E 08/2022 lists these cleaning features for the Manitowoc IYF0900A: iAuCS (schedules and performs routine ice machine cleaning automatically). Follow the cleaning and sanitizing steps in the Manitowoc installation, use and care manual for this model, linked on this page.
What electrical circuit does the Manitowoc IYF0900A need?
The Manitowoc IYF0900A runs on 208-230/60/3 with a minimum circuit ampacity of 7.2 amps and a maximum fuse size of 15 amps, per Manitowoc spec sheet 6587E 08/2022.
Which Manitowoc bin fits the IYF0900A?
Manitowoc spec sheet 6587E 08/2022 pairs the Manitowoc IYF0900A with the D-570 and D-970 bins.
What are the dimensions of the Manitowoc IYF0900A?
The Manitowoc IYF0900A measures 30.00" (76.20 cm) W x 24.50" (62.23 cm) D x 26.50" (67.31 cm) H, per Manitowoc spec sheet 6587E 08/2022.
How much water and electricity does the Manitowoc IYF0900A use?
Per Manitowoc spec sheet 6587E 08/2022, the Manitowoc IYF0900A uses 5.21 kWh of electricity and 19 Gal. (71.9 L) of potable water per 100 lb of ice.
