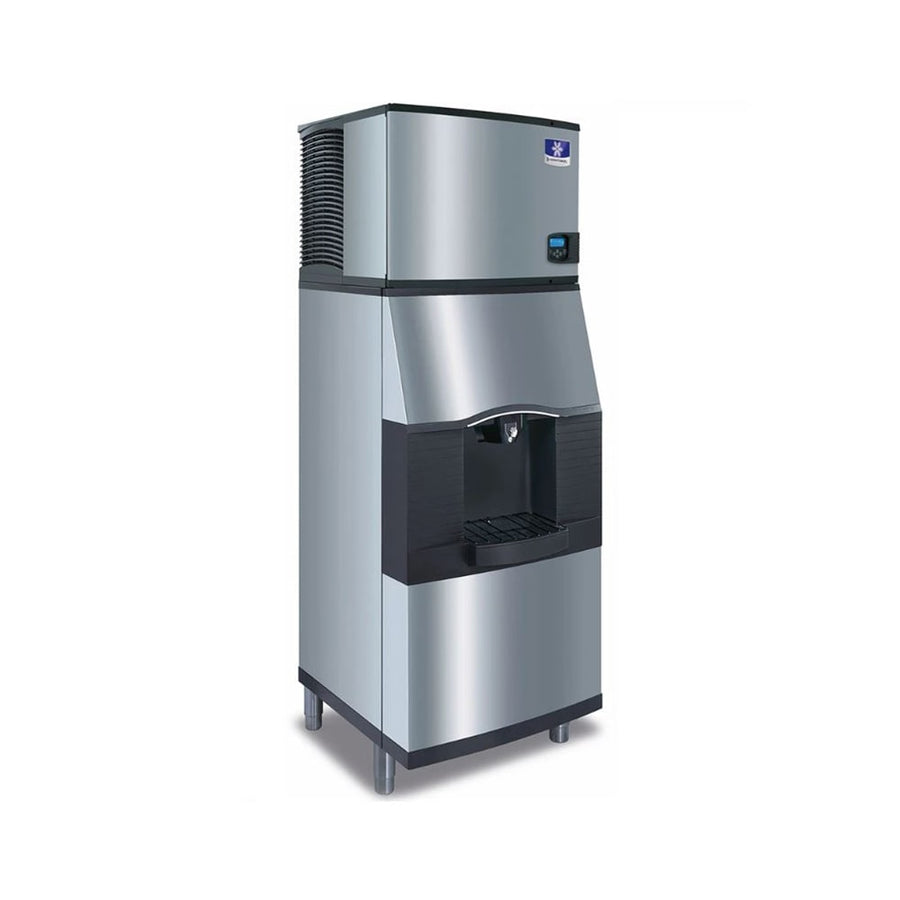

Manitowoc Indigo NXT IYP0800A/SFA292 Ice Dispenser — 745 lb/Day, Half Cube, Air Cooled, 180 lb Storage, 208/230V
Manitowoc Indigo NXT IYP0800A/SFA292 Ice Dispenser — 745 lb/Day, Half Cube, Air Cooled, 180 lb Storage, 208/230V
- Up to 745 lb/24 hr half cube production
- 180 lb insulated bin storage
- Air Cooled condensing
- Half Cube ice format
- 30 in W x 32 in D x 87 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc Indigo NXT IYP0800A/SFA292 produces up to 745 lb of half cube per 24 hours and stores it in a 180 lb insulated bin. It runs on air cooled condensing with R290 (Hydrocarbon) refrigerant on 208/230V power.
The half cube format gives you fast-cooling half-dice cubes ideal for soft drinks, mixed beverages, and quick fills.
Manitowoc's Indigo NXT platform pairs an easyTouch icon display with programmable production scheduling and guided one-touch cleaning for low-maintenance, high-volume service.
At a glance: 30 in W, 32 in D, 87 in H, 208/230V/60Hz/1Ph, 9.5, 1.6A, R290 (Hydrocarbon) refrigerant.
Key features
- Up to 745 lb/24 hr half cube production
- 180 lb insulated bin storage
- Air Cooled condensing
- Half Cube ice format
- 30 in W x 32 in D x 87 in H footprint
- 208/230V, 60Hz, 1Ph, 9.5, 1.6A
- R290 (Hydrocarbon) refrigerant
- Certified: ENERGY STAR, NSF, cULus Listed, cULus, AHRI
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 745 lb |
| Bin storage capacity | 180 lb |
| Ice type / cube size | Half Cube |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 30.0″ × 32.0″ × 87.0″ |
| Shipping weight | 432.0 lb |
| Electrical | 208/230 V · 60 Hz · 1 Ph · 9.5, 1.6 A |
| Water inlet | 0.38″ |
| Also known as | IYF0900A/SFA292 |
Documents & downloads
Certifications
Warranty
Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
