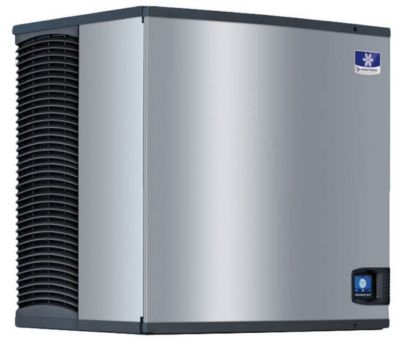

Manitowoc® Ice Machine 560 lb/24 hr 208-230 VAC Single-Phase IDT0620A-261
- Up to 560 lb (254 kg) of full dice cube ice per 24 hours at 70°F air / 50°F water; 450 lb (204 kg) at 90°F / 70°F
- Full dice cube size: 7/8" x 7/8" x 7/8" (2.22 x 2.22 x 2.22 cm)
- Air cooled, 115/60/1 standard (208-230/60/1 also available)
- Dimensions: 22" wide (55.88 cm) x 21.5" high (54.61 cm); depth not unambiguously labeled
- Pairs with Manitowoc D-400 (K00443 bin adapter required) and D-420 bins
Request a quote
Need multiple units, a freight quote, or pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc IDT0620A is an air-cooled Indigo NXT modular cube ice machine head. Manitowoc rates it at 560 lb (254 kg) of full dice cube ice per 24 hours at 70°F air and 50°F water, and 450 lb (204 kg) at 90°F air and 70°F water. It runs on 115/60/1 standard (208-230/60/1 also available).
Specifications
| Ice shape | Full dice cube (7/8" x 7/8" x 7/8" (2.22 x 2.22 x 2.22 cm)) |
|---|---|
| 24-hour production, 70°F air / 50°F water | 560 lb (254 kg) |
| 24-hour production, 90°F air / 70°F water | 450 lb (204 kg) |
| Cooling | Air cooled |
| Electrical | 115/60/1 standard (208-230/60/1 also available) |
| Minimum circuit ampacity | 12.2 (115v), 5.9 (208-230V) |
| Maximum fuse size | 20A for 115v, 15A for 208-230v |
| Energy use per 100 lb of ice | 5.18 kWh |
| Potable water per 100 lb of ice | 19.9 Gal. (75.3 L) |
| Refrigerant | R410A CFS - Free (lowers global warming by 48%) |
| Heat rejection (BTU/hr) | 5,400 (average), and 6,300 (peak) |
| Dimensions | 22" wide (55.88 cm) x 21.5" high (54.61 cm); depth not unambiguously labeled |
| Ambient air range | 40 to 110 F (4.4 to 43.3 C) |
| Water temperature range | 40 to 90 F (4.4 to 32.2 C) |
| Water pressure | Potable: Min. 20 psi (137.9 kPA), Max. 80 psi (551.1 kPA); Condenser: Min. 20 psi (137.9 kPA), Max. 276 psi (1902.95 kPA) |
Compatibility
Manitowoc's spec sheet 6408F 10/24 pairs the IDT0620A with the D-400 (K00443 bin adapter required) and D-420 bins.
Other models on the same Manitowoc spec sheet 6408F 10/24: IRT0620A, IYT0620A, IDT0620W, IYT0620W, D420 and D-400.
Installation
- Clearances: Top/side: 12" (30.50 cm), Back 5" (12.7 cm)
- 3/8" (0.95 cm) F.P.T. Water Condenser Inlet (water-cooled units)
- 1/2" (1.27 cm) F.P.T. Water Condenser Outlet (water-cooled units)
- 1/2" (1.27 cm) Auxillary Base Drain Socket
- 3/8" (0.95 cm) F.P.T. Ice Making Water Inlet
- 1/2" (1.27 cm) F.P.T. Ice Making Water Drain
- 3/4" (1.91 cm) Bin Drain
Accessories Manitowoc lists
- LuminIce II Viruses and Bacteria Inhibitor
- External Scoop holder
- Arctic Pure Plus (use with pre-filter recommended)
- iAuCS (schedules and performs routine ice machine cleaning automatically)
- K00443 bin adapter (required for D400 bin, sold separately)
Source: Manitowoc spec sheet 6408F 10/24. Specifications can change; check the data plate and the current Manitowoc documentation before installation.
Key features
- Up to 560 lb (254 kg) of full dice cube ice per 24 hours at 70°F air / 50°F water; 450 lb (204 kg) at 90°F / 70°F
- Full dice cube size: 7/8" x 7/8" x 7/8" (2.22 x 2.22 x 2.22 cm)
- Air cooled, 115/60/1 standard (208-230/60/1 also available)
- Dimensions: 22" wide (55.88 cm) x 21.5" high (54.61 cm); depth not unambiguously labeled
- Pairs with Manitowoc D-400 (K00443 bin adapter required) and D-420 bins
Documents & downloads
Recently viewed
Searches related to this
Frequently asked questions
How much ice does the Manitowoc IDT0620A make per day?
The Manitowoc IDT0620A makes up to 560 lb (254 kg) of full dice cube ice per 24 hours at 70°F air and 50°F water, per Manitowoc spec sheet 6408F 10/24. At 90°F air and 70°F water the rating is 450 lb (204 kg), so size for that figure if the room runs hot.
How do you clean the Manitowoc IDT0620A?
Manitowoc's spec sheet 6408F 10/24 lists these cleaning features for the Manitowoc IDT0620A: Easy-to-clean food zone: hinged front door swings out; removable water trough, distribution tube, curtain and sensing probes; AlphaSan antimicrobial components; Available LuminIce II inhibitor; Active Sense software for consistent harvest. Follow the cleaning and sanitizing steps in the Manitowoc installation, use and care manual for this model, linked on this page.
What electrical circuit does the Manitowoc IDT0620A need?
The Manitowoc IDT0620A runs on 115/60/1 standard (208-230/60/1 also available); minimum circuit ampacity as printed: 12.2 (115v), 5.9 (208-230V); maximum fuse size as printed: 20A for 115v, 15A for 208-230v, per Manitowoc spec sheet 6408F 10/24.
Which Manitowoc bin fits the IDT0620A?
Manitowoc spec sheet 6408F 10/24 pairs the Manitowoc IDT0620A with the D-400 (K00443 bin adapter required) and D-420 bins.
What are the dimensions of the Manitowoc IDT0620A?
The Manitowoc IDT0620A measures 22" wide (55.88 cm) x 21.5" high (54.61 cm); depth not unambiguously labeled, per Manitowoc spec sheet 6408F 10/24.
How much water and electricity does the Manitowoc IDT0620A use?
Per Manitowoc spec sheet 6408F 10/24, the Manitowoc IDT0620A uses 5.18 kWh of electricity and 19.9 Gal. (75.3 L) of potable water per 100 lb of ice.
