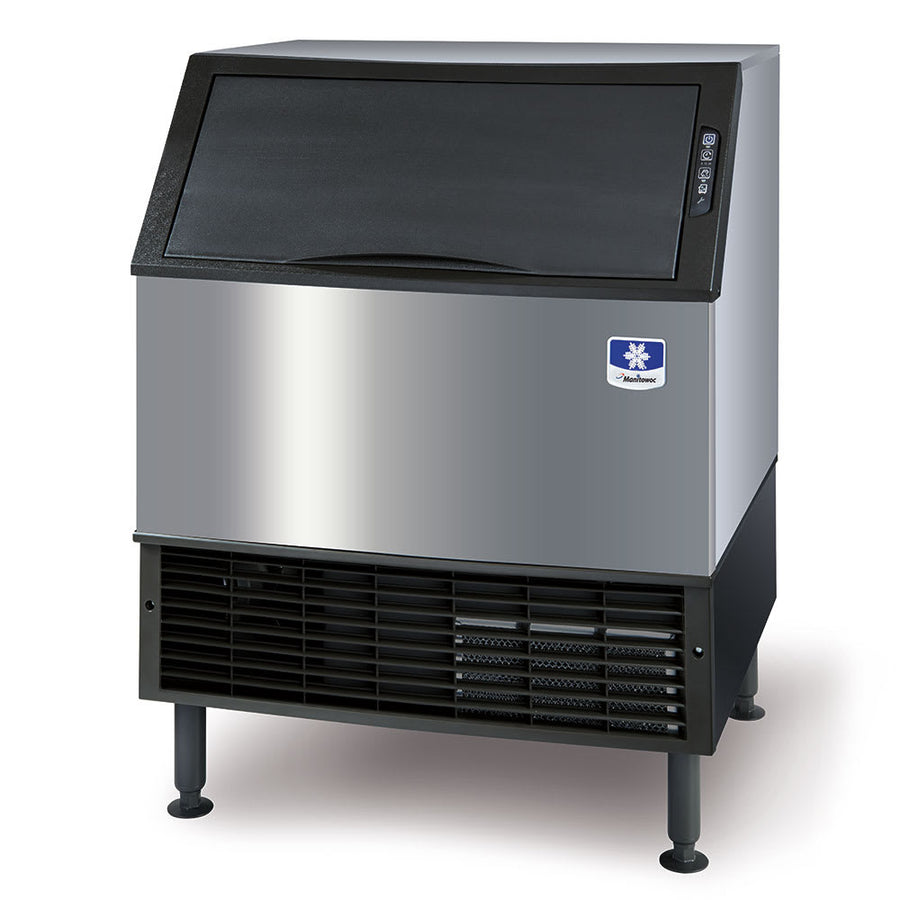

The Manitowoc UYF0310A packs a full day's ice supply into a 30-inch undercounter footprint, producing up to 290 pounds of half-dice ice every 24 hours (235 pounds AHRI certified) and storing 119 pounds right in its built-in bin. Half-dice cubes measure 3/8" x 7/8" x 1-1/8" — a shape that packs tightly in the glass, chills drinks fast, and stretches your ice supply further per pour, which is why it's the go-to format for bars, cafes, waitstations, and back-of-house beverage service.

As part of Manitowoc's NEO® series, this machine is built for tight spaces and busy staff. The slide-up bin door stays out of the walkway and out of your way while scooping, full-bin and service indicator lights give you machine status at a glance, and a programmable delay function pauses production during slow periods to cut energy use. When it's time to clean, the distribution tube, water trough, and damper door all remove without tools, and AlphaSan® antimicrobial protection inhibits bacteria growth on integral food-zone components between cleanings.

Key Features

• Up to 290 lb of half-dice ice per 24 hours; 235 lb AHRI-certified production
• Half-dice cube size: 3/8" x 7/8" x 1-1/8"
• 119-lb built-in storage bin with space-saving slide-up door
• Energy-saving delay function pauses ice production during slow periods
• Feedback program with full-bin and service indicator lights
• Self-contained air-cooled condensing system with front air intake and exhaust
• Removable, cleanable, reusable air filter
• Slide-off bin design gives quick access to refrigeration components for service
• Removable distribution tube, water trough, and damper door simplify cleaning
• AlphaSan® antimicrobial agent inhibits bacteria growth on integral components
• Electronic controls; 6" adjustable legs with flanged feet
• NSF, cULus, and CE certified

Installation & Utility Requirements

• Dimensions: 30"W x 28.5"D x 38.5"H (standard undercounter height)
• Electrical: 115V/60Hz/1-phase, 10 amps, 3/4 HP; 6-ft cord with NEMA 5-15P plug
• Water: 3/8" water inlet; gravity drain
• Air-cooled with front air intake and exhaust for flexible placement
• Heat rejection: 4,600 BTU average, 5,450 BTU peak
• R404A refrigerant; shipping weight 209 lb

Warranty

Backed by Manitowoc's 3-year warranty, with 5-year coverage on compressor parts.
