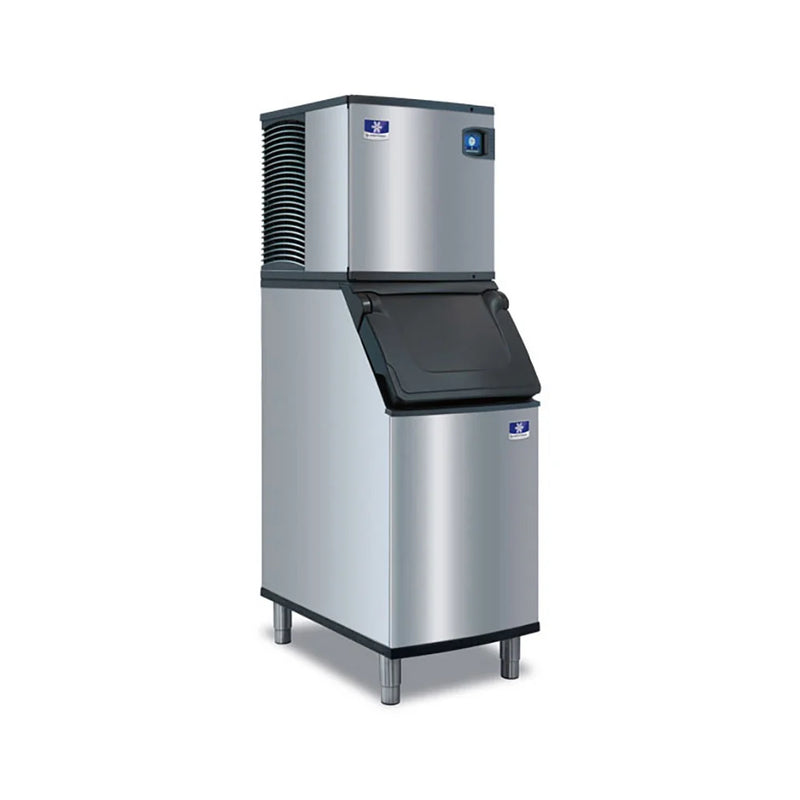

Manitowoc Ice IYT0620A/D420 575 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v
Manitowoc Ice IYT0620A/D420 575 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Producing half dice ice, the Manitowoc Ice IYT-0620A-161/D-420 Indigo NXT™ ice maker with bin is perfect for applications that serve soft drinks and blended frozen drinks. Each day, the unit can make as much as 575 pounds of ice, based on time of day or volume. Ice thickness and consistency are measured by the acoustical sensing probe. Preventive maintenance runs to monitor the system, and the unit provides diagnostic feedback.
The ice machine head dispenses into a bin that is AHRI certified to hold 310 pounds of ice. Self-latching, the door stays open when the operator is scooping. The door is set at a 53-degree angle, so it is easy to access the bin bottom. A 5.3-pound-capacity scoop is included with the Manitowoc Ice IYT-0620A-161/D-420 ice maker with bin. Its molded-in retaining lip maximizes the scooping capacity, while the knuckle and thumb guard prevent cross contamination.
Product Details
- Part of the Indigo NXT series
- 575-lb. maximum daily ice production
- 465-lb. AHRI-certified ice production
- Makes half cube ice
- easyTouch® display
- Daily ice production is programmable based on time of day or volume
- Acoustical sensing probe monitors thickness in every cycle
- 24-hr. preventive maintenance and diagnostic feedback
- Easy-to-access foodzone with a hinged, swing-out door
- Removable curtain, water probe, distribution tube, water pump, and water trough
- AlphaSan antimicrobial agent slows bacteria growth on some components
- DuraTech™ exterior is corrosion resistant and keeps fingerprints hidden
- Ambient air should be between 40-110 degrees F
- Incoming water should be between 40-90 degrees F
- 5,400-6,300 BTU
- 12.2 A, 5.18 kW
- 115 V/60 Hz/1 ph
- Ice dimensions: 0.375 in. x 1.125 in. x 0.875 in.
- Overall dimensions: 22 in. W x 34 in. D x 71.5 in. H
D-420 Ice Storage Bin
- Application Capacity: 383 lbs.
- AHRI-Certified Capacity: 310 lbs.
- Interior Liner: Arctic blue polyurethane
- Door Grips: Right, left, and center grips for flexible access
- Door Operation: Self-latching door stays open during scooping
- Door Angle: 53-degree opening provides access to the bottom of the bin
- Insulation: Foam-insulated door reduces condensation
- Ice Scoop Capacity: Ergonomic 5.3-lb. scoop included
- Scoop Safety: Built-in knuckle and thumb guard prevents hand contact with ice
- Scoop Storage: Molded-in retaining lip keeps scoop securely in place
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 575 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 383 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 253.00 |
