Manitowoc Ice IDT0420A/D320 470 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 264 lb Storage, Air…
Manitowoc Ice IDT0420A/D320 470 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 264 lb Storage, Air…
Replacement forManitowoc Ice ID0322A161B320
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

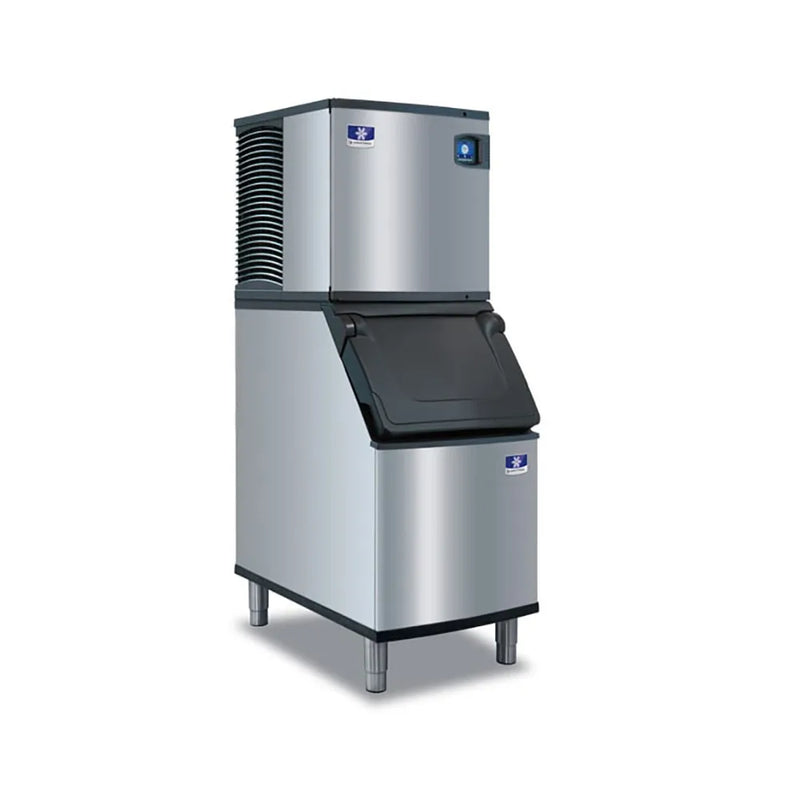

The Manitowoc IDT-0420A-161/D-320 ice maker and bin can produce 470 pounds of ice a day and can store 264 pounds of ice. With its easyTouch® display screen, the user can monitor the unit’s operating status. Users can program the amount of ice produced by the self-contained air-cooled refrigeration system based on time and the amount of ice needed. An acoustical sensing probe measures the thickness of the ice to ensure identical cube sizes. The hinged front door provides access to the internal components, which can be removed for maintenance and cleaning.
The Manitowoc IDT-0420A-161/D-320 Indigo NXT™ ice maker and bin has a DuraTech™ exterior that protects the surface from corrosion and dirt. A clear-coat finish on the ice machine further protects the exterior by resisting fingerprints and streaks. The ice bin’s insulated door reduces sweat buildup and keeps ice cold. While scooping ice, the bin door can be propped open with its self-latch. Side grips in the bin door enable the user to open it from nearly any position. An ice scoop with a 5.3-pound capacity is included with a built-in holder.
Ice Machine Head Details
- Part of the Indigo NXT series
- 470 lb. maximum daily ice production
- 375 lb. AHRI-certified daily ice production
- Ice size: 0.875 in. x 0.875 in. x 0.875 in.
- DuraTech exterior resists corrosion, dirt, and smudges
- Ice production programmable by amount or time
- Acoustical sensing probe ensures uniform cube thickness
- Self-contained, air-cooled refrigeration system
- easyTouch display shows operating status
- Removable internal components for easier cleaning
- Daily diagnostic feedback and preventive maintenance alerts
- Hinged front door opens for cleaning and servicing
- Refrigerant: R410A
- Required incoming water pressure: 20–80 PSI
- Required ambient air temperature: 40–110°F
- Required incoming water temperature: 40–90°F
- 6,000 BTU
Ice Bin Details
- Ice Storage Capacity: 264 lbs.
- AHRI-Certified Ice Storage Capacity: 210 lbs.
- Ice Scoop: Included with built-in holder
- Ice Scoop Capacity: 5.3 lbs.
- Door Operation: Self-latching door can be propped open during scooping
- Insulation: Insulated door reduces sweating and condensation
- Door Access: Built-in side grips allow lifting from nearly any position
- Interior Liner: Polyurethane
- Door Angle: 53 degrees for easy access
Dimensions & Utilities
- Ice Machine Head: 22 in. W x 24.5 in. D x 21.5 in. H
- Ice Bin: 22 in. W x 34 in. D x 38 in. H
- Electrical Load: 15 A, 5.6 kW
- Electrical Requirements: 115 V / 60 Hz / 1 ph
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 470 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 264 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 59.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 212.00 |
