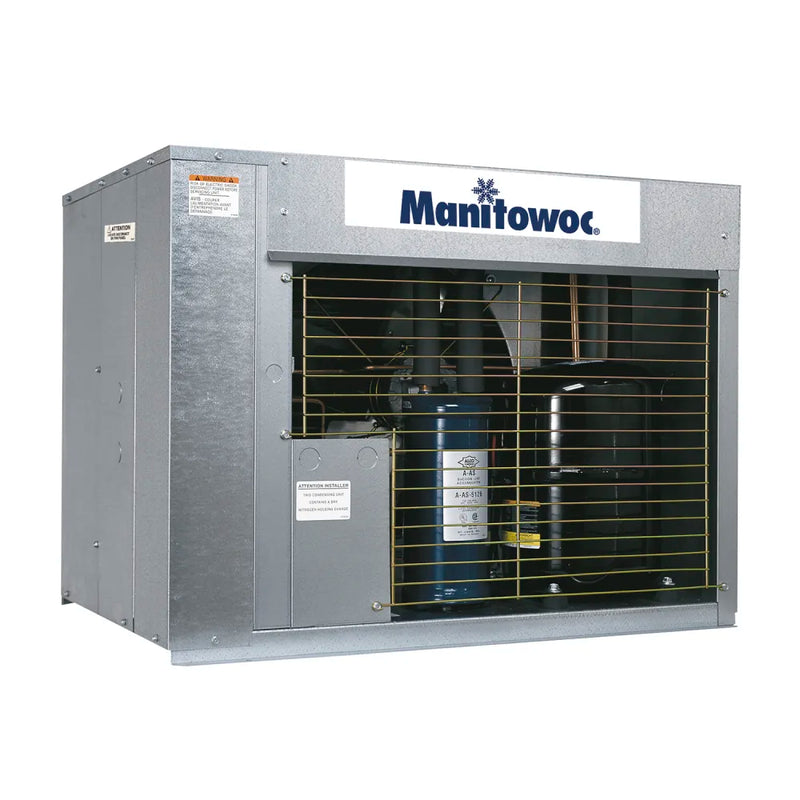

Manitowoc CVDF0900 Remote Air-Cooled Condensing Unit for IF-0900C & IBF-0820C
Manitowoc CVDF0900 Remote Air-Cooled Condensing Unit for IF-0900C & IBF-0820C
- Remote Air-Cooled Efficiency: The Manitowoc CVDF0900 relocates the ice machine compressor to improve kitchen comfort and noise levels.
- QuietQube System Match: Engineered specifically for IF-0900C and IBF-0820C series ice heads for whisper-quiet operation.
- Heavy-Duty Construction: Features a galvanized steel exterior designed to withstand outdoor weather extremes and industrial use.
- HVAC Cost Savings: Lowers indoor cooling requirements by venting heat exhaust outdoors rather than into the building.
- Industrial Power Spec: Operates on 208-230v/1ph electrical, providing reliable power for commercial ice production.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Manitowoc CVDF0900 is a high-efficiency remote air-cooled condensing unit engineered for use with Indigo® NXT QuietQube® ice machine heads, specifically the IF-0900C and IBF-0820C series. By moving the heat-generating compressor and condenser fan to a remote outdoor location, the CVDF0900 transforms your kitchen environment—eliminating the loud decibel levels and intense ambient heat common with standard ice machines. This remote system not only creates a more comfortable workspace but also significantly reduces the cooling load on your facility's HVAC system, leading to lower utility costs and more consistent ice production cycles.
- Compatibility: Optimized for Manitowoc IF-0900C and IBF-0820C QuietQube® Ice Heads
- Cooling Type: Remote Air-Cooled (CVD Technology)
- Electrical: 208-230V / 60Hz / 1-Phase
- Environmental Advantage: Diverts heat and noise away from the point of service
- Build Quality: Weather-protected galvanized steel housing for outdoor durability
- Performance: Supports high-volume ice production in high-ambient temperature conditions
- Installation: Requires dedicated refrigerant line sets (sold separately)
