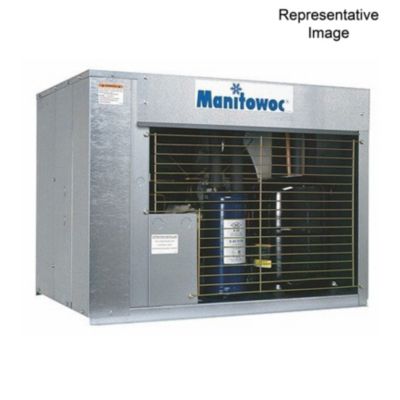

Manitowoc® Remote Ice Machine Condenser Air-Cooled 208-230 VAC CVDT1800-263

Ask a question Item # CVDT1800-263 In stock

Manitowoc® Remote Ice Machine Condenser Air-Cooled 208-230 VAC CVDT1800-263

Ask a question Item # CVDT1800-263
In stock
$4,16299 Web Price This is the manufacturer’s Minimum Advertised Price (MAP). Want a better price? Request a custom quote. Our team can unlock exclusive pricing, volume discounts, and project rates reserved for direct requests. Free and no obligation.
Sizing a system or quoting a job?Talk to an equipment specialist →
Ships LTL freight on a pallet
Typically 5-7 business days · Free freight to the 48 contiguous states
  • Remote cooled, 208-230/60/1 standard; 208-230/60/3
  • For Manitowoc IDT1830C and IYT1830C
  • BTU Per Hour: 27,000 (average) 31,000 (peak)
  • Compressor nominal rating: 2.5 HP
  • Warranty: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon-Fri 8:30-5 CT

Request a quote

Need multiple units, a freight quote, or pricing in writing before you order? Quotes back within 24 hours.

Request a quote

Overview

The Manitowoc CVDT1800 is a remote-cooled QuietQube remote condensing unit. It runs on 208-230/60/1 standard; 208-230/60/3.

Specifications

Cooling Remote cooled
Electrical 208-230/60/1 standard; 208-230/60/3
Minimum circuit ampacity 25 1ph / 20 3ph
Maximum fuse size 40 amps 1ph / 25 amps 3ph
Shipping weight 223 lb / 109 kg
BTU Per Hour 27,000 (average) 31,000 (peak)
Compressor nominal rating 2.5 HP
Ambient temperature range -20° to 130°F (-29° to 54°C)
Maximum Line Length 100' (30.5 m)
Maximum Vertical Rise 35' (10.7 m) above ice machine
Maximum Vertical Drop 15' (4.5 m) below ice machine
Matching ice machines IDT1830C, IYT1830C
Ambient air range Ice machine: 40° to 110°F (4.4° to 43.3°C); Condensing unit: -20° to 130°F (-29° to 54°C)
Water temperature range 40° to 90°F (4.4° to 32.2°C)
Water pressure Ice Maker Water In: Min. 20 psi (137.9 kPA), Max. 80 psi (551.1 kPA)

Compatibility

Ice machines Manitowoc lists for it: IDT1830C and IYT1830C.

Other models on the same Manitowoc spec sheet 6765G 10/23: IDT1830C, IYT1830C, D-970 and LB1760.

Installation

  • Clearances: 2" top, 8" sides, 5" back. Additional space may be needed for servicing
  • 3/8" (0,95 cm) F.P.T. Ice Making Water Inlet
  • 1/2" (1,27 cm) F.P.T. Ice Making Water Drain
  • CVDT1800: Electrical Entrance (2) Options; Optional Suction & Liquid Line Connections; Suction & Liquid Line Connections

Accessories Manitowoc lists

  • LuminIce Virus and Bacteria Inhibitor
  • iAuCS (schedules and performs routine ice machine cleaning automatically)
  • Arctic Pure Plus Water Filters (reduces sediments and contaminants down to 0.5 microns, and 95% of chlorine taste & odor; pre-filter recommended)
  • RC-20 interconnecting tubing (20 ft / 6 m, 14 lb / 6 kg)
  • RC-30 interconnecting tubing (30 ft / 9 m, 20 lb / 9 kg)
  • RC-50 interconnecting tubing (50 ft / 15 m, 31 lb / 14 kg)
  • S-Trap Kit K-00166 (required for rise over 20' (6 m), ordered separately)

Warranty

Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor (as printed on Manitowoc spec sheet 6765G 10/23).

Source: Manitowoc spec sheet 6765G 10/23. Specifications can change; check the data plate and the current Manitowoc documentation before installation.

Key features

  • Remote cooled, 208-230/60/1 standard; 208-230/60/3
  • For Manitowoc IDT1830C and IYT1830C
  • BTU Per Hour: 27,000 (average) 31,000 (peak)
  • Compressor nominal rating: 2.5 HP
  • Warranty: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor

Searches related to this

$4,162.99

Frequently asked questions

How far can the Manitowoc CVDT1800 be from the ice machine?

Per Manitowoc spec sheet 6765G 10/23: 2" top, 8" sides, 5" back. Additional space may be needed for servicing

What electrical circuit does the Manitowoc CVDT1800 need?

The Manitowoc CVDT1800 runs on 208-230/60/1 standard; 208-230/60/3; minimum circuit ampacity as printed: 25 1ph / 20 3ph; maximum fuse size as printed: 40 amps 1ph / 25 amps 3ph, per Manitowoc spec sheet 6765G 10/23.

What outdoor temperatures is the Manitowoc CVDT1800 rated for?

Manitowoc spec sheet 6765G 10/23 rates the Manitowoc CVDT1800 for an ambient range of -20° to 130°F (-29° to 54°C).

What Manitowoc equipment works with the CVDT1800?

Manitowoc spec sheet 6765G 10/23 pairs the Manitowoc CVDT1800 with these ice machines: IDT1830C and IYT1830C.

What warranty does Manitowoc give on the CVDT1800?

Manitowoc spec sheet 6765G 10/23 lists this warranty for the Manitowoc CVDT1800: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor.

How much does the Manitowoc CVDT1800 weigh?

Manitowoc spec sheet 6765G 10/23 lists a shipping weight of 223 lb / 109 kg for the Manitowoc CVDT1800.
