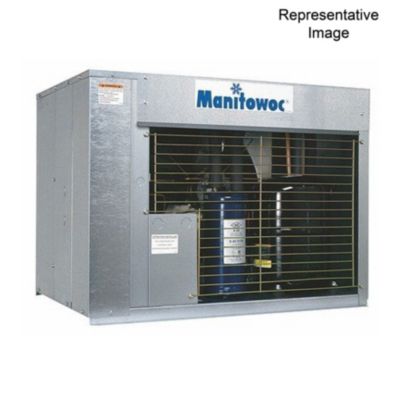

Manitowoc® Remote Ice Machine Condenser Air-Cooled 208-230 VAC CVDT1800-261
- Remote cooled, 208-230/60/1 standard; 208-230/60/3
- For Manitowoc IDT1830C and IYT1830C
- BTU Per Hour: 27,000 (average) 31,000 (peak)
- Compressor nominal rating: 2.5 HP
- Warranty: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor
Request a quote
Need multiple units, a freight quote, or pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc CVDT1800 is a remote-cooled QuietQube remote condensing unit. It runs on 208-230/60/1 standard; 208-230/60/3.
Specifications
| Cooling | Remote cooled |
|---|---|
| Electrical | 208-230/60/1 standard; 208-230/60/3 |
| Minimum circuit ampacity | 25 1ph / 20 3ph |
| Maximum fuse size | 40 amps 1ph / 25 amps 3ph |
| Shipping weight | 223 lb / 109 kg |
| BTU Per Hour | 27,000 (average) 31,000 (peak) |
| Compressor nominal rating | 2.5 HP |
| Ambient temperature range | -20° to 130°F (-29° to 54°C) |
| Maximum Line Length | 100' (30.5 m) |
| Maximum Vertical Rise | 35' (10.7 m) above ice machine |
| Maximum Vertical Drop | 15' (4.5 m) below ice machine |
| Matching ice machines | IDT1830C, IYT1830C |
| Ambient air range | Ice machine: 40° to 110°F (4.4° to 43.3°C); Condensing unit: -20° to 130°F (-29° to 54°C) |
| Water temperature range | 40° to 90°F (4.4° to 32.2°C) |
| Water pressure | Ice Maker Water In: Min. 20 psi (137.9 kPA), Max. 80 psi (551.1 kPA) |
Compatibility
Ice machines Manitowoc lists for it: IDT1830C and IYT1830C.
Other models on the same Manitowoc spec sheet 6765G 10/23: IDT1830C, IYT1830C, D-970 and LB1760.
Installation
- Clearances: 2" top, 8" sides, 5" back. Additional space may be needed for servicing
- 3/8" (0,95 cm) F.P.T. Ice Making Water Inlet
- 1/2" (1,27 cm) F.P.T. Ice Making Water Drain
- CVDT1800: Electrical Entrance (2) Options; Optional Suction & Liquid Line Connections; Suction & Liquid Line Connections
Accessories Manitowoc lists
- LuminIce Virus and Bacteria Inhibitor
- iAuCS (schedules and performs routine ice machine cleaning automatically)
- Arctic Pure Plus Water Filters (reduces sediments and contaminants down to 0.5 microns, and 95% of chlorine taste & odor; pre-filter recommended)
- RC-20 interconnecting tubing (20 ft / 6 m, 14 lb / 6 kg)
- RC-30 interconnecting tubing (30 ft / 9 m, 20 lb / 9 kg)
- RC-50 interconnecting tubing (50 ft / 15 m, 31 lb / 14 kg)
- S-Trap Kit K-00166 (required for rise over 20' (6 m), ordered separately)
Warranty
Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor (as printed on Manitowoc spec sheet 6765G 10/23).
Source: Manitowoc spec sheet 6765G 10/23. Specifications can change; check the data plate and the current Manitowoc documentation before installation.
Key features
- Remote cooled, 208-230/60/1 standard; 208-230/60/3
- For Manitowoc IDT1830C and IYT1830C
- BTU Per Hour: 27,000 (average) 31,000 (peak)
- Compressor nominal rating: 2.5 HP
- Warranty: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor
Documents & downloads
Recently viewed
Searches related to this
Frequently asked questions
How far can the Manitowoc CVDT1800 be from the ice machine?
Per Manitowoc spec sheet 6765G 10/23: 2" top, 8" sides, 5" back. Additional space may be needed for servicing
What electrical circuit does the Manitowoc CVDT1800 need?
The Manitowoc CVDT1800 runs on 208-230/60/1 standard; 208-230/60/3; minimum circuit ampacity as printed: 25 1ph / 20 3ph; maximum fuse size as printed: 40 amps 1ph / 25 amps 3ph, per Manitowoc spec sheet 6765G 10/23.
What outdoor temperatures is the Manitowoc CVDT1800 rated for?
Manitowoc spec sheet 6765G 10/23 rates the Manitowoc CVDT1800 for an ambient range of -20° to 130°F (-29° to 54°C).
What Manitowoc equipment works with the CVDT1800?
Manitowoc spec sheet 6765G 10/23 pairs the Manitowoc CVDT1800 with these ice machines: IDT1830C and IYT1830C.
What warranty does Manitowoc give on the CVDT1800?
Manitowoc spec sheet 6765G 10/23 lists this warranty for the Manitowoc CVDT1800: Commercial: Ice Maker three (3) years parts and labor; Evaporator five (5) years parts and labor; Compressor five (5) years parts, three (3) years labor.
How much does the Manitowoc CVDT1800 weigh?
Manitowoc spec sheet 6765G 10/23 lists a shipping weight of 223 lb / 109 kg for the Manitowoc CVDT1800.
