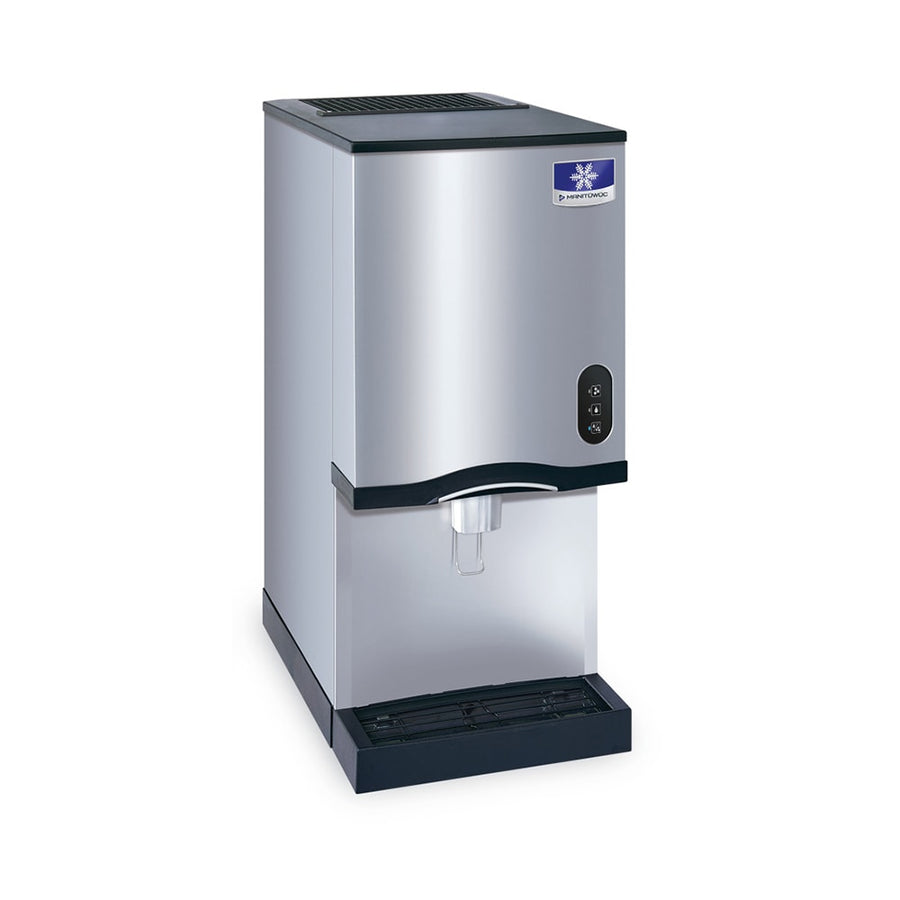

Manitowoc CNP0201A-L Ice Dispenser — 285 lb/Day, Nugget, Air Cooled, 10 lb Storage, 115V
Manitowoc CNP0201A-L Ice Dispenser — 285 lb/Day, Nugget, Air Cooled, 10 lb Storage, 115V
- Up to 285 lb/24 hr nugget production
- 10 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 16.25 in W x 24 in D x 35 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc CNP0201A-L produces up to 285 lb of nugget per 24 hours and stores it in a 10 lb insulated bin. It runs on air cooled condensing with R290 (Hydrocarbon) refrigerant on 115V power.
The nugget format gives you soft, chewable nugget ice that's popular for healthcare, smoothies, and beverage service.
At a glance: 16.25 in W, 24 in D, 35 in H, 115V/60Hz/1Ph, 10.3A, R290 (Hydrocarbon) refrigerant.
Key features
- Up to 285 lb/24 hr nugget production
- 10 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 16.25 in W x 24 in D x 35 in H footprint
- 115V, 60Hz, 1Ph, 10.3A
- R290 (Hydrocarbon) refrigerant
- Certified: NSF, cULus Listed, cULus, CE
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 285 lb |
| Bin storage capacity | 10 lb |
| Ice type / cube size | Nugget |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 16.25″ × 24.0″ × 35.0″ |
| Shipping weight | 187.0 lb |
| Electrical | 115 V · 60 Hz · 1 Ph · 10.3 A |
| Water inlet | 0.38″ |
| Also known as | CNF-0201A-L |
Documents & downloads
Certifications
Warranty
2-year, 5-year Compressor Parts
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
