LogiCO2 Mk9 CO2 Sensor
LogiCO2 Mk9 CO2 Sensor
- NDIR infrared CO2 sensor with a 0 to 3% measuring range; display shows CO2 level and temperature.
- Pre-set alarm levels: 5,000 ppm alert, 5,000 ppm 8-hour TWA, 1.5% and 3.0% CO2.
- Mounts no more than 12 in (30 cm) above the floor; IP56, indoor use, 32 to 113°F.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

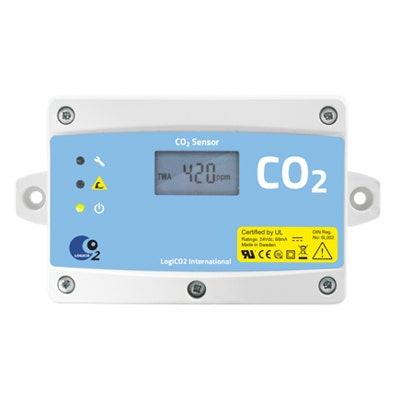

A replacement detector for a LogiCO2 Mk9 safety system, or a single stand-alone CO2 alarm point. It reads CO2 by infrared and alarms at pre-set levels.
LogiCO2 supplies this sensor as a spare part without cable. It runs stand-alone or connected to the LogiCO2 Central Unit, on 24V DC from a separate transformer. Mount it no more than 12 in (30 cm) above the floor.
Features
- Monitors STEL and 8-hour TWA levels, so peaks and slow build-up both raise an alarm.
- Shows CO2 level and temperature at the sensor.
- Self-calibrates at regular intervals.
Specifications
| Measuring range | 0 to 3% CO2 by volume |
|---|---|
| Pre-set alarms | 5,000 ppm alert and TWA; 1.5%; 3.0% |
| Power | 24V DC |
| Connection | RJ45, RS485 Modbus |
| Environment | IP56, indoor use, 32 to 113°F |
Compatibility
For LogiCO2 Mk9 safety systems; the manual calls for a central unit for full functionality. LogiCO2 lists the package contents as the detector only, supplied without cable.
More from LogiCO2
Shop all LogiCO2 →Recently viewed
Searches related to this
Frequently asked questions
Can the LogiCO2 Mk9 CO2 sensor work without a central unit?
LogiCO2 says it can be used as a stand-alone unit, connected to the LogiCO2 Central Unit, or as a sensor in a larger computerised monitoring system. The Mk9 manual adds that the sensor should be connected to a central unit for full functionality.
What comes in the box with the Mk9 CO2 sensor?
The detector only. LogiCO2's data sheet lists it as a spare part without cable, and a separate transformer supplies the 24 V power.
How high off the floor should the Mk9 CO2 sensor be mounted?
LogiCO2's manual gives a maximum height of 30 cm (12 in) from the floor and no more than 5 m (16.4 ft) from the CO2 distribution point. One sensor covers a maximum of 78 m2 (840 sq ft).
