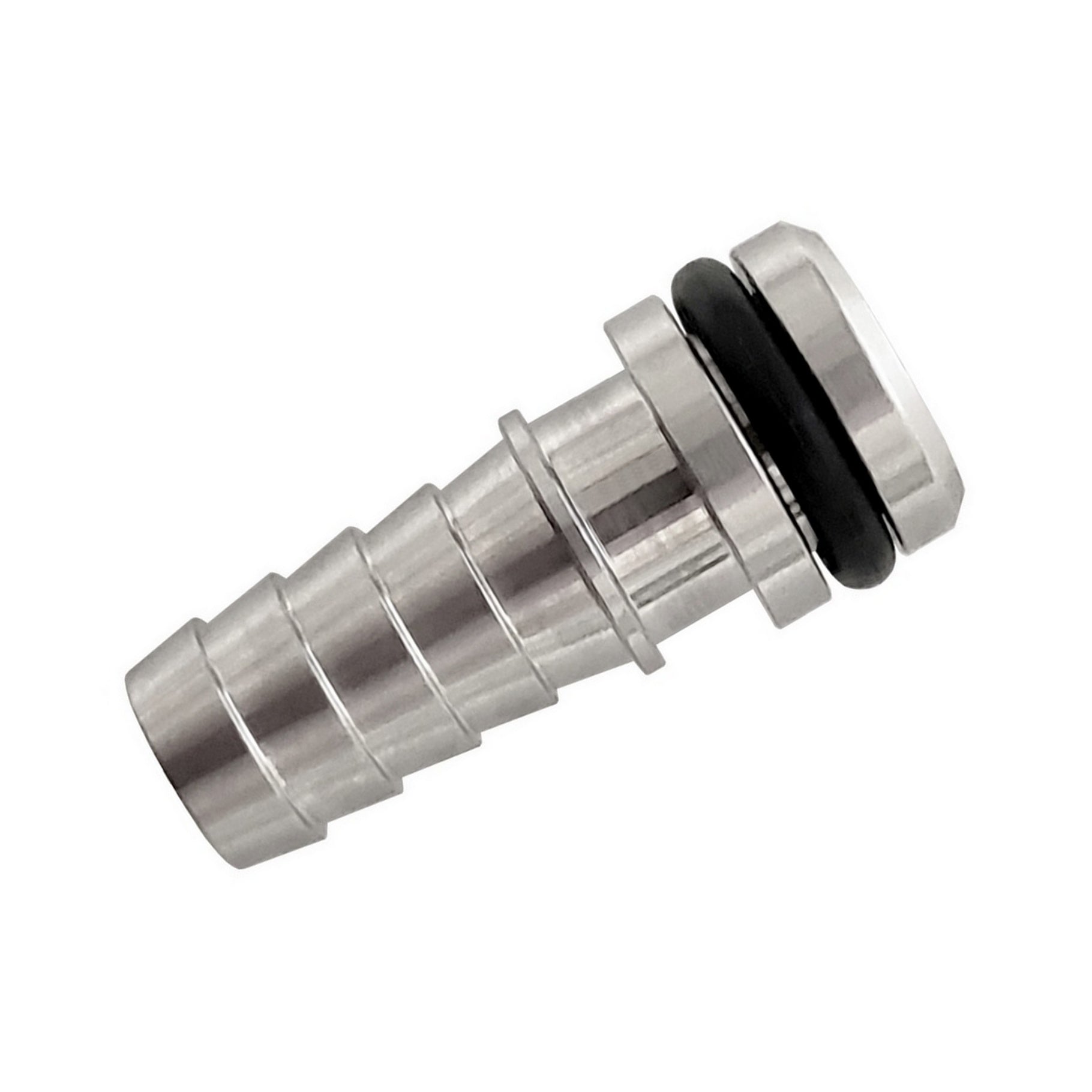

3/8" Barb 304 Stainless Steel Liquid Fitting | Compatible with Flojet FJ Series Pumps

Ask a question Item # 04C03306 In stock

3/8" Barb 304 Stainless Steel Liquid Fitting | Compatible with Flojet FJ Series Pumps

In stock
$184$2.30Save $0.46
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
  • Connection Size: 3/8" Hose Barb (Fits 3/8" ID Vinyl or Braided Tubing).
  • Material: 100% 304 Stainless Steel (Food Grade & Acid Resistant).
  • Pump Compatibility: Fits Flojet G55, G57, 5000 Series, and FJ Style ports.
  • Seal Type: O-ring slide-port design for rapid, tool-free installation.
  • Durability: Eliminates the cracking and flavor-absorption issues of plastic fittings.
  • Application: Ideal for Soda, Wine-on-Tap, Cold Brew Coffee, and Syrup dispensing.

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
(888) 964-4239 Chat with a tech

Request a quote

Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

Request a quote

The 3/8" Barb 304 Stainless Steel Liquid Fitting is a precision-engineered connector designed for high-performance beverage dispensing. This fitting is the industrial-standard bridge for Flojet G-Series, 5000 Series, and FJ Style gas or liquid pumps. By utilizing a 3/8" hose barb, it allows for a high-flow connection to standard beverage tubing, ensuring your pump operates at peak efficiency without flow restriction.

Constructed from 304-grade stainless steel, this fitting is an essential upgrade over standard plastic ports. Stainless steel is non-porous and chemically inert, meaning it will not absorb flavors from pungent syrups or degrade when exposed to the high acidity found in wine, fruit juices, or soda concentrates. The machined O-ring groove ensures a perfect, airtight seal within the pump's slide-port, eliminating the "air-gulping" issues that cause pumps to cycle and fail prematurely.

Why Professionals Choose 3/8" Stainless Ports: Plastic fittings are the "weakest link" in a pump rack—they are prone to hairline fractures and port-snaps during routine maintenance. This stainless steel fitting provides a permanent, heavy-duty solution. It allows for the use of Oetiker-style stepless clamps to be crimped tightly onto the barb without the risk of crushing the fitting, ensuring a 100% leak-proof system in high-volume commercial environments.

Technician's Fitment Check: This is a "Slide-Port" fitting. To install, pull the grey or red slide-clip on your Flojet pump out, insert this fitting until it bottoms out, and push the clip back in to lock. Clamp Recommendation: For standard 3/8" ID x 1/2" OD tubing, use a 15.7mm or 17.0mm Stepless Clamp for a permanent, vibration-proof seal.
