Home » Lancer Agitator Pin Retainer for IBD Units - 03-0368-SP

Lancer Agitator Pin Retainer for IBD Units - 03-0368-SP

Ask a question Item # 03-0368-SP In stock

Lancer Agitator Pin Retainer for IBD Units - 03-0368-SP

Ask a question Item # 03-0368-SP
In stock
$146
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
  • Ensures secure power transfer.
  • Prevents agitating components from slipping.
  • Official Lancer OEM precision part.
  • SKU: 03-0368-SP

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
(888) 964-4239 Chat with a tech

Request a quote

Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

Request a quote

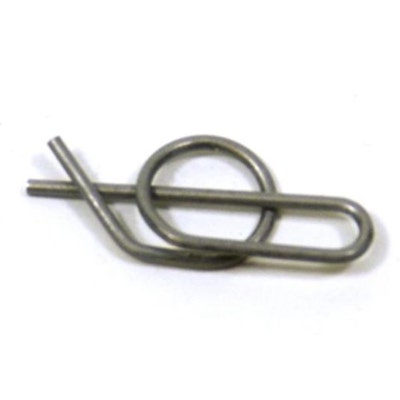

The Lancer Retainer Agitator Pin is a specialized mechanical locking fastener responsible for securing the agitator bars to the motor drive shaft. Engineered for high-vibration environments, it ensures the drive link stays in place while breaking up hundreds of pounds of ice daily.

Problem Solved: Restores the specific mechanical function and service life of your Lancer system. Replaces loose or missing pins that allow the agitator to slip, leading to 'ice bridging' where the bin remains full but no ice reaches the glass.

Symptoms of Failure: Motor humming without ice movement, audible mechanical clanking inside the bin, or the agitator bar disconnecting from the drive hub.

Technician’s Note: Never reuse a bent or stretched retainer pin. The centrifugal force of the ice wheel will eventually eject a compromised pin, which can then jam the dispense auger or fall into the customer's glass. Ensure the pin is fully clicked into the shaft groove.
Technical Specifications:
  • Manufacturer: Lancer
  • Application: Agitator Shaft Component Retention
  • Compatibility: Standard Lancer IBD Series
  • Material: High-Tensile Stainless Steel

Searches related to this

Lancer dispensing partsLancer partsLancer replacement partsLancer accessoriesCommercial Beverage SystemsDispensing PartsLancer IBD PartsLancer Replacement PartsStainless steel faucets

Where this part is used

Found on these diagrams

All diagrams →

This part is a callout on the exploded diagrams below. Open one here — the matching pin opens highlighted so you can see exactly where it fits.

Lancer IBD22 IBD30 Post-Mix Final Assembly Diagram

This part is highlighted on the diagram

Lancer IBD22 IBD30 Post-Mix Final Assembly Diagram schematic

Click a numbered pin to view part details
