Lancer 230V 0.6A 25W Motor AC SP UB 1500 CCW - 91-0130-SP
Lancer 230V 0.6A 25W Motor AC SP UB 1500 CCW - 91-0130-SP
- Restores cooling water circulation.
- Prevents ice bank 'bridging' and freeze-ups.
- High-efficiency 230V commercial design.
- Official Lancer OEM agitating motor.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

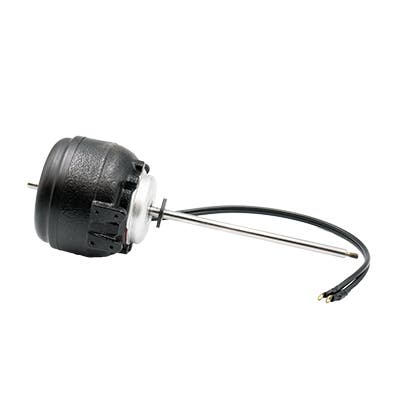

The Lancer 230V Motor AC SP UB (91-0130-SP) is a high-torque agitation motor designed for the water bath in Lancer refrigeration systems. Operating at 230V and 0.6A, this motor drives the propeller that circulates water across the cold plates and evaporator coils, ensuring uniform chilling and preventing the formation of a solid ice block.
Symptoms of Failure: If the compressor is running but the drinks are warm, check this motor. A failed agitator motor causes the water bath to stagnate, leading to 'bridging'—where ice grows too thick in one spot while leaving the rest of the tank warm. A loud humming without rotation indicates a failed start capacitor or a seized motor bearing.
- Voltage: 230V / 50-60Hz
- Current: 0.6A / 25W
- Rotation: CCW (Counter-Clockwise)
- Fit: Lancer 1500 Series Refrigeration Decks
