Lancer 115V 1.4A 35W CW Agitator Motor - 91-0017-SP
Lancer 115V 1.4A 35W CW Agitator Motor - 91-0017-SP
- Restores cooling water circulation.
- Prevents ice bank 'bridging' freeze-ups.
- High-torque 115V commercial design.
- SKU: 91-0017-SP
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

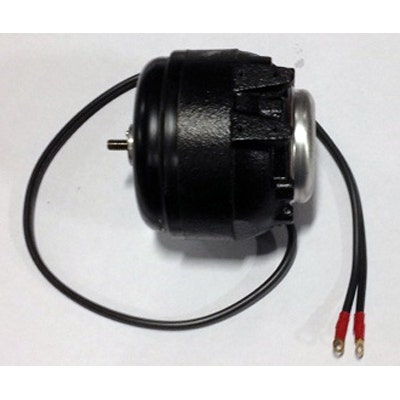

The Lancer 115V 1.4A Motor AC SP UB 115/60 35W 1500 CW is the electrical agitating drive responsible for maintaining the ice bank's water circulation. Operating with a Clockwise (CW) rotation, it drives the propeller that moves water across the evaporator coils to ensure uniform chilling and prevent the bath from freezing into a solid block.
Problem Solved: Restores circulation to prevent 'bridging'—where ice freezes solid around the product coils—ensuring even cooling across all circuits. Fixes 'warm soda' issues caused by stagnant water baths.
Symptoms of Failure: A loud humming noise from the unit top without rotation, warm drinks at the tap despite the compressor running, or the motor frame becoming hot to the touch indicating a internal short.
- Voltage: 115V / 60Hz
- Current/Power: 1.4A / 35W
- Rotation: CW (Clockwise)
- Series: 1500 Series Chilling Decks
