Lancer 230V 6-Valve IBD22H Dispenser Cube Ice - 85-4536H-101

Ask a question Item # 85-4536H-101 In stock

Lancer 230V 6-Valve IBD22H Dispenser Cube Ice - 85-4536H-101

In stock
$471719
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
  • Superior ice retention in hot areas.
  • 6 precision LEV valves for stable ratios.
  • High-efficiency cold plate cooling.
  • SKU: 85-4536H-101

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
(888) 964-4239 Chat with a tech

Request a quote

Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

Request a quote

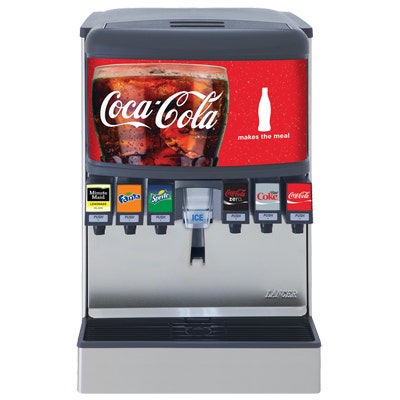

The Lancer 230V 6-Valve IBD22H Dispenser is a 22-inch wide beverage station designed for high-efficiency operation in international or high-voltage domestic accounts. The 'H' designation indicates the High-Performance insulation package, which minimizes ice melt-down and ensures that serving temperatures remain at 40°F or below even in hot ambient environments.

What it Solves: Corrects 'warm drink' issues and excessive ice melt in busy serving areas. Its integrated cold plate technology ensures that every drink served has optimal carbonation levels by keeping the product chilled to peak CO2-absorption temperatures.

Symptoms of Failure: Beverages served warm during high-volume surges, excessive ice melt despite being indoors, or finding that the internal bin clumping is causing agitator jams.

Technician’s Note: Check the agitator bar timing. If the agitator isn't cycling correctly, the ice will 'bridge' over the cold plate, resulting in warm drinks even when the bin looks full. Verify the 230V supply is dedicated to avoid board resets.Technical Specifications:
  • Voltage: 230V / 50-60Hz
  • Valve Count: 6 LEV Precision Valves
  • Cooling: Integrated Cold Plate
  • Width: 22 Inches
  • Insulation: High-Performance H-Grade
