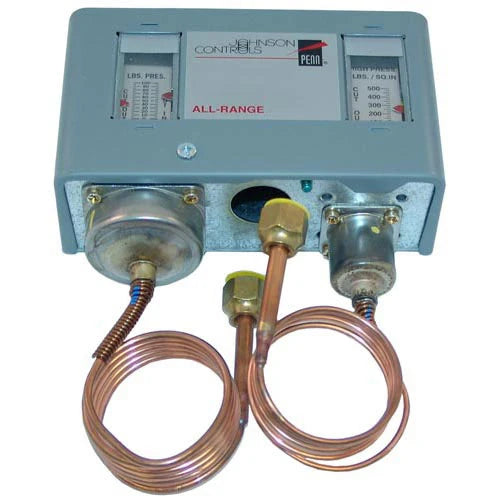

Johnson Controls Dual Pressure Control W/ Limited Knob Adjustment - P70LB-1
Johnson Controls Dual Pressure Control W/ Limited Knob Adjustment - P70LB-1
- Height (in.): 3
- Width (in.): 7
- Genuine Johnson Controls part P70LB-1
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Johnson Controls P70LB-1 is a Dual Pressure Control W/ Limited Knob Adjustment. It gives the operator control of the function behind it. Replacement is usually called for when you are seeing a control that spins freely, will not index, or has lost its markings.
It also cross-references 5 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
JOHNSON CONTROL FOR DUAL PRESSURE APPLICATIONS. ALL RANGE CONTROL RANGE 20" TO 100" (-68 TO 690 kPa) DIFFERENTIAL MIN 6" (41 kPa) MAX 50" (345 kPa) PRESSURE CONNECTION 36" CAP W/ 1/4" FLARE NUT HIGH PRESSURE SIDE RANGE 100" TO 500" (690 TO 3447 kPa) NON ADJ DIFFERENTIAL 65" (448 kPa) FIXED LIMITED KNOB ADJ (SUPPLIED/NOT ASSEMBLED) LOW, CUT-OUT SWITCH ACTION SPST CODE P70LB-1C, NON-CORROSIVE REFRIGERANTS DESIGNED PRIMARILY FOR LOW PRESSURE CUT-OUT CONTROL AND CAPACITY CONTROL ON COMMERCIAL REFRIGERATION AND AIR CONDITIONING APPLICATIONS.
Specifications
| Connection Size | 1/4 in flare nut |
| Height (in) | 3 |
| Plating | Non-corrosive refrigerants |
| Psi | 20 to 100 low range, 100 to 500 high range |
| Width (in) | 7 |
Cross-reference
- Johnson Controls: JOCP70LB-1, JOCP70LB1, P70LB-1, P70LB-1C, P70LB1
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
