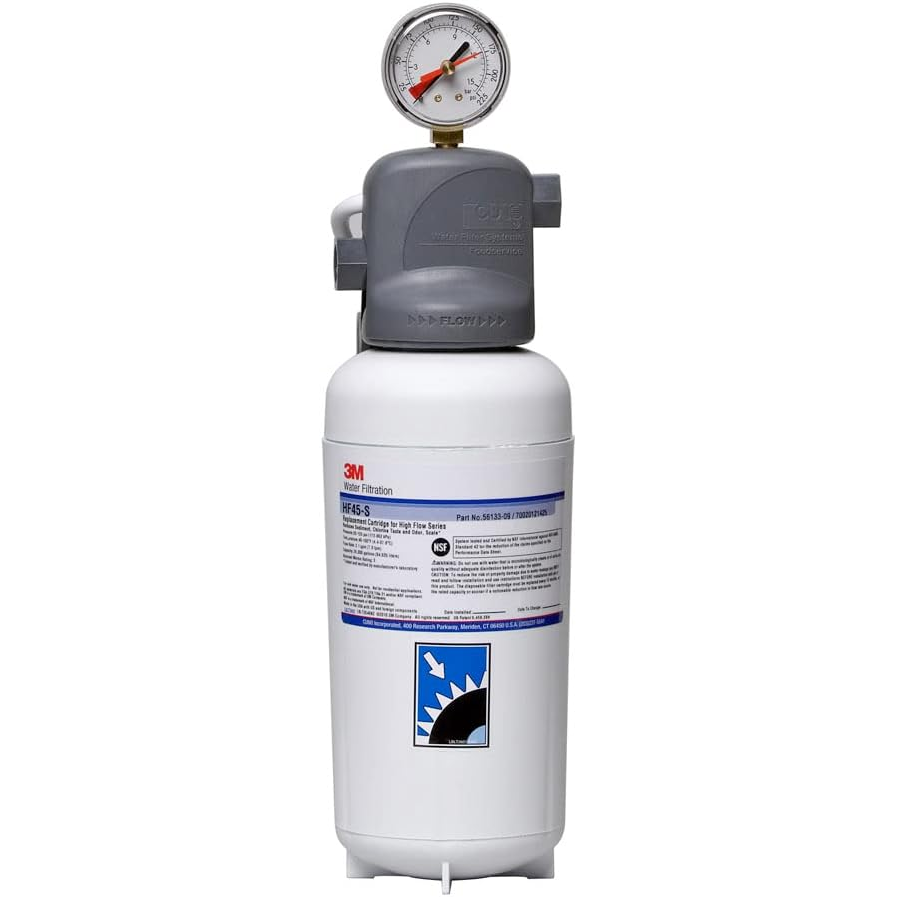

ICE145-S Single Cartridge Ice Machine Water Filtration System - 3 Micron Rating and 2.1 GPM

More from: 3M
In stock
Item: 09A05153
(0)
Regular price $370.45
Found a lower price? Request Price Match

Quick Overview

  • Engineered for high turbidity water applications.
  • Delivers high-quality water for commercial ice machines by reducing scale, sediment, chlorine taste, and odor.
  • Employs the innovative Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media.
  • Incorporates a built-in scale inhibitor to prevent lime scale build-up and chlorine corrosion.
  • Offers a capacity of 25,000 gallons (94,635 liters) and a flow rate of 2.1 gallons per minute (7.9 liters per minute).
  • Features a patented valve-in-head design for easy cartridge replacement.
  • Uses Sanitary Quick Change (SQC) cartridge design to minimize leakage and contamination during change-outs.
  • Includes 3/8" FNPT horizontal inlet and outlet ports for direct or adaptable connections to plumbing lines.
  • Compatible with selected ice makers from Manitowoc, Scotsman, Hoshizaki, Ice-O-Matic, and Koolaire.
  • Designed for low flow cubers up to 1,000 lb (454 kg), high flow cubers to 600 lb (272 kg), and flakers to 1,800 lb (816 kg).
  • Has a 3.0 micron rating for exceptional filtration quality.
  • Maximum operating pressure: 125 psi (862 kPa) at 100 degrees F (37.8 degrees C).
  • Replacement cartridge: HF45-S (3M part number: 56133-09).
  • Includes NSF Performance Data Sheet (PDS).
  • NSF listed for quality assurance.
These bullet points can be included in your HTML code where needed. Be sure to keep the
    tag to define the start of the list and the
tag to define the end. Each individual bullet point should be within
  • (list item) tags.
  • Product Overview


    Introducing the ICE145-S, an advanced single cartridge water filtration system by 3M, masterfully engineered for high turbidity water applications. It excels in delivering pristine, high-quality water for commercial ice machines by effectively eliminating scale, sediment, chlorine taste, and odor.

    Uniquely, the ICE145-S utilizes the innovative Integrated Membrane Pre-Activated Carbon Technology (IMPACT), a dual-zone media amalgamation. This system blends a premium activated carbon series with a membrane, enhancing filtration efficacy. In addition, the built-in scale inhibitor mitigates lime scale accumulation and chlorine corrosion effects, providing reliable service for up to 25,000 gallons or 94,635 liters at flow rates reaching 2.1 gallons per minute (7.9 liters per minute).

    This state-of-the-art system embraces the patented valve-in-head design. With this, cartridge replacements become effortless - the valve shuts off and vents water simultaneously, eliminating the need to halt the upstream feed water. Moreover, the system's Sanitary Quick Change (SQC) cartridge design minimizes leakage and contamination risks during cartridge change-outs, requiring just a 1/4 turn.

    For seamless installation and connection, the ICE145-S is equipped with 3/8" FNPT horizontal inlet and outlet ports that link directly or are easily adaptable to plumbing lines.

    The ICE145-S showcases exceptional compatibility, working harmoniously with selected ice makers from Manitowoc, Scotsman, Hoshizaki, Ice-O-Matic, and Koolaire. It's optimally designed for low flow cubers up to 1,000 lb (454 kg), high flow cubers to 600 lb (272 kg), and flakers to 1,800 lb (816 kg). With a 3.0-micron rating, this system guarantees superb filtration.

    ICE145-S's features include:

    • Application: High turbidity water
    • Comprehensive system: Head assembly with integral mounting bracket, pressure gauge, single cartridge filter
    • Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual-zone media
    • Valve-In-Head water filter system
    • Automatic 1/4 turn shut-off valve
    • Maximum pressure: 125 psi (862 kPa) at 100 degrees F (37.8 degrees C)
    • 3/8" FNPT horizontal inlet and outlet ports
    • Replacement cartridge: HF45-S (3M part number: 56133-09)

    Benefits of the ICE145-S:

    • Versatile compatibility: Works with select ice makers from Manitowoc, Scotsman, Hoshizaki, Ice-O-Matic, and Koolaire
    • NSF Performance Data Sheet (PDS) included
    • NSF listed

    Dimensions: Height: 14-7/8" Width: 4-1/2"

    Enjoy the peace of mind that comes with the ICE145-S water filtration system, where innovation meets efficiency to provide top-quality water for your commercial needs.
