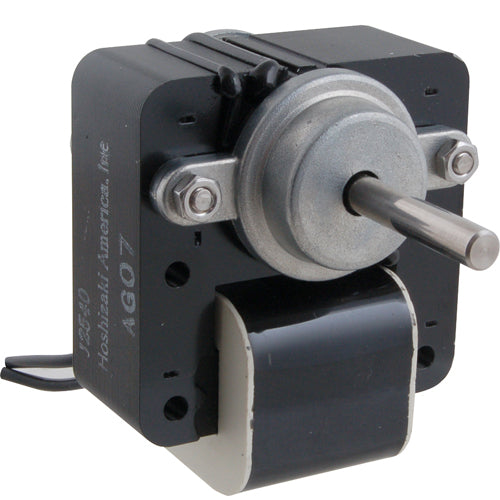

Hoshizaki Evaporator Motor 120V, Cwse - HS-5039
Hoshizaki Evaporator Motor 120V, Cwse - HS-5039
- Length: 2 3/4" 70 mm
- Voltage: 120 V AC
- Outer Diameter: 6 mm 1/4" SHAFT SCREW CENTERS: 2" 51 mm ROTATION: CLOCKWISE FROM SHAFT END SHAFT END
- Height (in.): 6
- Length (in.): 30.38
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Hoshizaki HS-5039 is an Evaporator Motor 120V, Cwse. It transfers heat into or out of the refrigerant circuit. Replacement is usually called for when you are seeing poor cooling, frost patterns on part of the coil, or long run times.
It also cross-references 13 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Specifications
| Length | 2 3/4" 70 mm |
| Voltage | 120 V AC |
| Outer Diameter | 6 mm 1/4" SHAFT SCREW CENTERS: 2" 51 mm ROTATION: CLOCKWISE FROM SHAFT END SHAFT END |
| Height (in) | 6 |
| Length (in) | 30.38 |
| Weight (lb) | 5.02 |
| Width (in) | 12.25 |
Cross-reference
- Hoshizaki: 4A2563-01, HOS4A2563-01, HOSHS-5039, HOSHS-5039-KIT, HOSHS-5039KIT, HOSHS5039, HOSHS5039KIT, HS-5039, HS-5039-KIT, HS-5039KIT, HS5039, HS5039KIT, HSK039KIT
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
