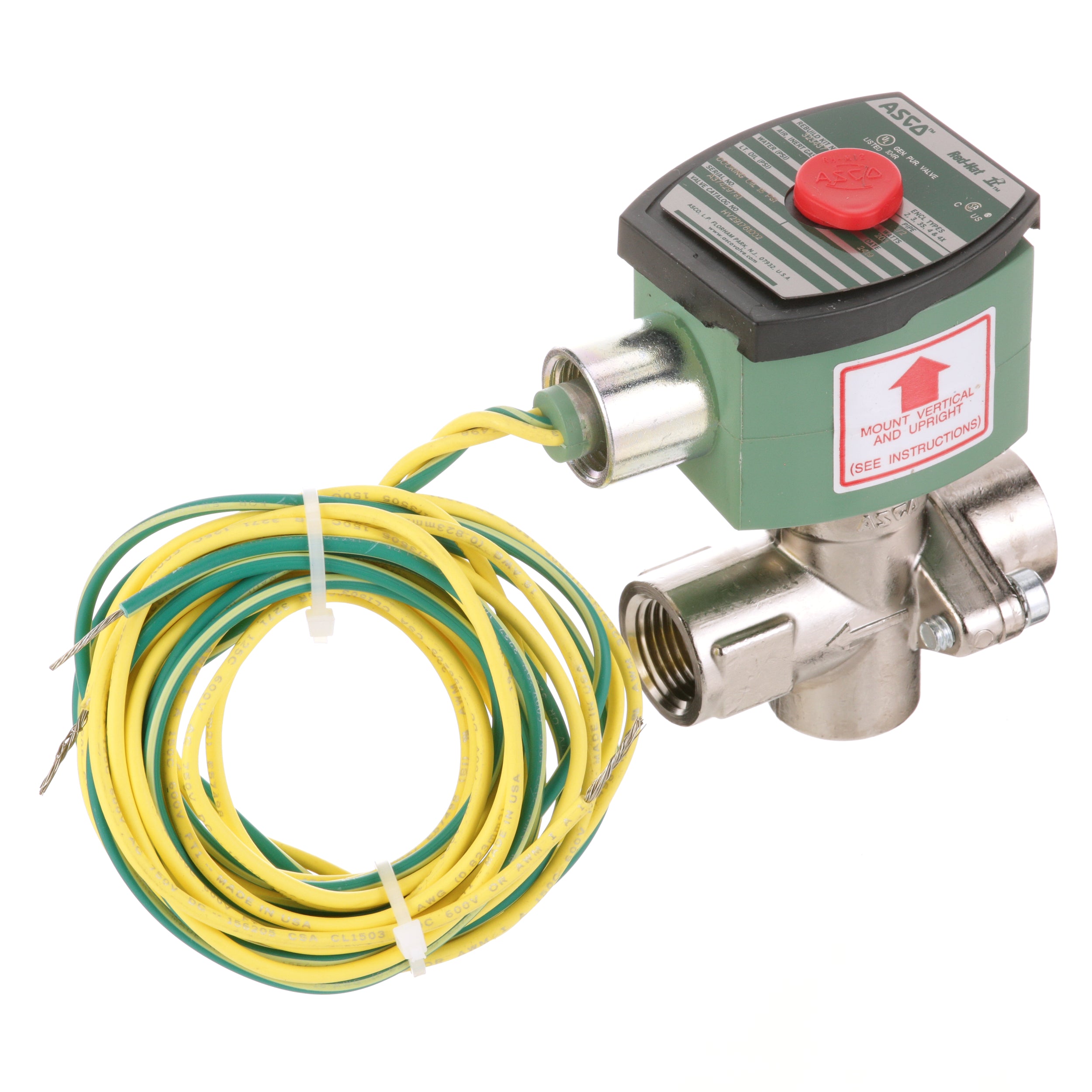

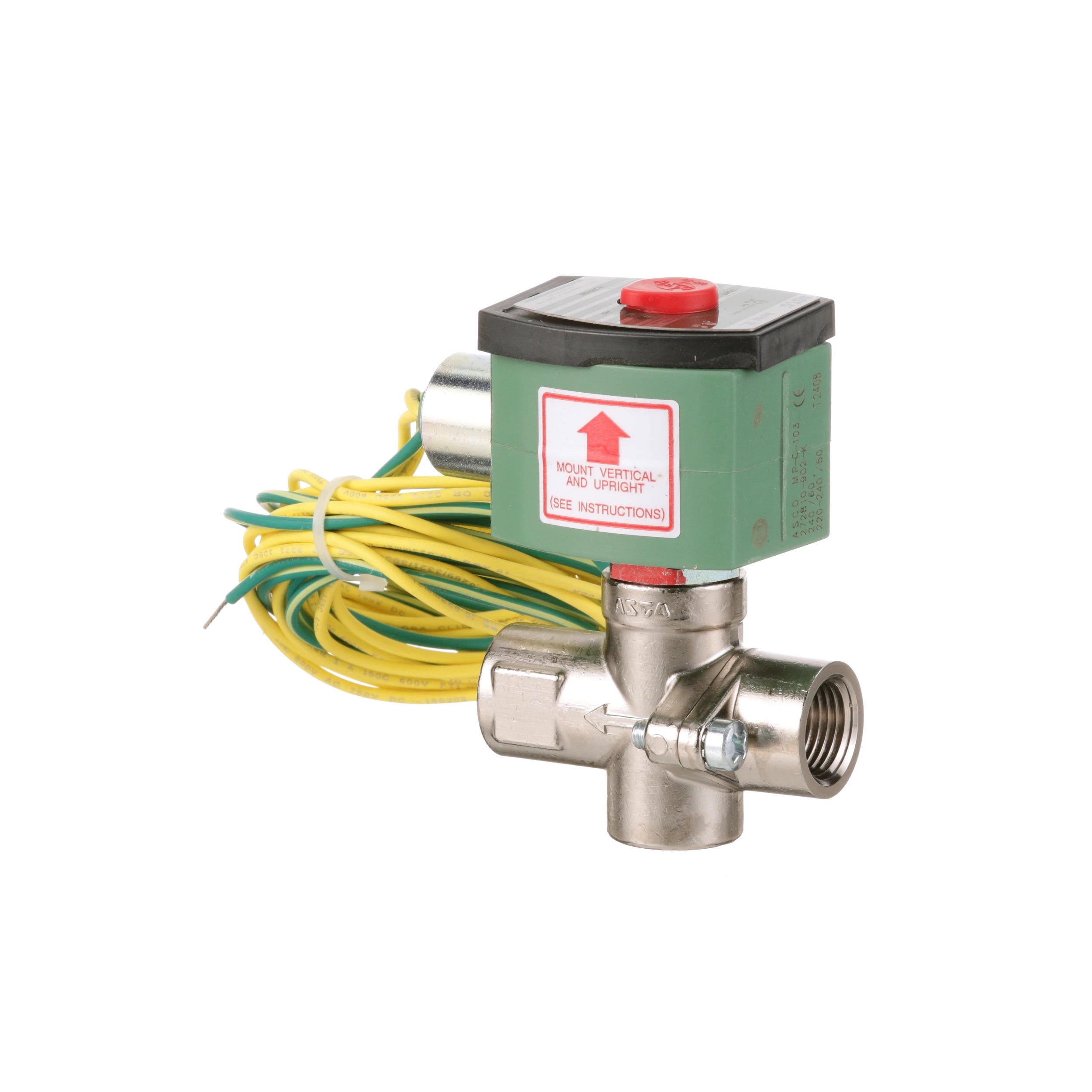

Henny Penny Solenoid Valve 1/2 in. NPT inlet and outlet (CFE SERIES, CFE-410) - 154048
Henny Penny Solenoid Valve 1/2 in. NPT inlet and outlet (CFE SERIES, CFE-410) - 154048
- Listed fitment: 31 models across 1 brand
- Height: 4-3/8"
- Length: 6FTWIRE LEADS
- Material: BRASS, NATIONAL PIPE TAPER: 1/2"INLET AND OUTLET
- Type: NORMALLY CLOSED
All compatible models
31 modelsVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Henny Penny 154048 is a Solenoid Valve 1/2" NPT inlet and outlet. It opens and closes the flow circuit on an electrical signal. Replacement is usually called for when you are seeing no flow when energised, flow that continues after shut-off, or an audible buzz without actuation.
Listed fitment covers 31 models across 1 brand, including Henny Penny CFE SERIES, CFE-410, CFE-415. It also cross-references 4 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Specifications
| Depth | 3-1/2" |
| Height | 4-3/8" |
| Length | 6FTWIRE LEADS |
| Material | BRASS, NATIONAL PIPE TAPER: 1/2"INLET AND OUTLET |
| Plating | NICKEL-PLATED |
| Type | NORMALLY CLOSED |
| Voltage | 240V AC |
| Wattage | 20.1 W |
| Weight | 2.065LB |
| Width | 2-1/16" |
Listed fitment
- Henny Penny: CFE SERIES, CFE-410, CFE-415, CFE-420, CFE-427, EEE SERIES, EEE-141, EEE-142, EEE-143, EEE-144, EEE-153, EEE-154, EEE-15X, EEE-181, EEE-182, EEE-183, EEE-184, EEG SERIES, EEG-142, EEG-143, EEG-144, EEG-153, EEG-154, LVE SERIES, LVE-102, LVE-103, LVE-104, LVG SERIES, LVG-102, LVG-103, LVG-104
Cross-reference
- Henny Penny: 154048, 74582, HEN154048, HEN74582
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
