Gastite Gas Pipe Fitting 1.3" ASTM A47 32510 Malleable Iron 25 PSI 3-PORTMAN
Gastite Gas Pipe Fitting 1.3" ASTM A47 32510 Malleable Iron 25 PSI 3-PORTMAN
- 1.3" gas pipe fitting
- ASTM A47 32510 Malleable Iron construction
- Rated to 25 PSI
- UL Recognized
- Genuine Gastite part 3-PORTMAN
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

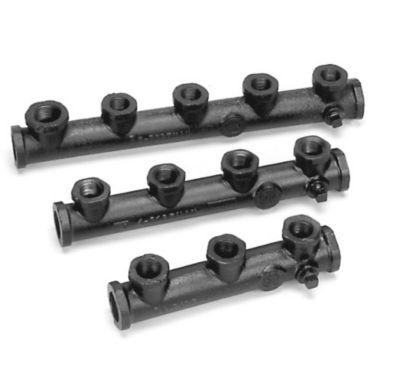

The Gastite 3-PORTMAN is a 1.3" gas pipe fitting for gas piping and appliance connection. Gastite - 3-PORTMAN - Manifold - Cast 3 Port 3/4"F x 3 @ 1/2"F x 1/2"F
Specifications
| Composition | ASTM A47 32510 Malleable Iron |
| Connection Size | 3/4" x 1/2" x 1/2" |
| Maximum Pressure (PSI) | 25 |
| For Use With | Gastite/FlashShield CSST |
| Approvals | UL Recognized |
| Country of Origin | CHN |
| Fitting Size | 3/4" x 1/2" |
| Inside Diameter | 1" |
| Outside Diameter | 1.3" |
| Overall Length | 7 5/8" |
| Pressure Rating | 25 PSI |
| Tube Size | 3/4"F x 3@1/2"F x 1/2"F |
Gastite publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
