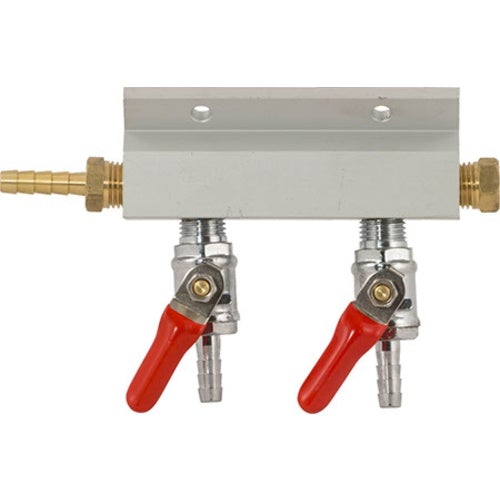

1/4 inch Barb/Stem Gas Distribution Co2 Distributor Manifold w/ Integrated Check Valves
$3499
1/4 inch Barb/Stem Gas Distribution Co2 Distributor Manifold w/ Integrated Check Valves
1/4 inch Barb/Stem Gas Distribution Co2 Distributor Manifold w/ Integrated Check Valves
In stock
$3499$35.99Save $1
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- 🍺 Gas Manifold, Machined from a single piece of aluminum with built-in check valve protects your shunt and prevents gas backflow.
- 🍺 Designed with a 2-point screw hole on the top for easy installation to other equipment. 1/4" threaded ports barbed inlet and 1/4" barbed outlets.
- 🍺 The distributor allows you to split the gas supply into multiple lines. Each line has its own shutoff valve. Chrome Plated valves with spring loaded Ball check valve.
- 🍺 Due to the one-way valve mechanism, the pressure drop between the ball valves in these manifolds is approximately 2 psi. You will need to set the pressure on the regulator to 2 psi above the pressure required in the keg.)
- 🍺 Made of prime aluminum, brass and stainless steel material, which is extremely durable.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Manifolds are a great way to have one CO2 tank supply multiple kegs. This manifold is made from aluminum, brass, and stainless. It also works up to 100 psi and includes 1/4 in ball valves with built in check valves. Another ball valve can be added to the end of the manifold for an additional gas line.
Features:
- 1/4 in ball valves
- 1/2 in barb
- Rated up to 100 psi
- Screw holes for easy mounting
- Optional additional port on the end
