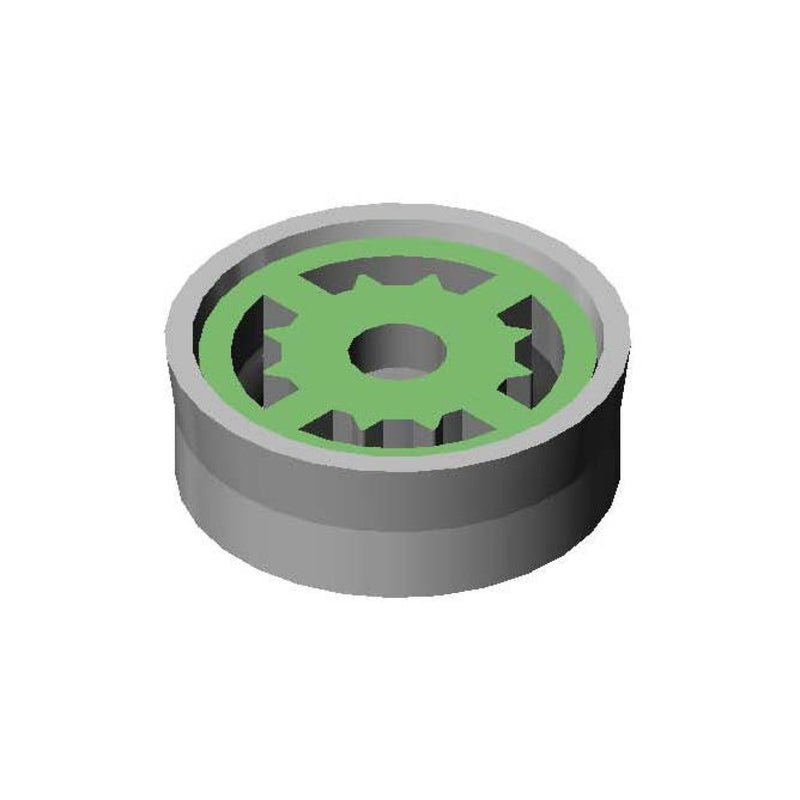

T&S Brass FD05 0.5 GPM Flow Control Disc - Lime Insert for Commercial Faucets
$1399
T&S Brass FD05 0.5 GPM Flow Control Disc - Lime Insert for Commercial Faucets
On Sale
T&S Brass FD05 0.5 GPM Flow Control Disc - Lime Insert for Commercial Faucets
In stock
$1399$14.47Save $0.48
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- Ultra-Efficient 0.5 GPM
- Lime Color-Coded Insert
- LEED Platinum Optimized
- Pressure Compensating
- Public Utility Grade
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The T&S Brass FD05 Flow Control Disc is the pinnacle of water conservation hardware. Featuring a Lime Insert, this disc provides a precise 0.5 GPM flow rate, the lowest available in the T&S lineup. This ultra-low flow is specifically intended for public hand-washing stations where water-saving compliance is the primary objective. The internal pressure-compensating mechanism ensures a functional multi-stream spray pattern even at this restricted volume, preventing splashing while maximizing every drop of water used.
Maintenance Tip: Due to the tiny orifices required for a 0.5 GPM flow, these lime discs are highly susceptible to clogging from pipe scale. We strongly recommend installing an inline sediment filter for any plumbing run using 0.5 GPM outlets. If the flow becomes inadequate, the disc should be replaced or deep-cleaned in a sonic bath to restore the spray pattern.
- Flow Rate: 0.5 GPM (1.9 L/min).
- Color Code: Lime Green Insert.
- Function: Ultra-High Efficiency Regulation.
- Application: Stadiums, Parks, and Institutional Sinks.
- Standard: CALGreen and LEED Compliant.
