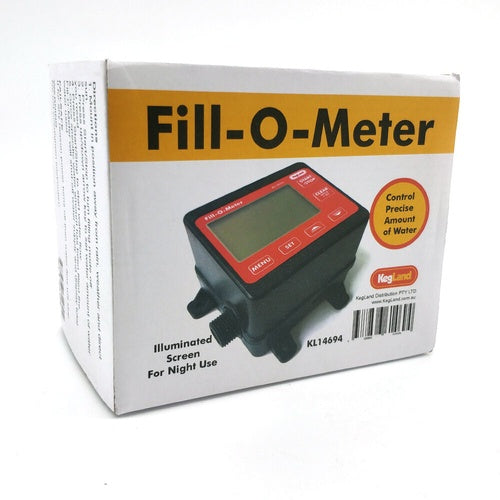

Fill-O-Meter - Water Measuring Flow Meter Device - KL14694

More from: KegLand
In stock
Item: BE671
(1)
Regular price $115.69
Regular price Save 17% $138.83 Sale price $115.69
Found a lower price? Request Price Match

Quick Overview

  • No more spillovers!
  • Set your desired volume and walk away
  • Automatically collect water while you tend to other tasks
  • Great for collecting brewing water or mixing your cleaning and sanitizing chemicals

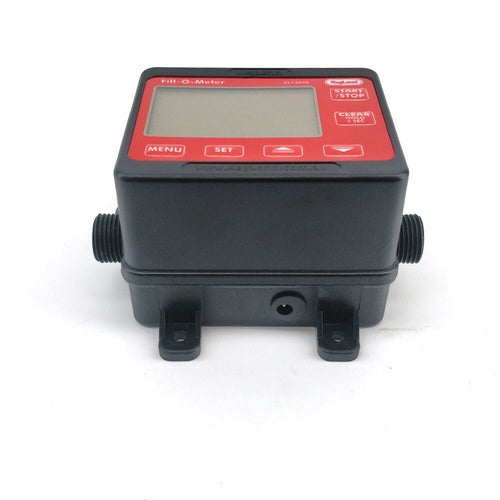

  • Illuminated display in splash resistant housing
  • Integrated solenoid valve cuts off flow when your set volume is dispensed

Product Overview


Unlike other hose timers that simply measure time, the Fill-O-Meter measures volume and will automatically turn off when the programmed volume of water is dispensed. Enter your desired volume of water, press Start, and tend to other brew day prep work. Install in-line with your water filter to automatically collect filtered strike water, or measure out how much water you need to mix with cleaning chemicals for a precise dilution ratio.

We recommend setting up the Fill-O-Meter with either Duotight fittings or Type A Camlocks. Thread tape will be required for the Camlock. Use sparingly as too much plumber's tape can damage the plastic thread. And it is very important to never overtighten!

  • Displays real time flow rate and volume (Liters/Min or Gallons/Min)
  • Accurately measures and controls volumes at flow rates from 1-30L/Min (0.26-7.9Gal/Min)
  • Never overfill or spillover again
  • Splash resistant housing
  • Great for filling tanks, brewing kettles, distilling gear, mixing liquid and many other applications
  • Integrated flow meter and solenoid valve
  • Illuminated display for usage in the evening
  • Integrated sound alarm
  • Easy 1/2" BSP Inlet and Outlet
  • Automatic failsafe - flow is stopped if the unit loses power

Important Notes:
DO NOT flow liquid the wrong direction, it will break the unit.

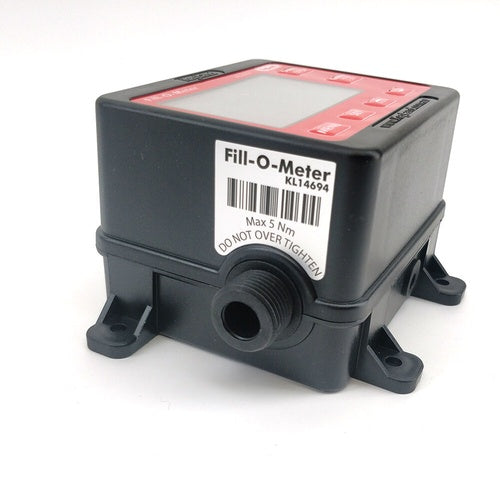

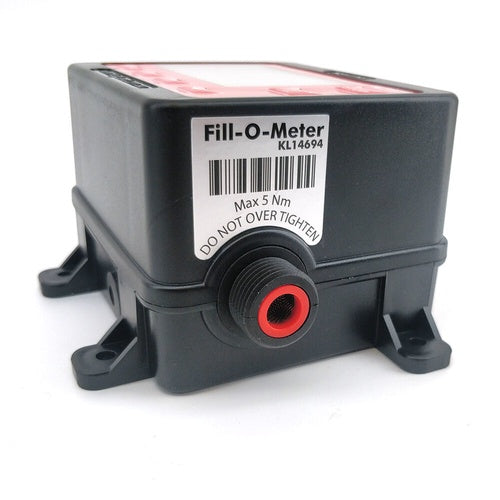

DO NOT overtighten fittings onto the 1/2" ports.
DO NOT exceed temperatures greater than 104°F (40°C) through the unit.

Specifications:
  • Flow Range: 1-30L per minute
  • Temperature Range: 32-104°F (0-40°C)
  • LCD: 3 inch back lit display
  • Housing Material: ABS
  • Input/Output threads: G1/2"
  • Pressure Rating: 0-12bar (0-180psi)
  • Accuracy: +/- 5%

Please Note: Accuracy can be improved with stable flow. Repeated start/stop or variation in water supply can have negative effect on accurac
