This Fenwal Hi-Limit/Safety Thermostat replaces Frymaster 806-0178. It cuts power if the appliance exceeds its safe operating temperature. Replacement is usually called for when you are seeing a unit that trips off under load, or one that will not restart after an overheat event.

Listed fitment covers 197 models across 1 brand, including Frymaster 35 Series, 3FQE30U, 3FQG30U. It also cross-references 87 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering.

Supplied as a single replacement unit.

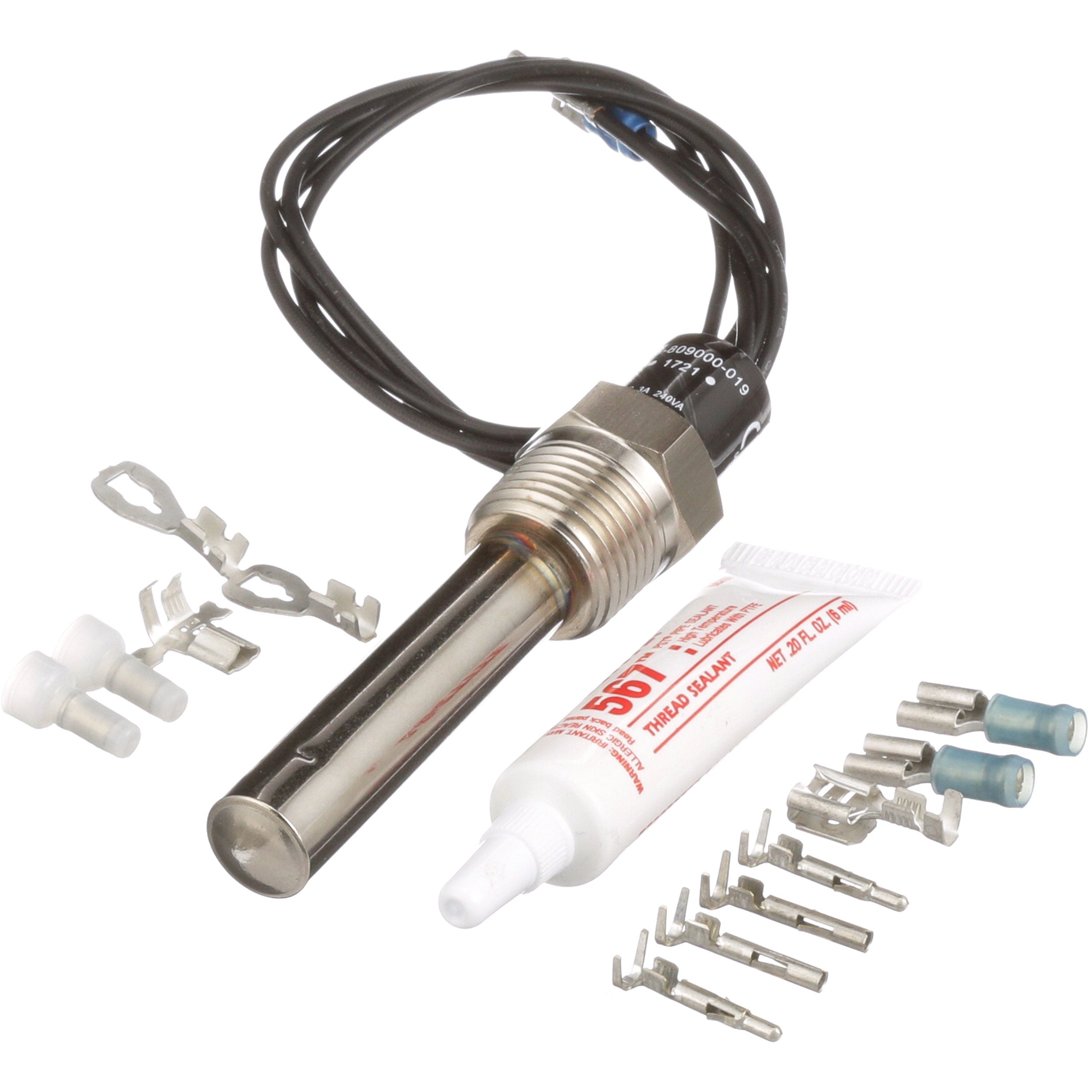

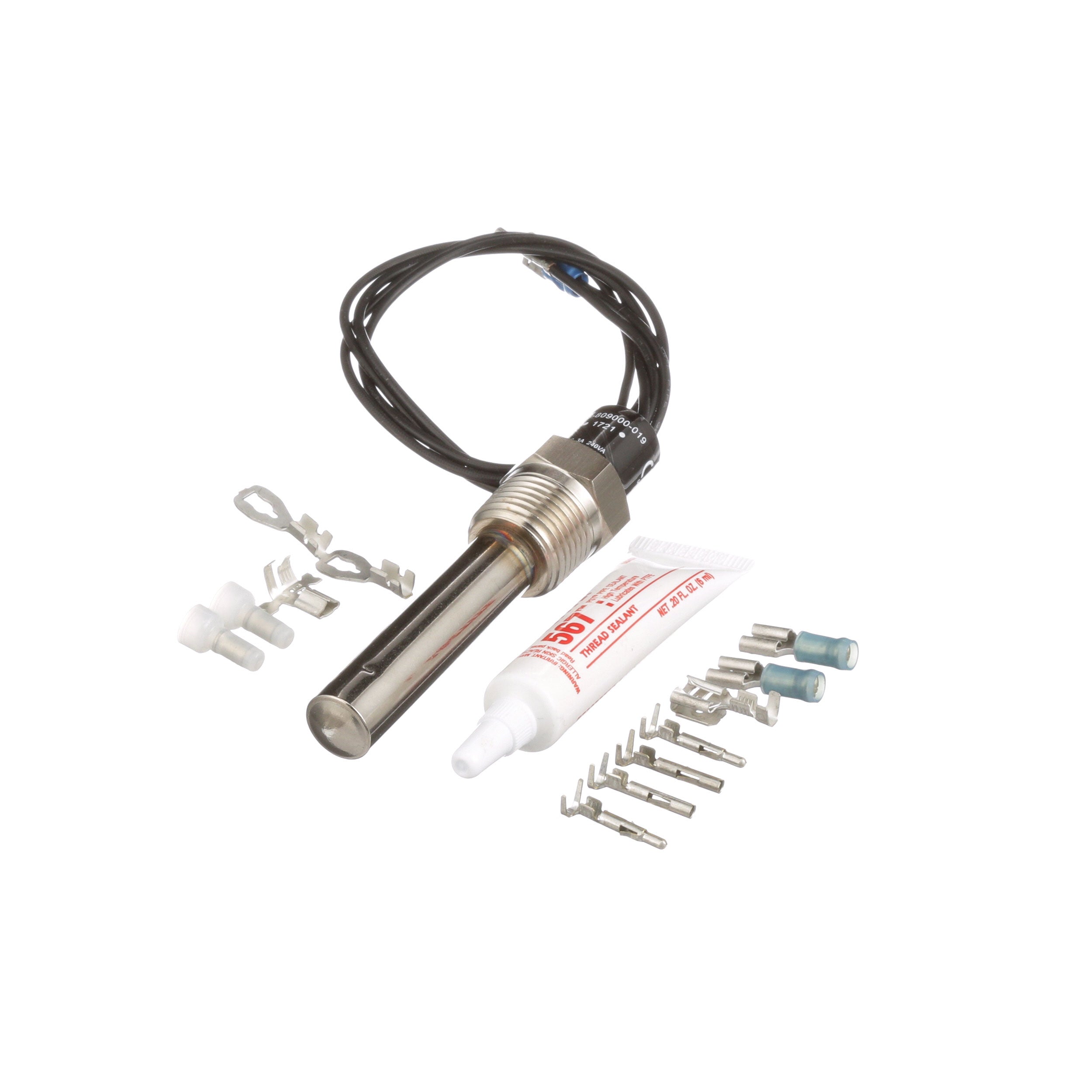

FENWAL HI-LIMIT KIT TEMP 425 FIXED BULB 2-1/4" SIZE 1/2" MPT KIT INCLUDEDS: HI-LIMIT T'STAT. ADP THERMOCOUPLE, SPLIT-PIN MALE TERMINALS, PIGGY-BACK TERMINALS, PUSH-ON TERMINALS, NYLON BOBTAIL TERMINALS, FEMALE DISCONNECT PINS, SPADE TERMINALS, PIN RECEPTACLE TERMINALS, LOCTITE 567 TUBE, INSTRUCTION SHEET. DOES NOT COME W/LEAD WIRE ADAPTER H-132A, . FRYMASTER FRYER BIMH-52, FH-50-SC, FPH-250-SD (2nd HIGH LIMIT), GF14, MAC(50,51,150,151,250,251,350,351 ALL 2nd HI-LIMIT), FM45 MACH52, MJ35, MJ45, MJ56, MJ235, SERIES: H50, MJH-(50,250) HI EFFECIENCY. MJCF/MJCFE, SERIES: FM35,BIPH14, BIRE14, FPH17, H14, H14 Naval, H14 Sub, H17, H17 Naval, H22, H22 Naval, MPH14, MRE14, NAVY SUBMARINE, PRO SERIES, RE14, RE17, RE22 IF NEEDED TO PROTECT WIRES USE: CAPILLARY INSULATION PER FOOT: L307, Z-127, ROBERTSHAW ACROFLEX INSULATION SLEEVING FITS BULBS UP TO 3/8" DIAMETER.

Listed fitment

• Frymaster: 35 Series, 3FQE30U, 3FQG30U, BIEL 14, BIELA14, BIELA14-T, BIGL30, BIGLA30, BIGLA30-T, BIH152, BIH252, BIH352, BIH452, BIH52, BIH552, BIMH14, BIMH52, BIPH, BIPH14, BIPH252/255, BIPH352/355, BIPH452/455, BIPH52/55, BIPH552, BIRE14, BK14TC, BK14TRC, BK17C, BK17RC, BK255C, BK255RC, BK3000C, BK355C, BK355RC, BK414TRC, BKFP214TC, BKFP214TRC, BKFP217C, BKFPx55xx, BKH55 and 157 more

Cross-reference

• Commercial Parts: F-126
• Dean: 806-0178, 806-0178SP, 806-0179, 806-0714, 806-0814, 806-3410, 806-3515, 806-5333, 806-7550, 8067550, 807-0095, 807-2274, 826-1177, 826-2454, 8261177, 8262454
• Franklin Chef: 148874
• Frymaster: 806-0178, 806-0178SP, 806-0179, 806-0714, 806-0814, 806-3410, 806-3515, 806-5333, 806-7543, 806-7550, 8060178, 8060178SP, 8060179, 8060714, 8060814, 8061853, 8063410, 8063515, 8065333, 8067541, 8067543, 8067546, 807-0095, 807-2274, 8070095, 8072274, 826-1177, 826-2454, 8261177, 8262454, FM-8261177ALT, FM-8262454ALT, FM806-0178, FM806-0178SP, FM806-0179, FM806-0714, FM806-0814, FM806-3410, FM806-3515, FM806-5333, FM806-7543, FM806-7550, FM8060178, FM8060178SP, FM8060179, FM8060714, FM8060814, FM8061853, FM8063410, FM8063515, FM8065333, FM8067541, FM8067543, FM8067546, FM8067550, FM807-0095, FM807-2274, FM8070095, FM8072274, FM826-1177, FM826-2454, FM8261177, FM8261177ALT, FM8262454, FM8262454ALT
• Garland: 1292800, F826-1177, GL1292800
• Grainger: 3357613

Ordering by part number is the most reliable way to get the right part.
