EWC® HVAC Damper 20" x 10" 24V Zone Aluminum 20X10 ND
EWC® HVAC Damper 20" x 10" 24V Zone Aluminum 20X10 ND
- 20" x 10" hvac damper
- Aluminum construction
- 24V operation
- UL Listed and UL Recognized
- Genuine EWC part 20X10 ND
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

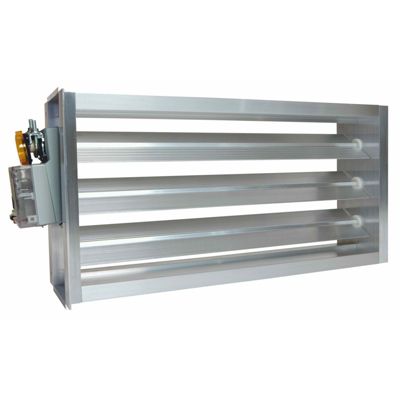

The EWC® 20X10 ND is a 20" x 10" hvac damper for zoned heating and cooling control. EWC®- 20X10 ND - 20" x 10" Motorized Damper
Specifications
| Size | 20" x 10" |
| Composition | Aluminum |
| Voltage | 24 VAC |
| Amps | 1.5 |
| Maximum Temperature | 185°F (85°C) |
| Heat Pump Compatible | Yes |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | USA |
| Cycle/Hertz | 50/60 Hz |
| Damper Type | Zone |
| Emergency Heat Switch | No |
| Network Zoning | Yes |
| Phase | Single |
| Shape | Rectangle |
| Ambient Temperature Range | -20°F to 160°F (-28.89°C to 71.11°C) |
| Mounting Type | Face plate |
EWC® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
