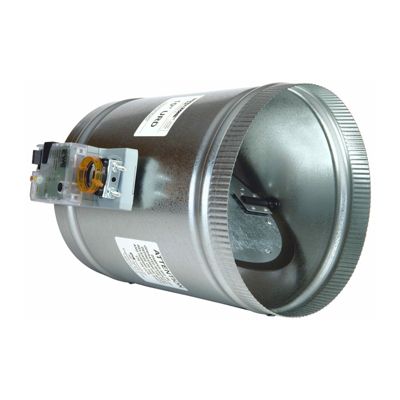

EWC® HVAC Damper 12" Diameter 24V Zone Steel 14 URD
$26232
EWC® HVAC Damper 12" Diameter 24V Zone Steel 14 URD
EWC® HVAC Damper 12" Diameter 24V Zone Steel 14 URD
In stock
$26232
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- 12" hvac damper
- Steel construction
- 24V operation
- UL Listed and UL Recognized
- Genuine EWC part 14 URD
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
EWC® 14 URD is a 12" Diameter hvac damper for zoned heating and cooling control. The specifications below are the manufacturer's published figures for this exact part number — confirm size and connection type against your run before ordering.
Specifications
| Size | 12" Diameter |
| Composition | Steel |
| Voltage | 24 VAC |
| Amps | 1.5 |
| Maximum Temperature | 185°F (85°C) |
| Heat Pump Compatible | Yes |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | USA |
| Cycle/Hertz | 50/60 Hz |
| Damper Type | Zone |
| Emergency Heat Switch | No |
| Network Zoning | Yes |
| Phase | Single |
| Shape | Round |
| Ambient Temperature Range | -20°F to 160°F (-28.89°C to 71.11°C) |
| Mounting Type | Crimped edge |
Ordering by part number is the fastest way to get the right fitting. If you are matching an existing component, compare the connection type and nominal size in the table rather than the description.
