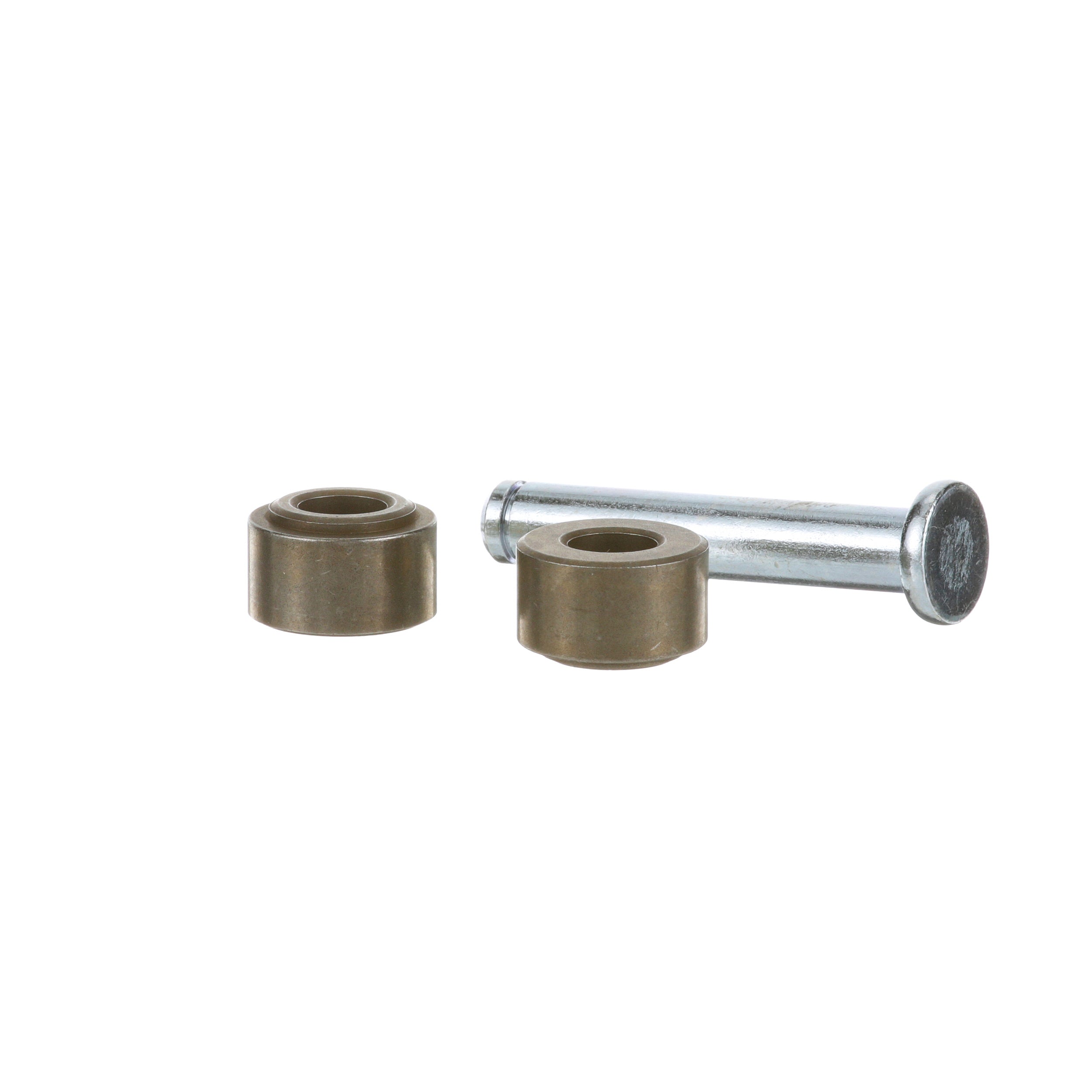

Eliason Doors Roller Hinge Assembly - K0136

Eliason Doors Roller Hinge Assembly - K0136
- Length: 2-1/4" PIN, 57 MM PIN (4)LOCK NUTS,(4)FLATHEAD BOLTS,(2)EXPANSION BOLTS,(2)BOLTS
- Weight: 0.17 LB
- Width: 1/2" ROLLERS, 13 MM ROLLERS
- Genuine Eliason Doors part K0136
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Eliason Doors K0136 is a Roller Hinge Assembly. It carries the door and returns it to the closed position. Replacement is usually called for when you are seeing doors that sag, will not self-close, or will not seal against the gasket.
It also cross-references 1 manufacturer part number. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Specifications

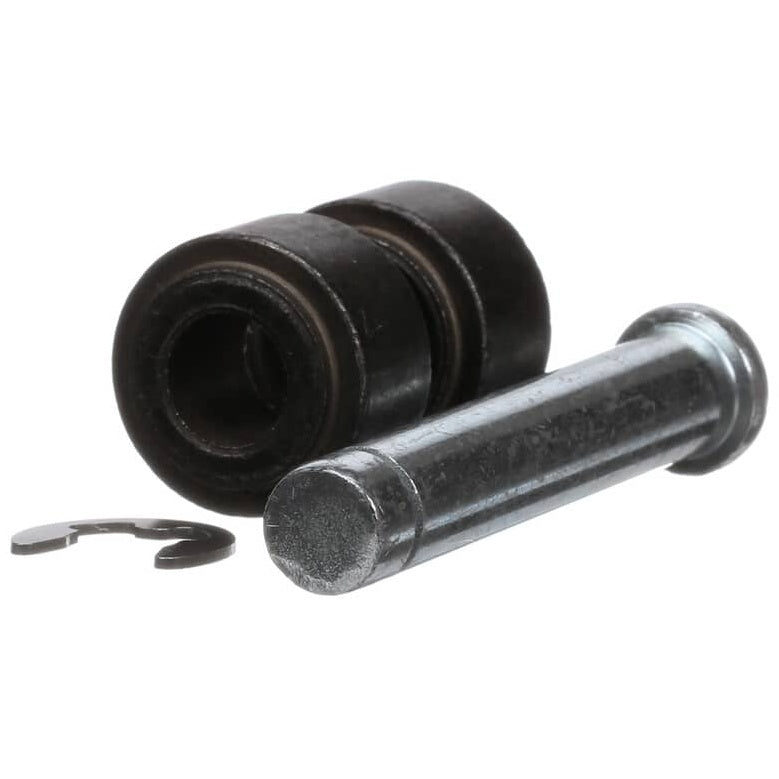

| Includes | (2)ROLLERS,(1)FLAT HEAD AXLE,(1)"E"CLIP |
| Inside Diameter | 3/8" ROLLERS, 10 MM |
| Length | 2-1/4" PIN, 57 MM PIN (4)LOCK NUTS,(4)FLATHEAD BOLTS,(2)EXPANSION BOLTS,(2)BOLTS |
| Outside Diameter | 3/8" PIN, 7/8" ROLLERS, 10 MM PIN, 22 MM ROLLERS |
| Weight | 0.17 LB |
| Width | 1/2" ROLLERS, 13 MM ROLLERS |
Cross-reference
- Eliason Doors: K0136
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
