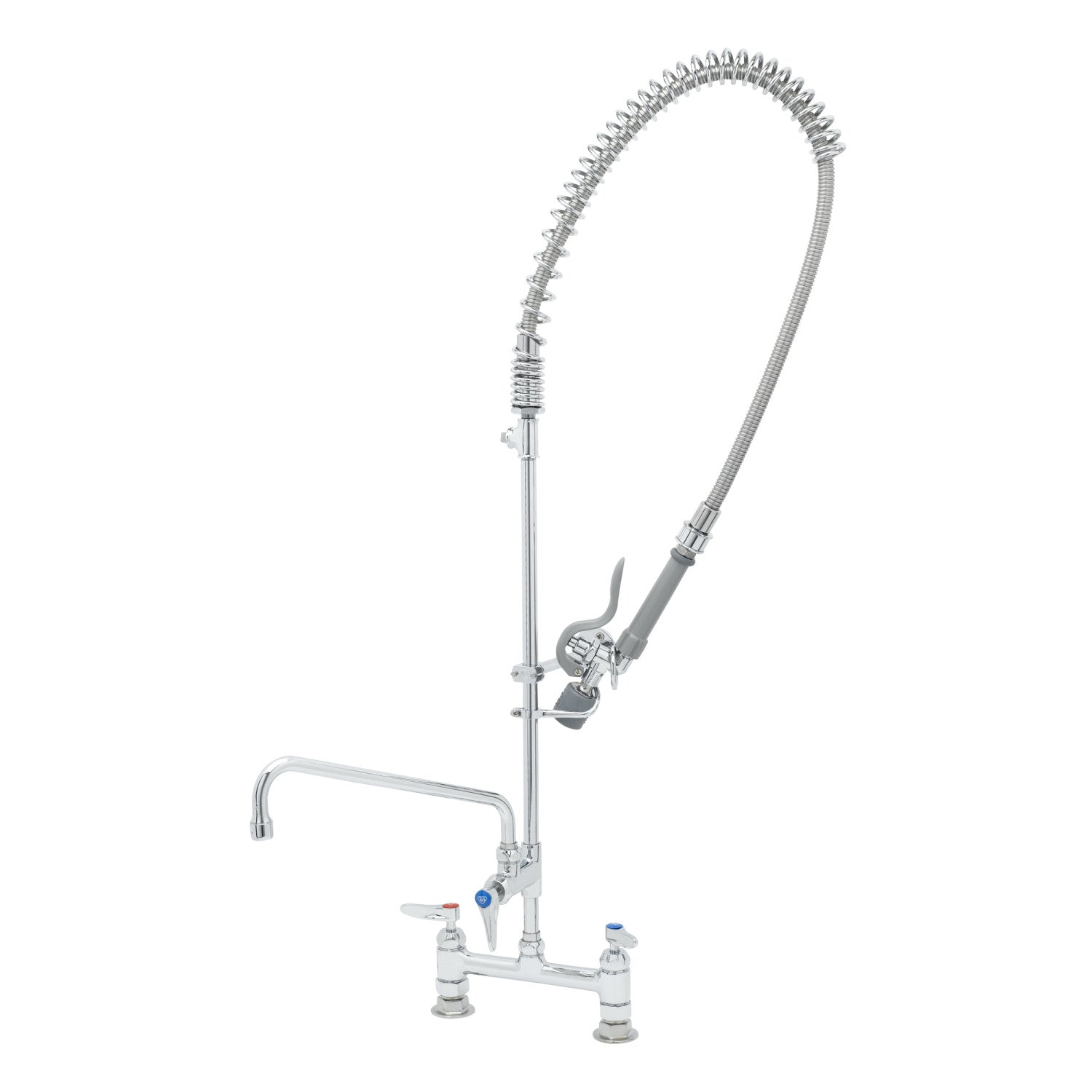

T&S EasyInstall Pre-Rinse, 8" Deck Mount Base, Ceramas, ADF 12" Nozzle, B-0107-J-SWV, Tee

8" deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainless steel hose with heat resistant handle and swivel, 1.07 GPM spray valve, ceramic cartridges with check valves, lever handles, accessory fitting tee, 1/2" NPT female inlets, 6" adjustable wall bracket,spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.

• Body: 8 in Centers (203.2 mm)
• Body Mount: Deck
• Cartridge-Spindle: Ceramic
• Feature: 6 in Wall Bracket (152.4 mm)
• Feature: Check Valve
• Feature: Spray Valve Swivel
• Feature: Tee Fitting
• Handle: Lever
• Inlet: 1/2 in NPT Female
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: 12 in (304.8 mm)
• Nozzle: Add-On Nozzle
• Nozzle: Nozzle
• Nozzle: Swivel
• Nozzle Flow: 5.35 GPM (20.25 L/min)
• Nozzle Outlet Type: Laminar Flow Device
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Spray Valve: B-0107-J (1.07 GPM) (4.05 L/min)
• Spray Valve Flow: 1.07 GPM (4.05 L/min)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
