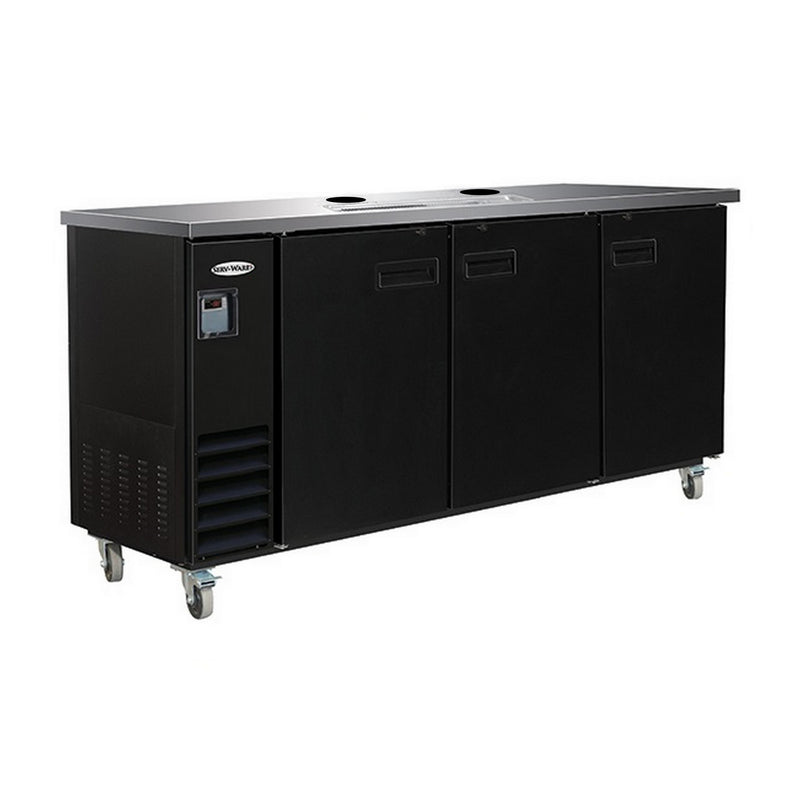

Serv-Ware 73" 2-Tap Direct Draw Kegerator, 3-Kegs Commercial Keg Cooler
Serv-Ware 73" 2-Tap Direct Draw Kegerator, 3-Kegs Commercial Keg Cooler
- Keg capacity: Holds 3 half-barrel kegs (or up to 6 sixtels)
- Exterior: 73" W × 28" D × 36" H — under-bar, under-counter, or free-standing
- 2 pre-drilled tower holes on the stainless top — tower, faucet(s), and drip tray sold separately
- Forced-air cooling keeps draft beer at 36–40°F; insulated stainless cabinet
- Self-closing, lockable door(s) with field-reversible hinges
- NSF & UL certified; 115V / 60Hz / 1-phase; R-290 refrigerant
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Serv-Ware DD73-2-HC is a 73" direct draw kegerator — a commercial under-bar keg refrigerator built for bars, restaurants, and taprooms that need clean, short draft lines to a top-mounted tower. It holds up to 3 half-barrel kegs (or up to 6 sixtels) and ships with 2 pre-drilled tower holes on the stainless top — you choose the tower, faucet count, and drip tray to match your bar's layout.
Specifications
- Width: 73"
- Depth: 28"
- Height: 36" (bar-counter compatible, under-bar ready)
- Keg capacity: 3 half-barrel kegs or up to 6 sixtels
- Tower openings: 2 pre-drilled holes on stainless top
- Doors: Self-closing, lockable, field-reversible hinges
- Refrigeration: Forced-air, bottom-mount, self-contained
- Temperature range: 36–40°F (draft-beer optimal)
- Electrical: 115V / 60Hz / 1-phase, NEMA 5-15P plug
- Refrigerant: R-290 (hydrocarbon, EPA-compliant)
- Exterior: Stainless steel front and top, galvanized sides
- Interior: Epoxy-coated floor, keg rails included
- Certifications: NSF, UL
- Ships without: Tower, faucets, couplers, drip tray, CO2 regulator (order separately)
Why direct draw over a remote system
A direct draw setup keeps the beer line short — usually under 5 feet from keg to faucet — which means simpler system balancing, less foaming, no glycol chiller required, and far lower install cost than a long-draw or remote system. For bars pouring under ~10 kegs a week per tap, direct draw is the right architecture. The Serv-Ware 73" cabinet is sized so a 3-keg lineup fits with room to work the couplers, and the 2-holes top gives you flexibility on tower placement.
Install notes for techs
Standard North American Sankey (D-system) couplers fit domestic half-barrels and sixtels. Tower shanks typically use 3" or 3-1/8" hole spacing — confirm against your tower's base plate before ordering. Air-cooled direct-draw towers are recommended for runs under 18" to the faucet; for taller or insulated towers, plan on a tower cooling fan to prevent first-pour foam. CO2 regulator pressure is usually set at 10–14 PSI depending on beer style and line length. Bottom-mount compressor, front-breathing — flush install OK on sides and rear.
Covered by a 2-year parts and labor warranty plus a 5-year compressor warranty. Ships freight from our warehouse — order by 2 PM CT for same-day handling.
