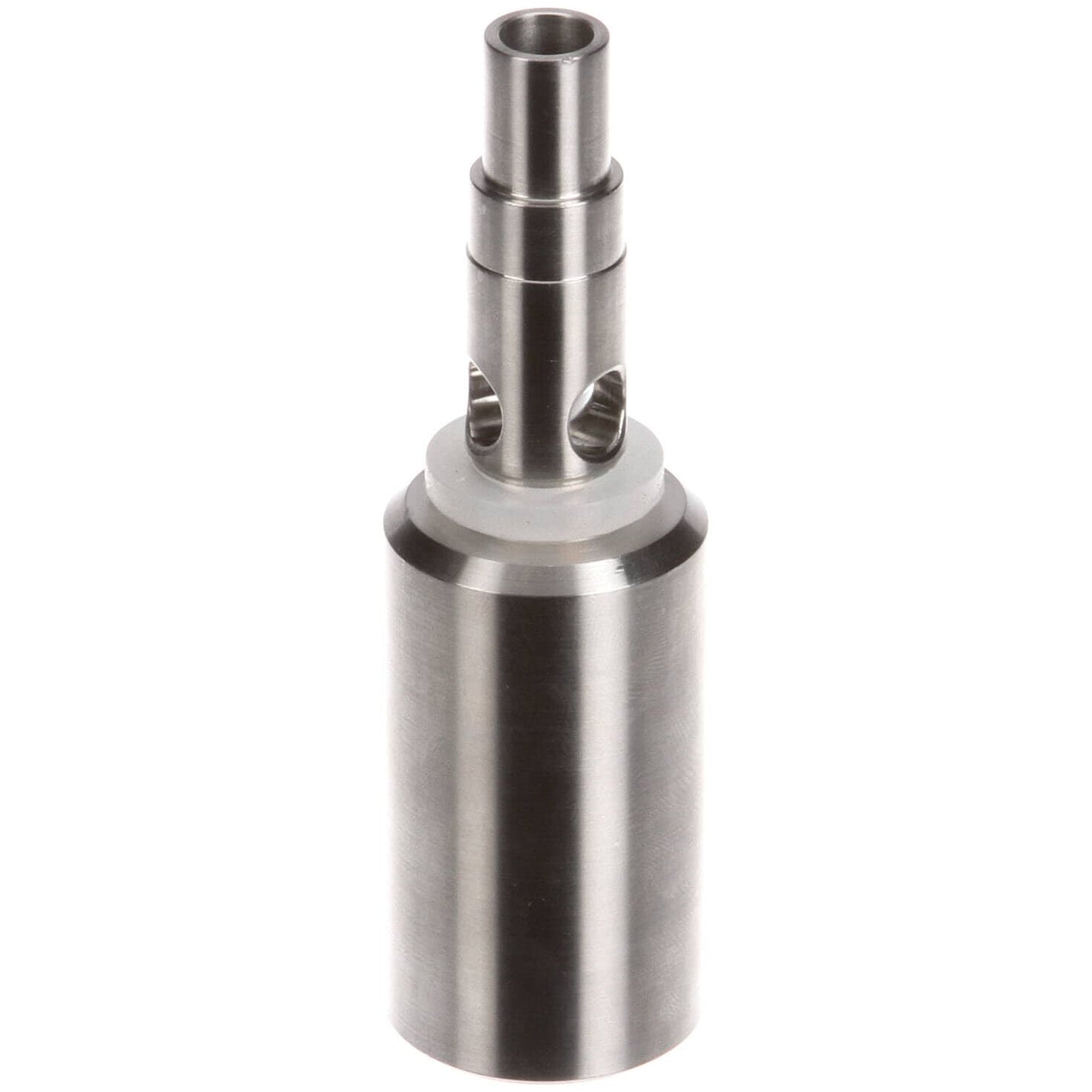

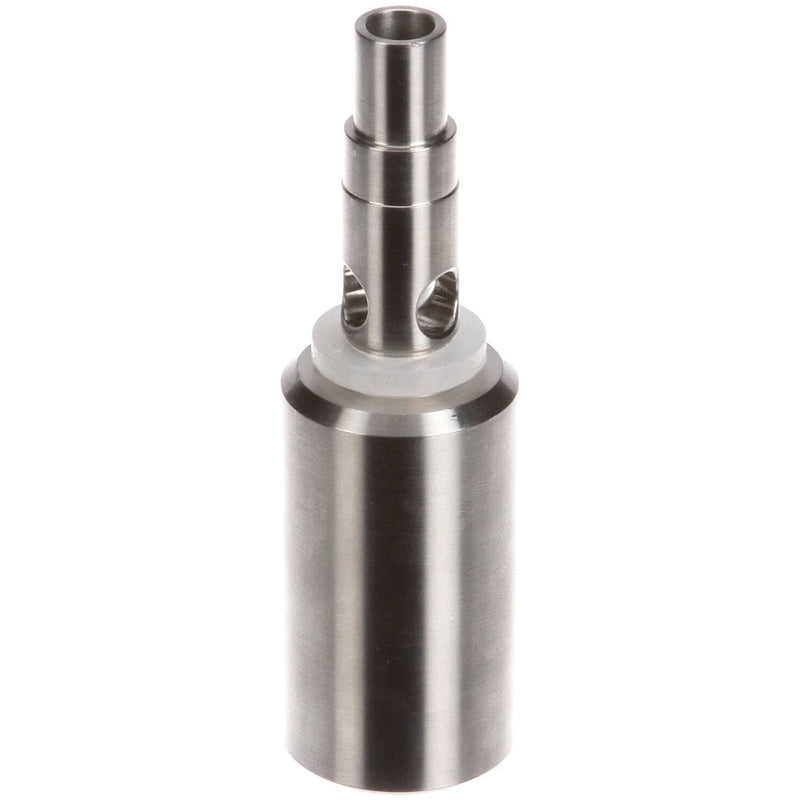

Crathco Dispense Valve for Grindmaster (CS-2E-16, CS-3L-16) - 99464
Crathco Dispense Valve for Grindmaster (CS-2E-16, CS-3L-16) - 99464
- Listed fitment: 7 models across 1 brand
- Material: STAINLESS STEEL
- Length: 3 3/4" 95 mm
- Inner Diameter: 5/16" TOP AND CENTER 8 mm TOP AND CENTER
- Outer Diameter: 1 1/8" 29 mm
All compatible models
7 modelsVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Crathco 99464 is a Dispense Valve. It controls flow through the circuit. Replacement is usually called for when you are seeing no flow, flow that will not stop, or pressure that will not hold.
Listed fitment covers 7 models across 1 brand, including Grindmaster C-15-16, C-2D-16, C-2S-16. It also cross-references 4 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Specifications
| Material | STAINLESS STEEL |
| Length | 3 3/4" 95 mm |
| Inner Diameter | 5/16" TOP AND CENTER 8 mm TOP AND CENTER |
| Outer Diameter | 1 1/8" 29 mm |
| Includes | SILICONE SEAL RING |
Listed fitment
- Grindmaster: C-15-16, C-2D-16, C-2S-16, C-3D-16, C-4D-16, CS-2E-16, CS-3L-16
Cross-reference
- Cecilware: 99464
- Grindmaster: 99302, 99310, 99464
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
