Micro Matic CP-0814-4 Stainless Steel Cold Plate - 8" x 14", 4-Circuit Beverage Chiller
Micro Matic CP-0814-4 Stainless Steel Cold Plate - 8" x 14", 4-Circuit Beverage Chiller
- High-Speed Flash Chilling: The Micro Matic CP-0814-4 rapidly cools 4 separate beverages from ambient temperature to ice-cold in seconds.
- 4-Circuit Versatility: Features four independent stainless steel lines, perfect for high-volume multi-tap jockey boxes.
- Heavy-Duty Stainless Steel: Built with 304 stainless steel tubing for maximum sanitation and compatibility with beer, wine, and cider.
- Compact & Portable: The 8" x 14" footprint fits perfectly into standard coolers for festivals, catering, and outdoor events.
- Optimized Heat Exchange: Cast in solid aluminum to provide the best thermal conductivity and consistent drink temperatures.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

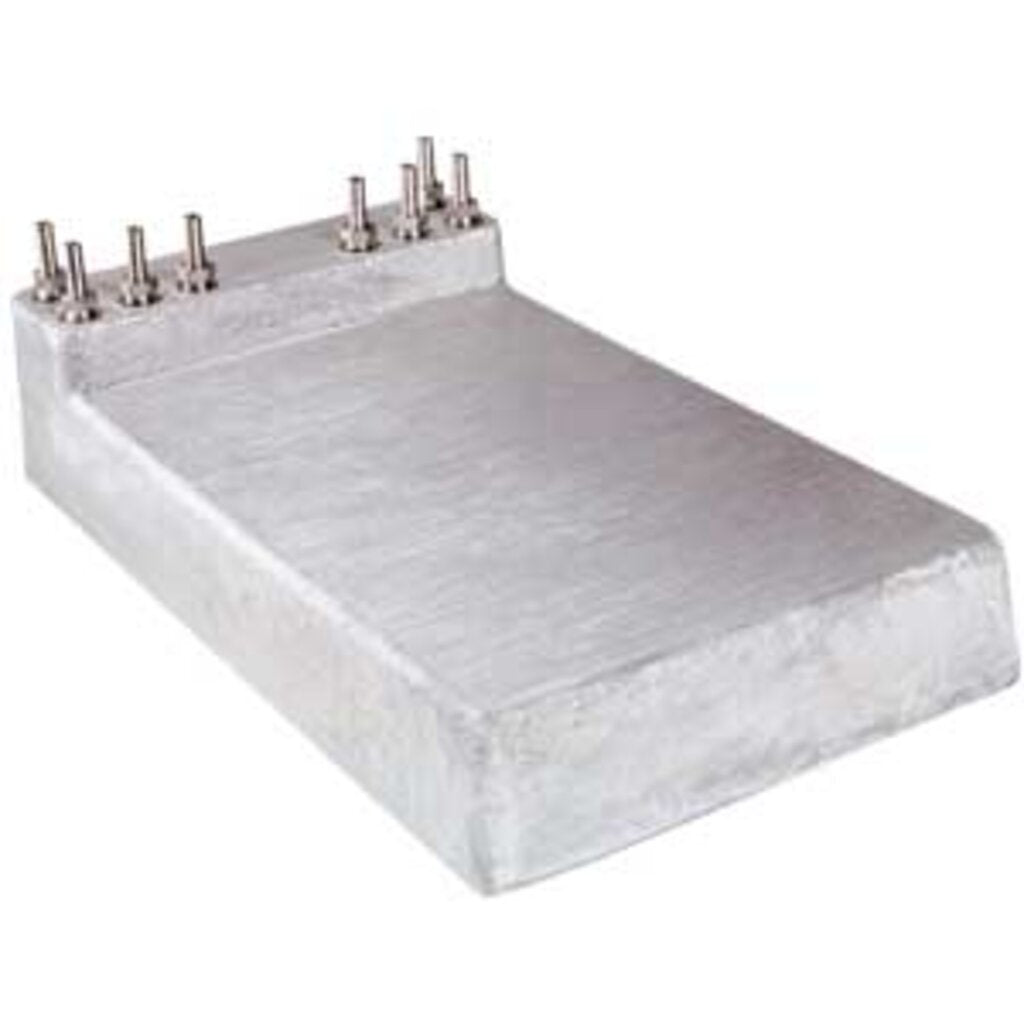

The Micro Matic CP-0814-4 is a high-efficiency, 4-circuit cold plate designed to deliver ice-cold beverages in jockey boxes and portable dispensing systems. Measuring 8" x 14", this compact powerhouse is constructed from high-quality stainless steel beverage lines cast into a solid aluminum block. The aluminum acts as a superior thermal conductor, rapidly transferring the cold from the surrounding ice to the beverage lines. With four independent circuits, this plate allows you to chill four different products—such as beer, soda, or water—simultaneously. Whether you are setting up for a festival, a stadium event, or a mobile bar, the CP-0814-4 ensures your drinks are served at the perfect temperature even during high-volume periods.
- Model Number: CP-0814-4
- Circuit Count: 4 Independent Circuits (Dispense 4 beverages at once)
- Dimensions: 8" W x 14" L x 1" H
- Inlet/Outlet: Compatible w/ 1/4" O.D. Stainless Steel tubing with 1/4" barb fittings
- Material: 304 Stainless Steel product lines cast in high-grade Aluminum
- Thermal Performance: Designed for "flash chilling" beverages from ambient to serving temperature
- Durability: Rugged, heavy-duty construction built to withstand commercial mobile use
- Application: Ideal for jockey boxes, temporary events, and outdoor beverage service
